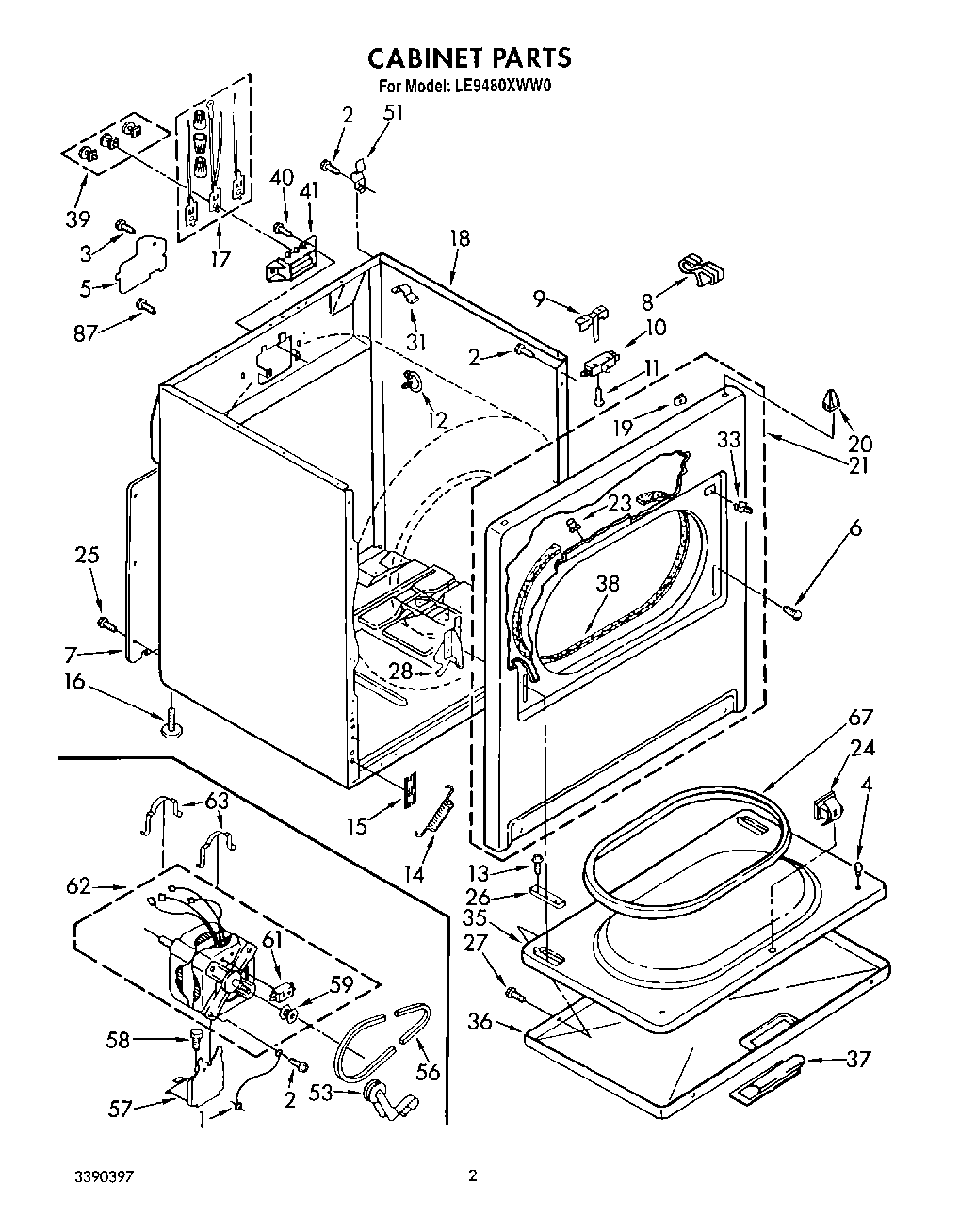

LE9480XWN0 02 – SECTION

Products

Position	Product
1	Wire, Ground (Motor)
2	SCREW
3	WP693995 Whirlpool Screw
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
8	Clip, Retainer
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	Clamp, Harness
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	Cabinet (White)
18	Cabinet (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front (Almond)
21	279443 Whirlpool Primary Panel
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	WP489069 Whirlpool Compactor Screw
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
31	8528351 Whirlpool Clip
35	WP695737 Whirlpool Door
36	Door, Front (Almond)
36	WP3393549 Whirlpool Door Assembly
37	Handle, Door (Almond)
37	WP348721 Whirlpool Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	WP308685 Whirlpool Microwave Screw
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	W10906683 Whirlpool Door Seal
87	W10850756 Whirlpool Screw
