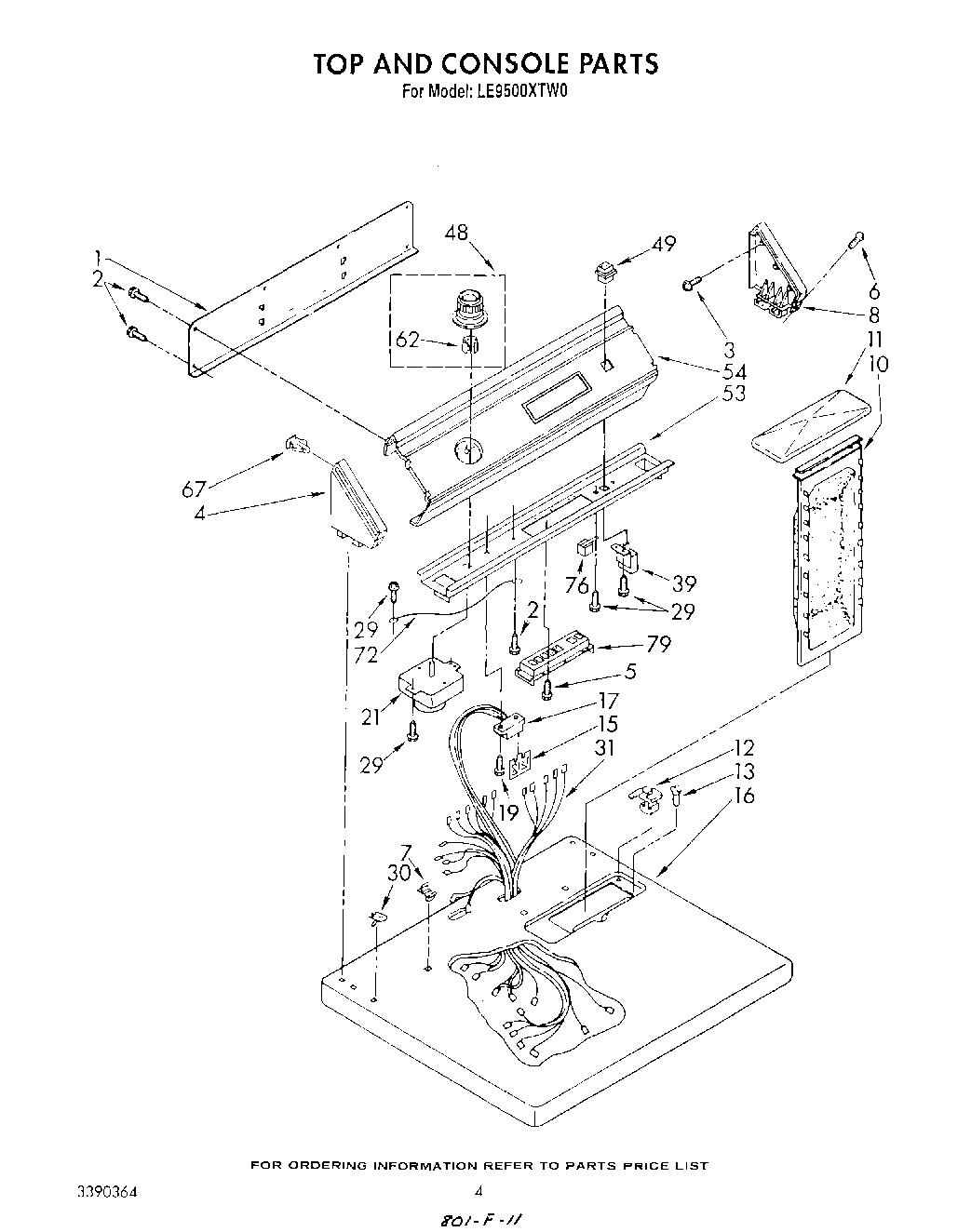

LE9500XTG0 03 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Guide, Dryer
	WPL LIT3391346
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL LIT3390364
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Instructions, Installation
	799344 Whirlpool Refrigerator Paint
1	Panel, Rear
3	WPL 355326
4	Cap, End (L.H.)
5	WP273556 Whirlpool Screw
6	WPL 64211
7	Stop, Push-In Top
8	WPL 63795
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	Control, Electronic
16	Top (Almond)
16	Top (Golden Harvest)
16	Top (Toast)
16	Top (Platinum)
16	Top (White)
17	Connector
21	Timer, 60Hz.
29	SCREW
30	Nut, Push-In (2)
31	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
49	Knob, Push To Start
53	Bracket, Control
54	Panel, Control
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
72	Wire, Ground
76	WP694419 Whirlpool Buzzer Adjuster
79	Switch, Clean-Touch
