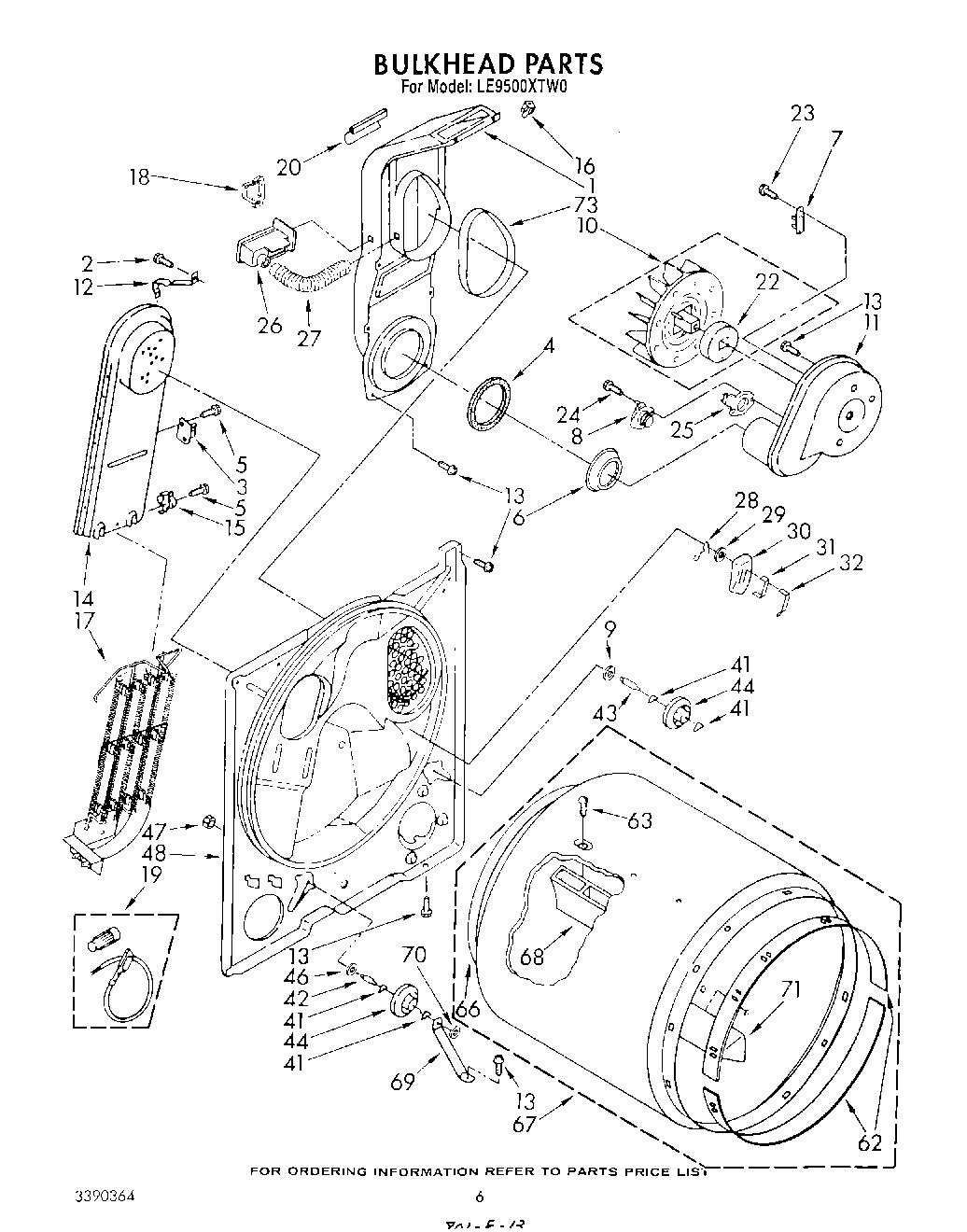

LE9500XTW0 04 – SECTION

LE9500XTW0 04 – SECTION

Written by

in

LE9500XTW0 04 – SECTION

Products

PositionProduct
1Lint Chute Assembly
3279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP694674 Whirlpool Cycling Thermostat
9WP3388703 Whirlpool Washer
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
1698460 Whirlpool Nut
17WP4391960 Whirlpool Dryer Heating Element
18Clip, Harness (Rear Bulkhead Area)
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20686770 Whirlpool Support Bracket
22Seal, Blower
23WP965173 Whirlpool Dishwasher Screw
24WP488729 Whirlpool Refrigerator Door Screw
25Heater, Thermostat
26Alert, Lint
27Hose, Differential
28WP342267 Whirlpool Clip
29WP298877 Whirlpool Washer
30SENSOR KIT
31WP348859 Whirlpool Electrode Assembly
32WP348860 Whirlpool Electrode
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP358160 Whirlpool Nut
48Bulkhead
62279441 Whirlpool Front Bearing Ring
63Screw, 11-16 x 7/8
66279408 Whirlpool Dryer Rear Drum Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
