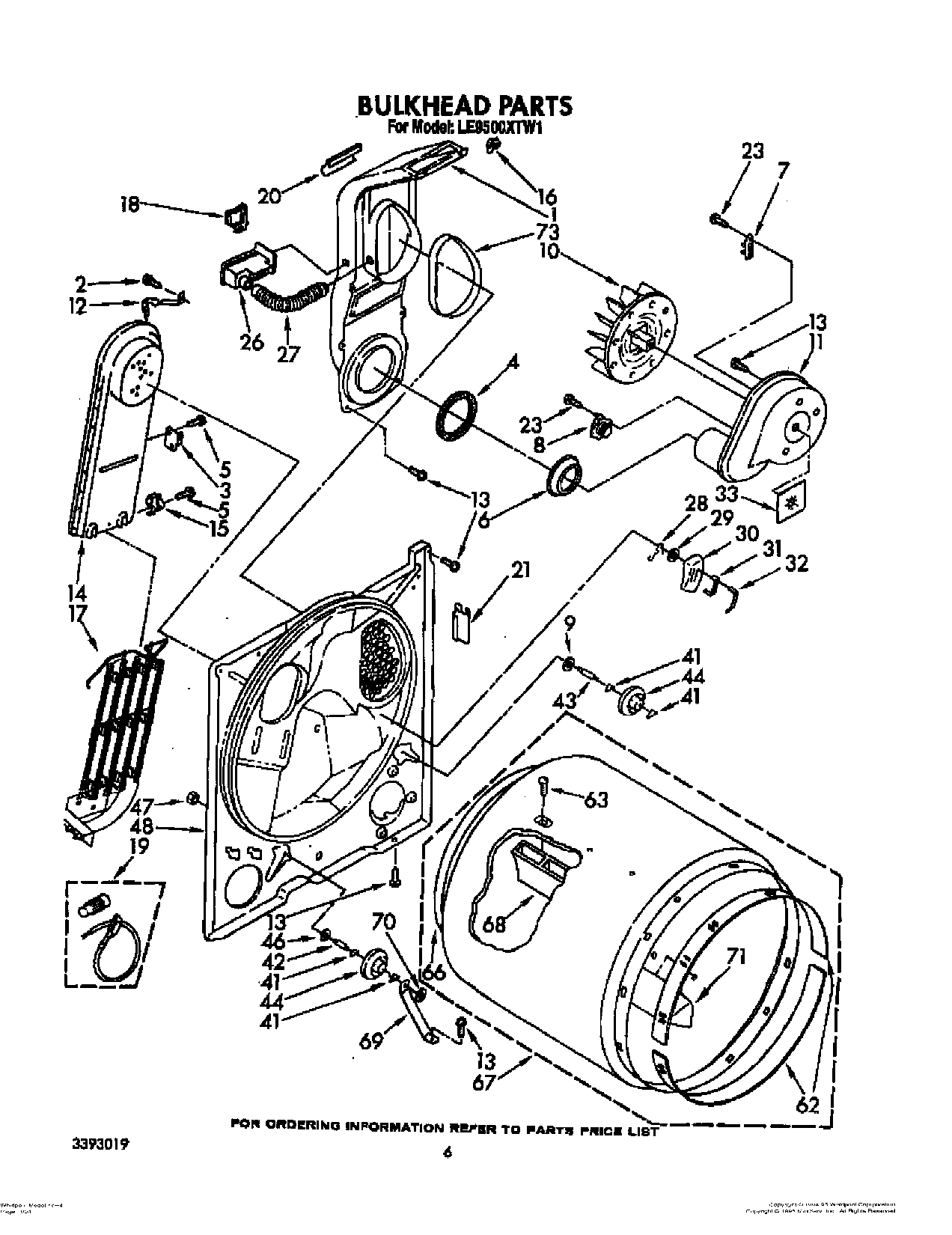

LE9500XTW1 04 – BULKHEAD PARTS

Products

Position	Product
1	Lint Chute Assembly
3	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	WP3388703 Whirlpool Washer
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	WP3390291 Whirlpool High Limit Thermostat
16	98460 Whirlpool Nut
17	WP4391960 Whirlpool Dryer Heating Element
18	Clip, Harness (Rear Bulkhead Area)
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	686770 Whirlpool Support Bracket
21	686889 Whirlpool Pad
23	WP965173 Whirlpool Dishwasher Screw
26	Alert, Lint
27	Hose, Differential
28	WP342267 Whirlpool Clip
29	WP298877 Whirlpool Washer
30	SENSOR KIT
31	WP348859 Whirlpool Electrode Assembly
32	WP348860 Whirlpool Electrode
33	Seal, Blower
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	Bulkhead
62	279441 Whirlpool Front Bearing Ring
63	Screw, 11-16 x 7/8
66	279408 Whirlpool Dryer Rear Drum Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	W11684613 Whirlpool Bracket
70	WP90296 Whirlpool Clip
71	WP3403636 Whirlpool Drum Baffle
73	SEAL
