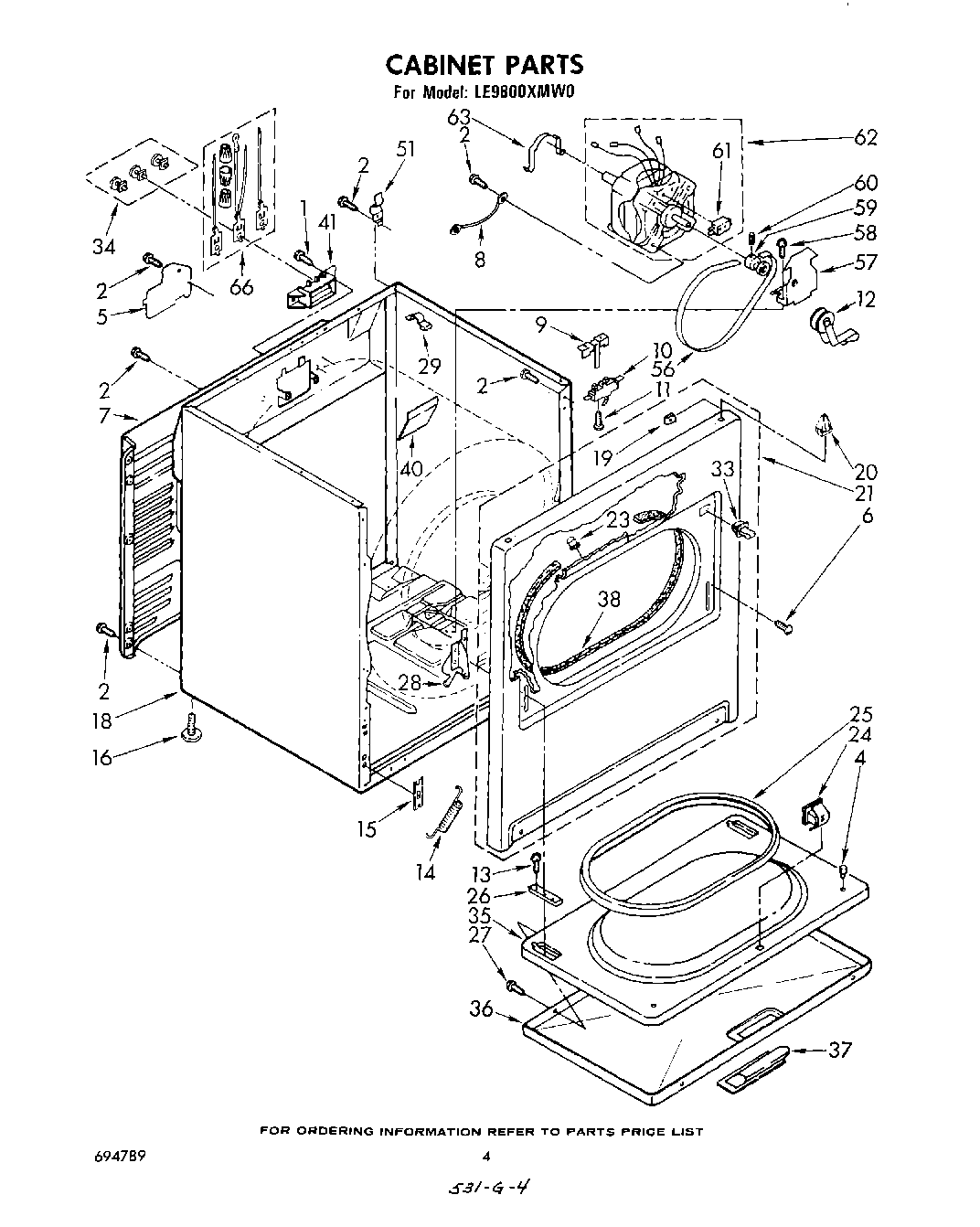

LE9800XMW0 03 – SECTION

Products

Position	Product
2	SCREW
4	238614 Whirlpool Bumper Hinge
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
8	Wire, Ground (Motor)
9	WP691581 Whirlpool Actuator
10	Switch, Door
11	WP98129 Whirlpool Screw
12	WP691366 Whirlpool Dryer Idler Pulley Assembly
13	WP308685 Whirlpool Microwave Screw
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
18	Cabinet (Platinum)
18	Cabinet (Harvest Wheat)
18	Cabinet (Almond)
18	cabinet (toast)
18	Cabinet (White)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	279443 Whirlpool Primary Panel
21	Panel, Front (Almond)
21	Panel, Front (Golden Harvest)
21	Panel, Front (Platinum)
21	Panel, Front (Toast)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	8528351 Whirlpool Clip
34	279393 Whirlpool Terminal Block Screw and Nut Kit
35	WP695737 Whirlpool Door
36	Door, Front (Platinum)
36	WP3393549 Whirlpool Door Assembly
36	door, front (harvest wheat)
36	Door, Front (Almond)
36	door, front (toast)
37	Handle (Golden Harvest)
37	WPL 695017
37	Handle (Almond)
37	WP348721 Whirlpool Handle
37	WPL 695016
38	W11035878 Whirlpool Bearing and Seal
40	Shield, Light
41	279320 Whirlpool Dryer Rear Terminal Block Kit
51	WP8066217 Whirlpool Hinge
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WPL 348946
60	SCREW, SET
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
