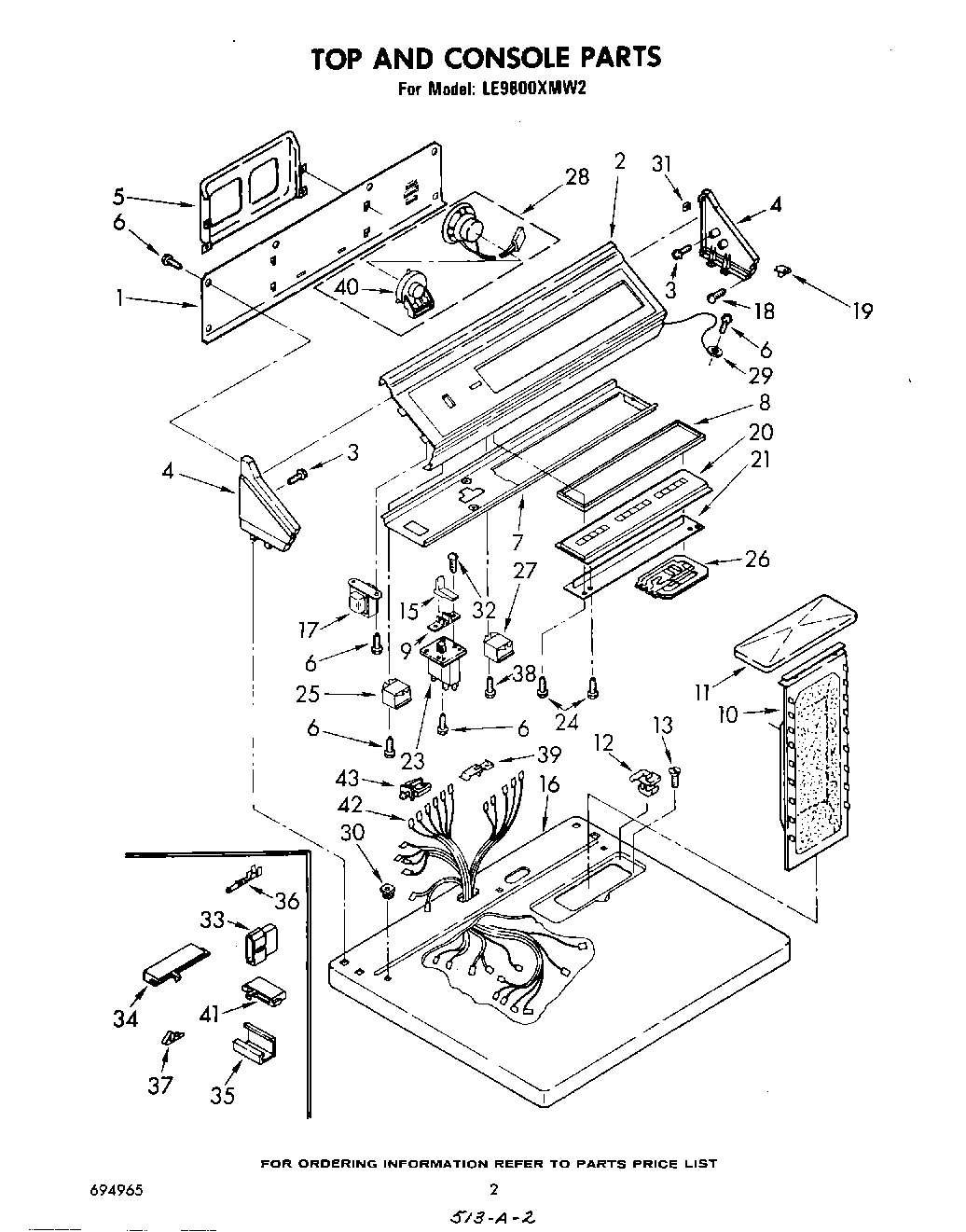

LE9800XMW2 02 – SECTION

LE9800XMW2 02 – SECTION

Written by

in

LE9800XMW2 02 – SECTION

Products

Position	Product
	Golden Harvest (Uncut)
	WPL 799351
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
1	Panel, Rear Console
2	Panel, Control
3	WPL 355326
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End L.H. (Toast)
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (Platinum)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Toast)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Platinum Cap, End (R.H.))
5	Rack, Literature
6	SCREW
7	Bracket, Control
8	Trim, Frame
9	Pivot, Lever
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	Lever
16	top (white)
16	Top (Almond)
16	Top (Golden Harvest)
16	Top (Toast)
16	Top (Platinum)
17	Transformer
18	Screw, 8-18 x 1 (2)
19	Stop, Push-In Top
20	Module, Touch
21	Display Assembly
23	Relay, Start-To-Stop
24	Screw, 8-18 x 1/2 (6)
25	Power Relay (2)
26	Microcomputer Assembly
27	Power Relay (2)
28	Speaker & Housing
29	Wire, Ground
30	Nut, Push-In (2)
31	Clip (4)
32	WPW10068250 Whirlpool Dishwasher Screw
33	Plug
34	WPL 60447
35	WPL 60719
36	WP94614 Whirlpool Terminal
36	WP596797 Whirlpool Terminal
37	Terminal
38	CamAlso Available (12-Pin (15 Min.))
39	Clip, Wire (Tech Sheet/Top)
40	WPL 359188
41	WPL 60671
42	Harness, Electric
43	Instructions, Installation
43	WPL 691269
43	WPL 694965
43	WPL 694124
43	350938 Whirlpool Spray Gun
43	WPL 72112
43	Paint, Spray (13 Oz.) (Platinum)
43	Toast
43	350930 Whirlpool White Spray Paint
43	Golden Harvest
43	72113 Whirlpool Touch-Up Paint
43	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
43	WPL 693849
43	Leveler (Thinner)
43	WP72107 Whirlpool Touchup
43	72017 Whirlpool Appliance Touch-Up Paint White
43	350956 Whirlpool Spray Assembly
43	Clip, Harness (Rear Bulkhead Area)
