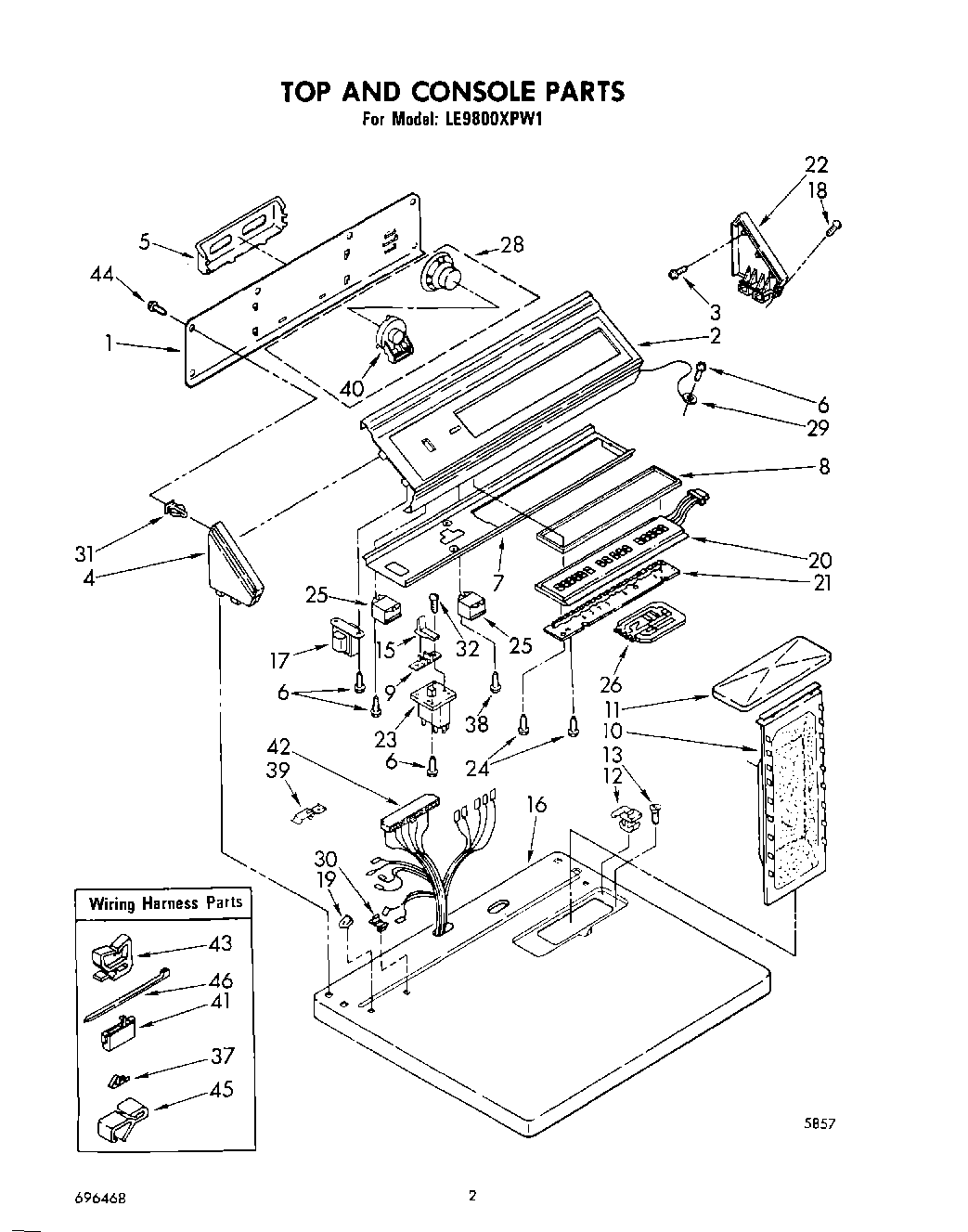

LE9800XPF1 02 – TOP AND CONSOLE, LIT/OPTIONAL

LE9800XPF1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LE9800XPF1 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
WPL LIT691555
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT696468
WPL LIT677967
Washer (Belt Drive)
Guide, Dryer
WPL LIT693686
WPL LIT696234
72113 Whirlpool Touch-Up Paint
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Dryer
350956 Whirlpool Spray Assembly
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
Leveler (Thinner)
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.)
5Rack, Literature
6SCREW
7Bracket, Control
8Trim, Frame
9Pivot, Lever
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Lever
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
16Top (White)
17Transformer
18WPL 64211
19Nut, Push-In (2)
20Module, Touch
21Display Assembly
22WPL 63795
23Relay, Start-To-Stop
24Screw, 8-18 x 1/2 (6)
25Power Relay (2)
26Microcomputer Assembly
28Speaker & Housing
29Wire, Ground
30Stop, Push-In Top
31WP689559 Whirlpool Nut
32WPW10068250 Whirlpool Dishwasher Screw
37Terminal
38WP90767 Whirlpool Screw
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
41Connector
42Harness, Electric
43Clip, Harness (Rear Bulkhead Area)
44WP489069 Whirlpool Compactor Screw
45Clip, Retainer
46WPW10339879 Whirlpool Wire Tie
