LE9800XPW0 02 – SECTION

LE9800XPW0 02 – SECTION

Written by

in

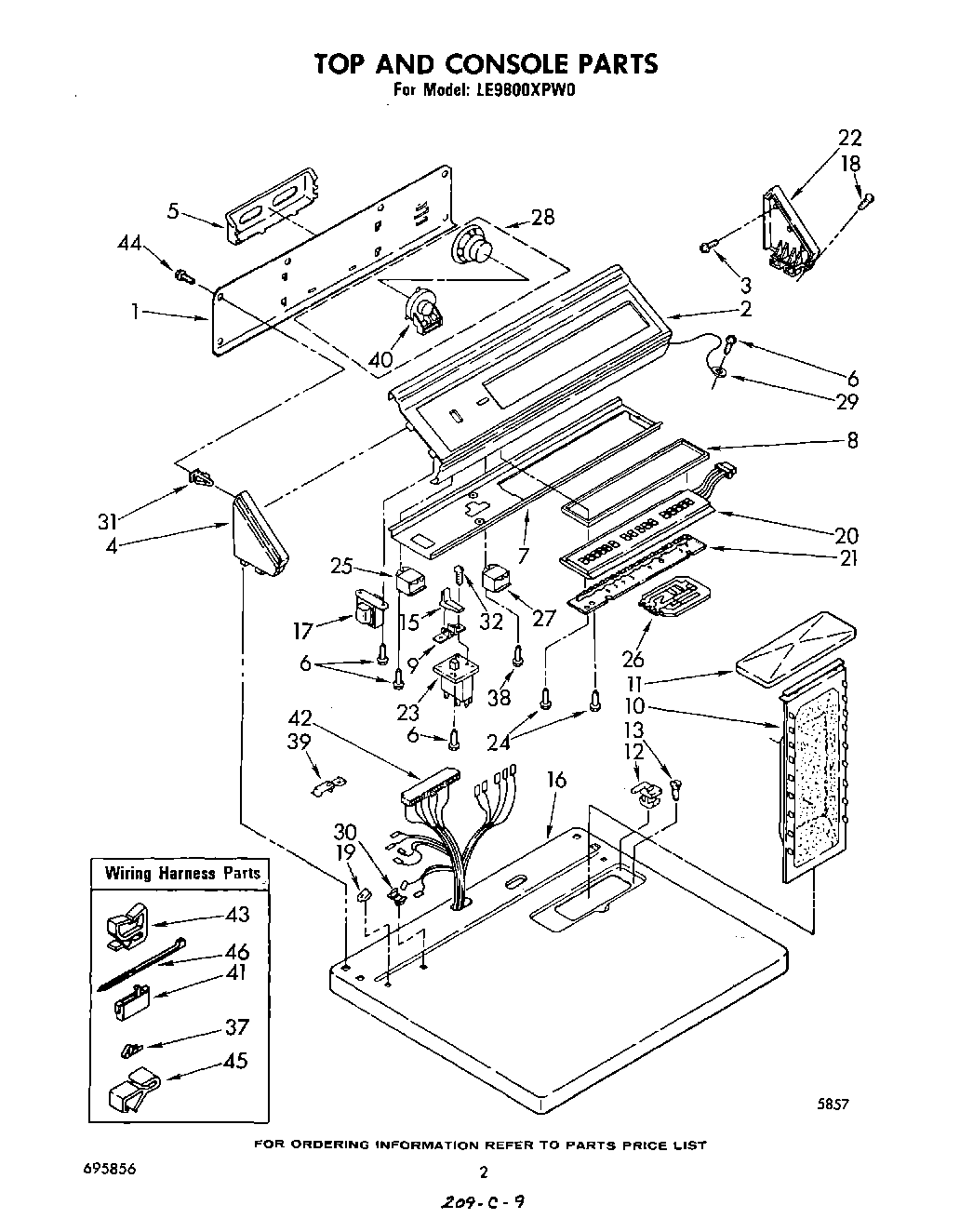

LE9800XPW0 02 – SECTION

Products

PositionProduct
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.)
5Rack, Literature
6SCREW
7Bracket, Control
8Trim, Frame
9Pivot, Lever
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Lever
16Top (Almond)
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
16Top (White)
17Transformer
18WPL 64211
19Nut, Push-In (2)
20Module, Touch
21Display Assembly
22WPL 63795
23Relay, Start-To-Stop
24Screw, 8-18 x 1/2 (6)
25Power Relay (2)
26Microcomputer Assembly
27Power Relay (2)
28Speaker & Housing
29Wire, Ground
30Stop, Push-In Top
31WP689559 Whirlpool Nut
32WPW10068250 Whirlpool Dishwasher Screw
37Terminal
38CamAlso Available (12-Pin (15 Min.))
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
41Connector
42Harness, Electric
43Clip, Harness (Rear Bulkhead Area)
44WP489069 Whirlpool Compactor Screw
45Clip, Retainer
46WPW10339879 Whirlpool Wire Tie
