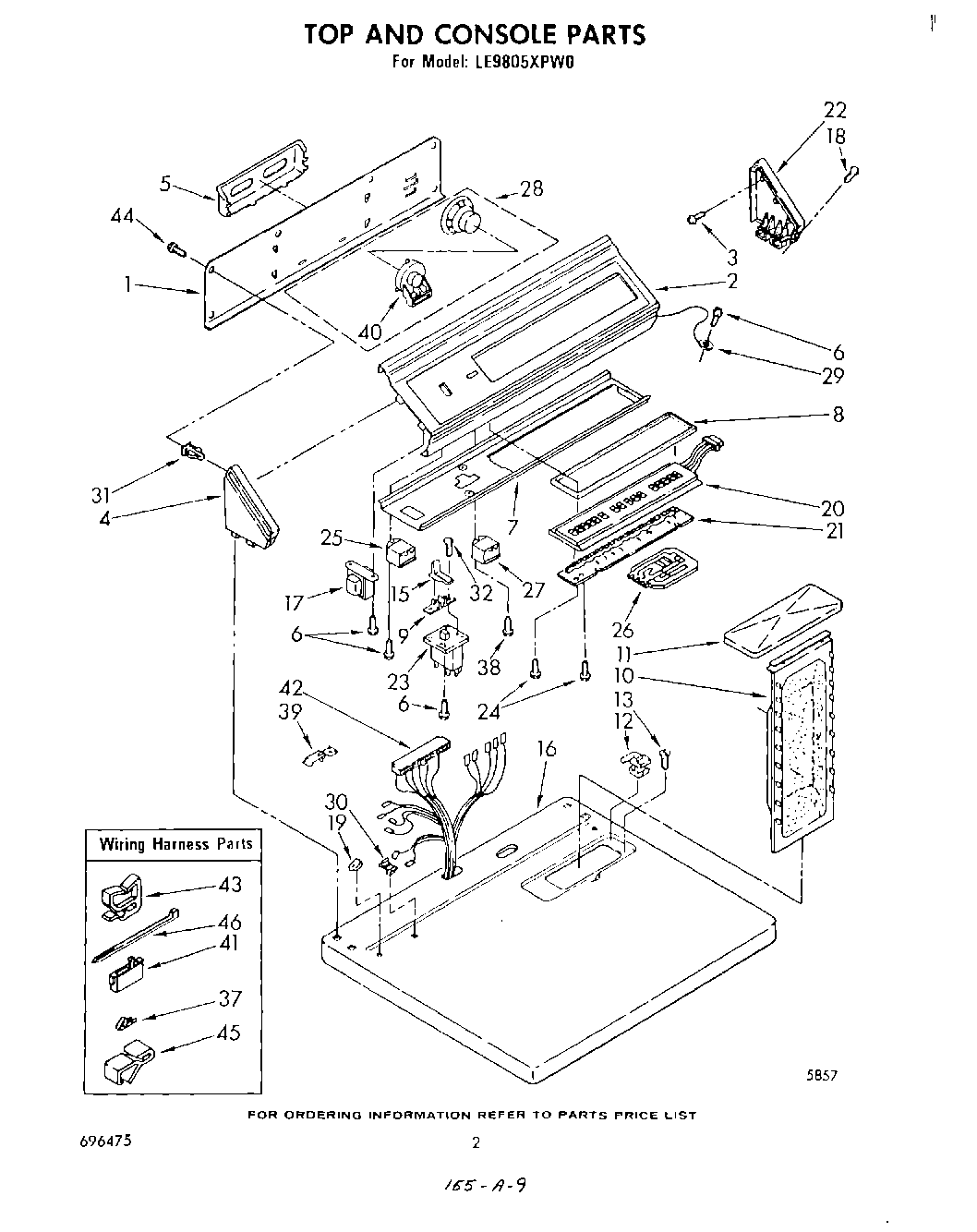

LE9805XPW0 02 – SECTION

Products

PositionProduct
WPL LIT677967
Golden Harvest
WPL LIT696211
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
WPL LIT691455
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT696475
Guide, Dryer
Washer (Belt Drive)
WPL LIT677971
72113 Whirlpool Touch-Up Paint
WPL LIT694124
Almond (Uncut)
WPL LIT696234
Dryer
350930 Whirlpool White Spray Paint
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Leveler (Thinner)
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.)
5Rack, Literature
6SCREW
7Bracket, Control
8Trim, Frame
9Pivot, Lever
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Lever
16Top (White)
16Top (Golden Harvest)
16Top (Toast)
16Top (Platinum)
16Top (Almond)
17Transformer
18WPL 64211
19Nut, Push-In (2)
20Module, Touch
21Display Assembly
22WPL 63795
23Relay, Start-To-Stop
24Screw, 8-18 x 1/2 (6)
25Power Relay (2)
26Microcomputer Assembly
27Power Relay (2)
28Speaker & Housing
29Wire, Ground
30Stop, Push-In Top
31WP689559 Whirlpool Nut
32WPW10068250 Whirlpool Dishwasher Screw
37Terminal
38CamAlso Available (12-Pin (15 Min.))
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
41Connector
42Harness, Electric
43Clip, Harness (Rear Bulkhead Area)
44WP489069 Whirlpool Compactor Screw
45Clip, Retainer
46WPW10339879 Whirlpool Wire Tie
