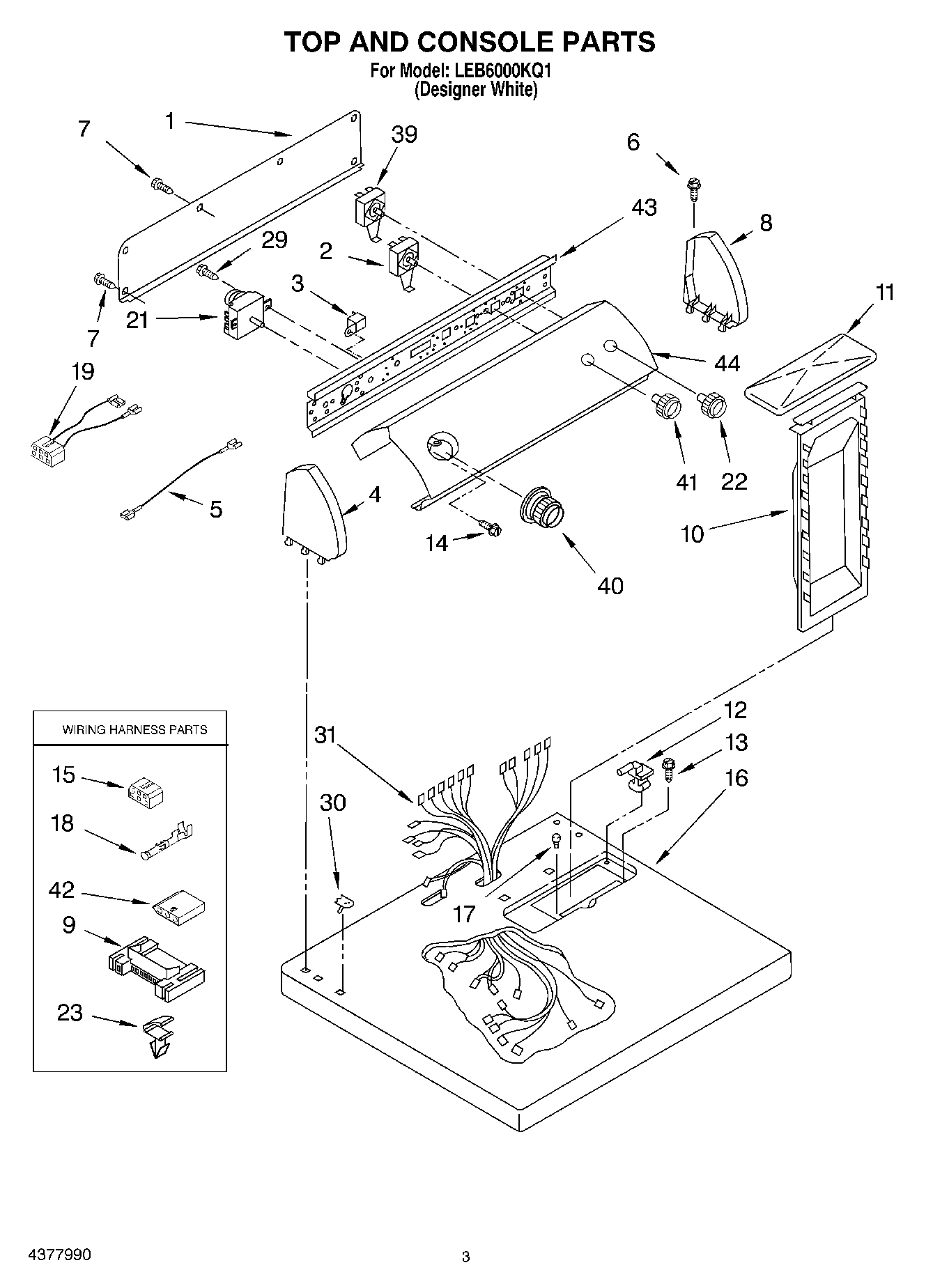

LEB6000KQ1 02 – SECTION

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	3405152 Whirlpool Switch Assembly
3	WP694419 Whirlpool Buzzer Adjuster
5	Wire, Jumper (Black)
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	Block, Disconnect
16	Top
17	Bumper, Lint Lid
18	WP94614 Whirlpool Terminal
19	Wire, Jumper (Guard On/Off)
21	WP8299778 Whirlpool Timer
22	3957804 Whirlpool Knob
23	WP3394427 Whirlpool Clip
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
39	WP3977456 Whirlpool Start Switch
40	WP3957754 Whirlpool Knob Assembly
41	WP3957799 Whirlpool Knob
42	3936144 Whirlpool Connector
43	Bracket, Control
44	Panel, Control
44	350938 Whirlpool Spray Gun
44	3404351 Whirlpool Dryer Rack
44	72017 Whirlpool Appliance Touch-Up Paint White
44	799344 Whirlpool Refrigerator Paint
44	4392065 Whirlpool Dryer Maintenance Kit
44	350930 Whirlpool White Spray Paint
