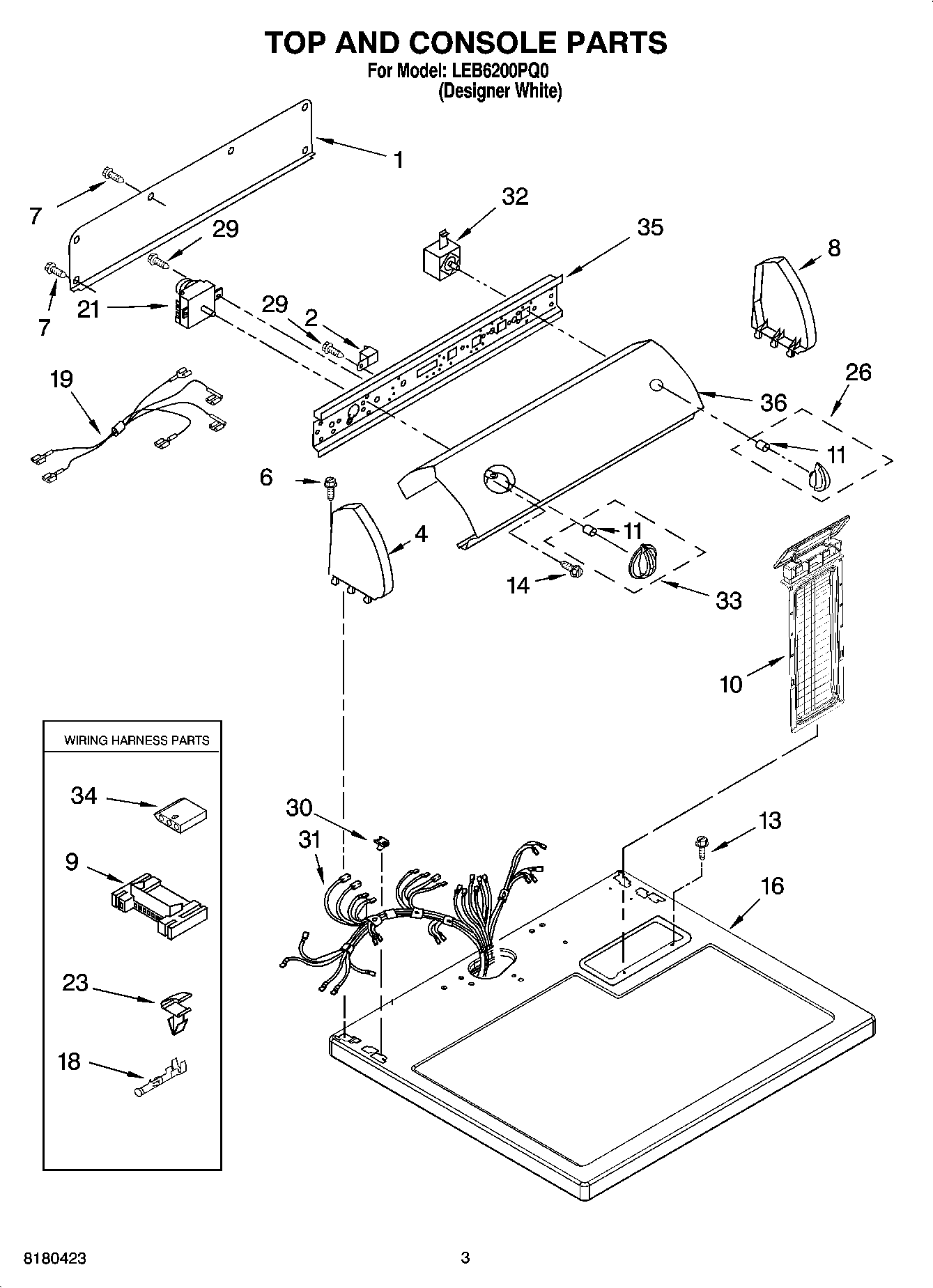

LEB6200PQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	WP694419 Whirlpool Buzzer Adjuster
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
16	Top
18	WP94614 Whirlpool Terminal
19	Wire, Jumper (PTS to Buzzer)
21	WP8299778 Whirlpool Timer
23	WP3394427 Whirlpool Clip
26	WPL 8544935
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	WPW10450292 Whirlpool Wire Harness
32	WP3404233 Whirlpool Dryer Starter Switch
33	W10756270 Whirlpool Dryer Timer Knob
34	3936144 Whirlpool Connector
35	Bracket, Control
36	Panel, Control
36	3404351 Whirlpool Dryer Rack
36	W11224254 Whirlpool Test Kit
36	4392065 Whirlpool Dryer Maintenance Kit
36	350930 Whirlpool White Spray Paint
36	799344 Whirlpool Refrigerator Paint
36	72017 Whirlpool Appliance Touch-Up Paint White
36	350938 Whirlpool Spray Gun
36	ACCESSORY PARTS
