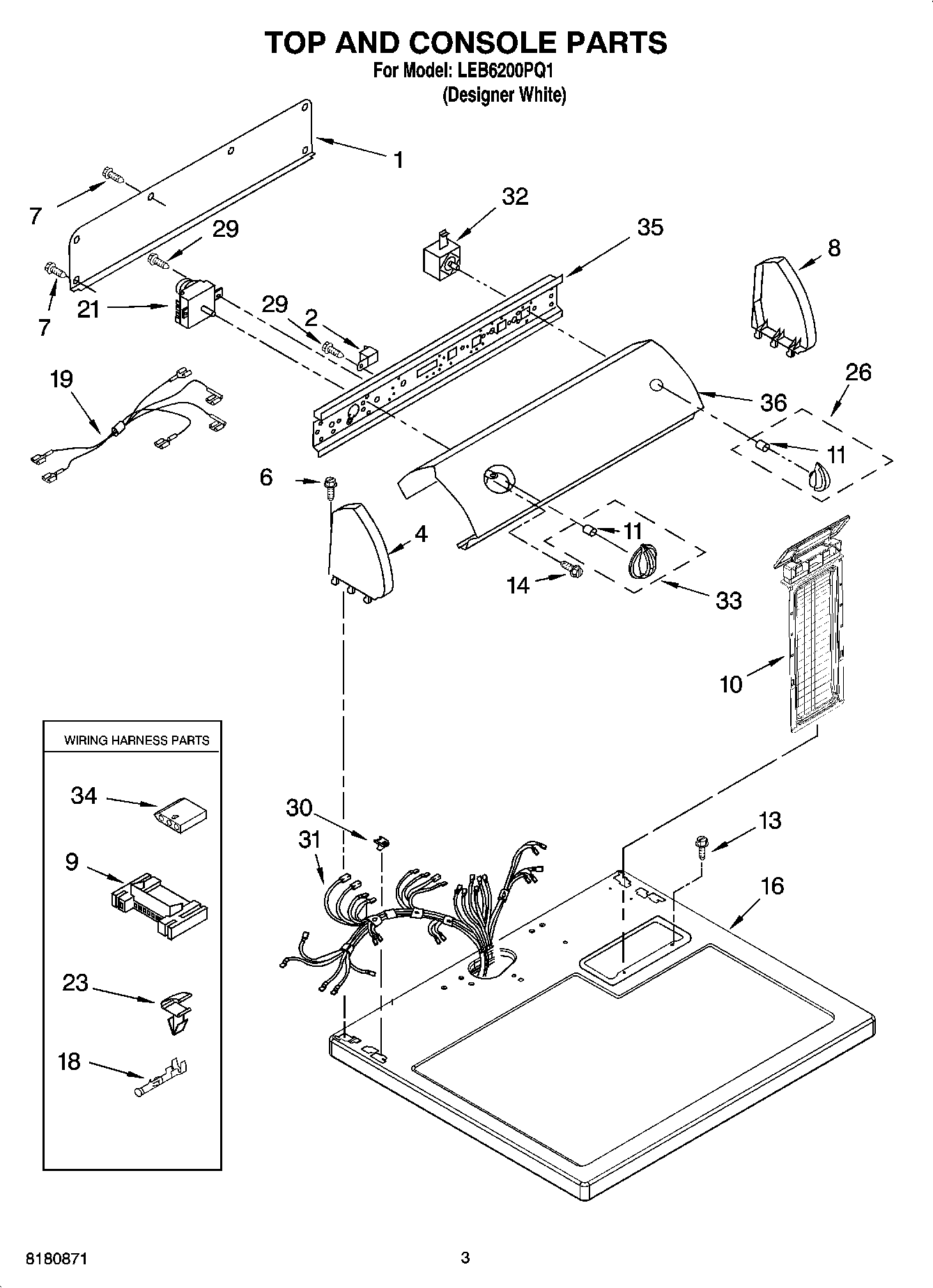

LEB6200PQ1 02 – TOP AND CONSOLE PARTS

LEB6200PQ1 02 – TOP AND CONSOLE PARTS

Written by

in

LEB6200PQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2WP694419 Whirlpool Buzzer Adjuster
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
16Top
18WP94614 Whirlpool Terminal
19Wire, Jumper (PTS to Buzzer)
21WP8299778 Whirlpool Timer
23WP3394427 Whirlpool Clip
26WPL 8544935
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31WPW10450292 Whirlpool Wire Harness
32WP8543274 Whirlpool PTS Switch
33W10756270 Whirlpool Dryer Timer Knob
343936144 Whirlpool Connector
35Bracket, Control
36Panel, Control
