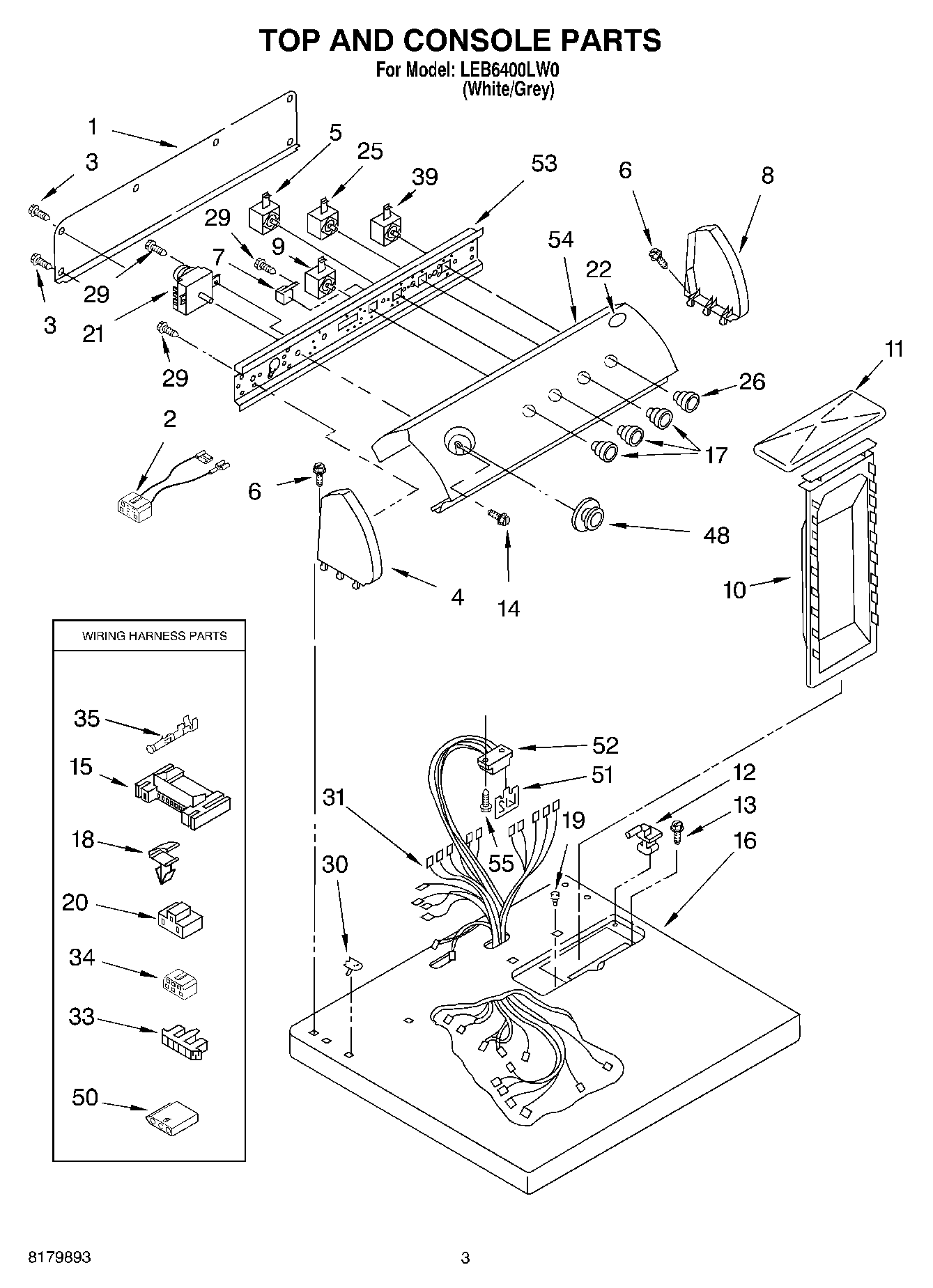

LEB6400LW0 02 – SECTION

LEB6400LW0 02 – SECTION

Written by

in

LEB6400LW0 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
23401695 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
53405154 Whirlpool Primary Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
98528330 Whirlpool Temperature Control Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17KNOB
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
22Medallion
253405152 Whirlpool Switch Assembly
26Knob, Push-To-Start
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318576506 Whirlpool Wire Harness
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398094 Whirlpool Push To Start Switch
48WP8557455 Whirlpool Knob Timer
503936144 Whirlpool Connector
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54Panel, Co
55SCREW
