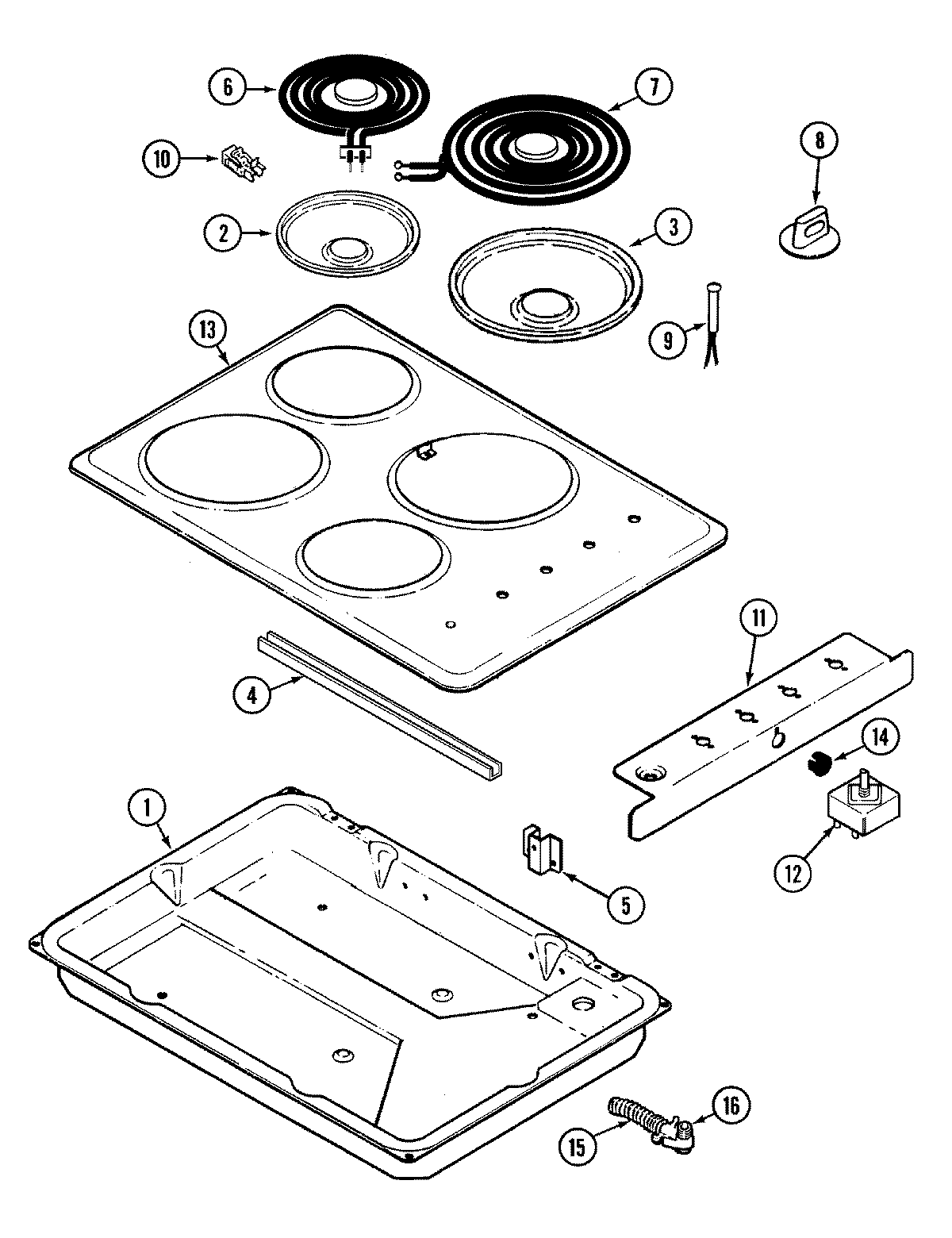

LEC1330AAB 01 – COOKTOP (COMPLETE)

Products

Position	Product
1	BOTTOM, BURNER BOX
2	WPW10196406 Whirlpool 6" Chrome Drip Bowl
3	DRIP BOWL 8" W/HOLE CHROME
4	BRACE, TOP
5	BRACKET, MAIN TOP SUPPORT
5	MAY 7118P004-60
5	MAY 7111P002-60
6	WPW10259868 Whirlpool Surface Heating Element
7	WPW10345410 Whirlpool Surface Element
8	MAY 74003427
9	W11690131 Whirlpool Light Lens
9	W10852510 Whirlpool Indicator Light
10	MAY 7101P042-60
10	12001676 Whirlpool Range Surface Burner Receptacle Kit
11	MAY 74004488
12	910187 Whirlpool Screw
12	WP7403P239-60 Whirlpool Oven Switch
12	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
13	MAY 74009996
14	MAY 8008P014-60
15	MAY 74004486
16	MAY 7417P004-60
17	MAY 74007831
17	MAY 74005433
