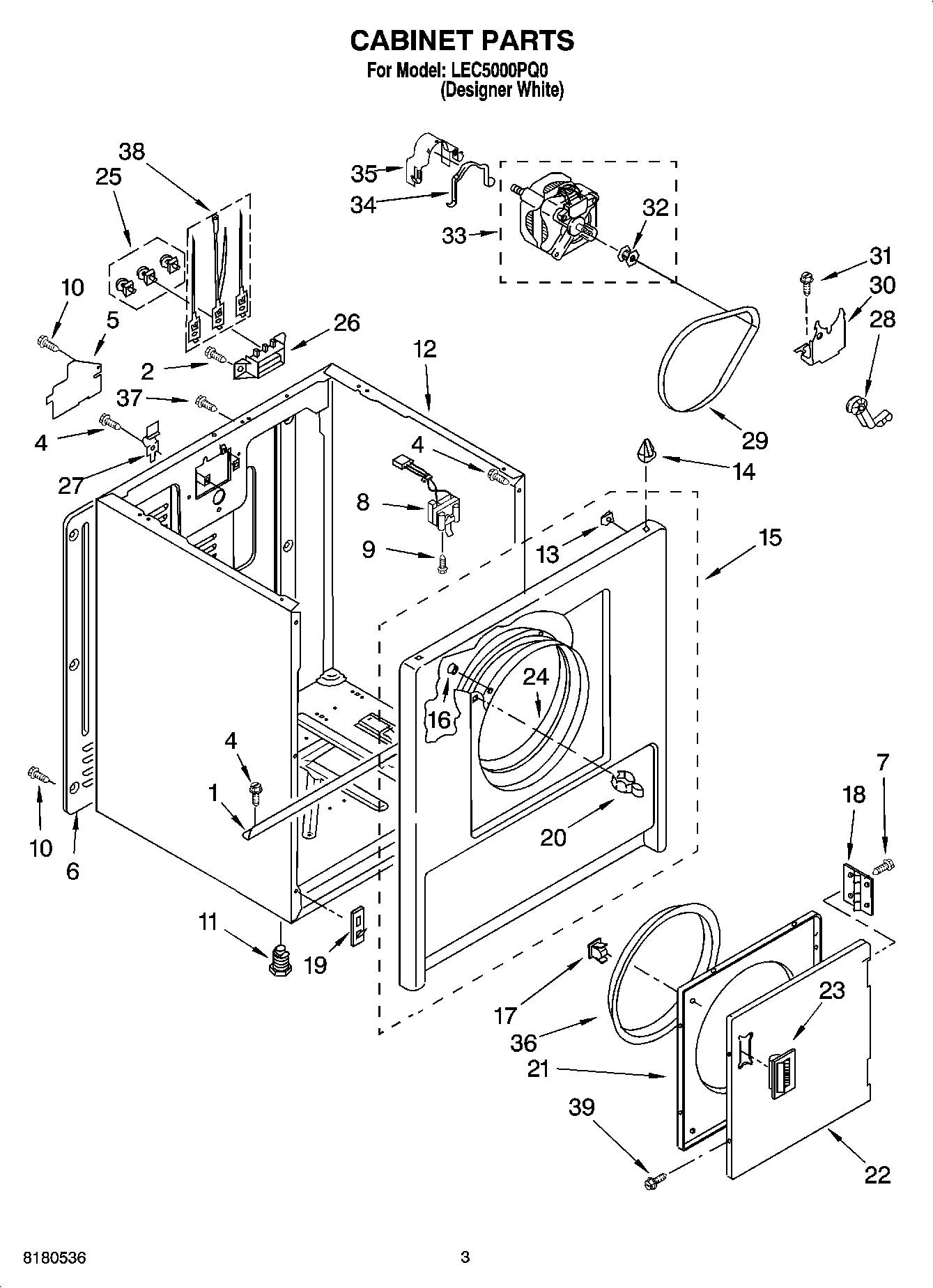

LEC5000PQ0 02 – CABINET PARTS

Products

Position	Product
1	Bracket, Cabinet
2	WP308685 Whirlpool Microwave Screw
4	SCREW
5	W11539855 Whirlpool Refrigerator Pump
6	280040 Whirlpool Rear Panel
7	WP694091 Whirlpool Screw
8	WP3406102 Whirlpool Door Switch
9	WP3395530 Whirlpool Screw
10	WP693995 Whirlpool Screw
11	49621 Whirlpool Leveling Feet
12	8533643 Whirlpool Dryer White Cabinet
13	WP98234 Whirlpool Nut
14	WP18776 Whirlpool Lock
15	Front Panel (White)
16	279220 Whirlpool Clip
17	WP3389441 Whirlpool Door Catch
18	WP348023 Whirlpool Hinge
19	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20	279570 Whirlpool Dryer Door Latch Kit
21	280077 Whirlpool Door
22	WP348205 Whirlpool Door
23	WP686711 Whirlpool Door Handle
24	279264 Whirlpool Bearing and Seal Kit
25	279393 Whirlpool Terminal Block Screw and Nut Kit
26	WP3397659 Whirlpool Terminal Block
27	WP8066217 Whirlpool Hinge
28	WP691366 Whirlpool Dryer Idler Pulley Assembly
29	341241 Whirlpool Dryer Drum Belt
30	WP348780 Whirlpool Base
31	3400500 Whirlpool Screw
32	WP8066184 Whirlpool Dryer Motor Pulley
33	279827 Whirlpool Dryer Drive Motor
34	WP660658 Whirlpool Clamp
35	WP3404162 Whirlpool Clamp
36	W11613302 Whirlpool Door Seal
37	W10850756 Whirlpool Screw
38	279318 Whirlpool Terminal
39	WP488627 Whirlpool Refrigerator Screw
