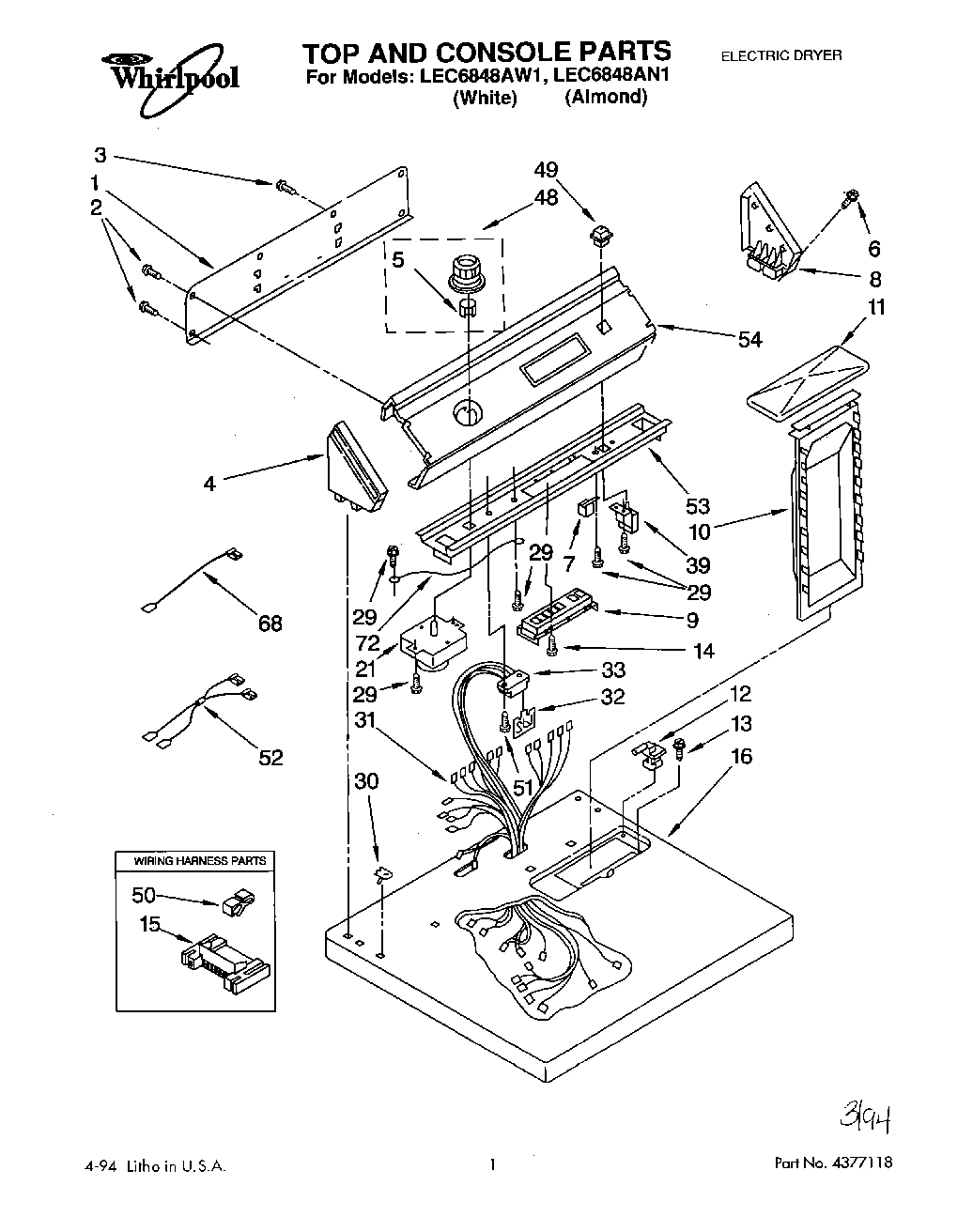

LEC6848AN1 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Instructions, Installation
Dryer
Almond (Uncut)
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
WPL LIT3398692
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9Switch, Clean Touch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 7/8
153395683 Whirlpool Connector
16Top (White)
16Top (Almond)
21WP3397273 Whirlpool Timer
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
333391885 Whirlpool Connector
39Relay, Push-To-Start
48WP3957752 Whirlpool Knob
49Button, Push To Start
50Clip, Retainer
51SCREW
52Wire Jumper Assembly
53Bracket, Control
54Panel, Control (Almond)
54Panel, Control (White)
68Wire, Jumper (Violet)
68Wire, Jumper (Blue)
72Wire, Ground
