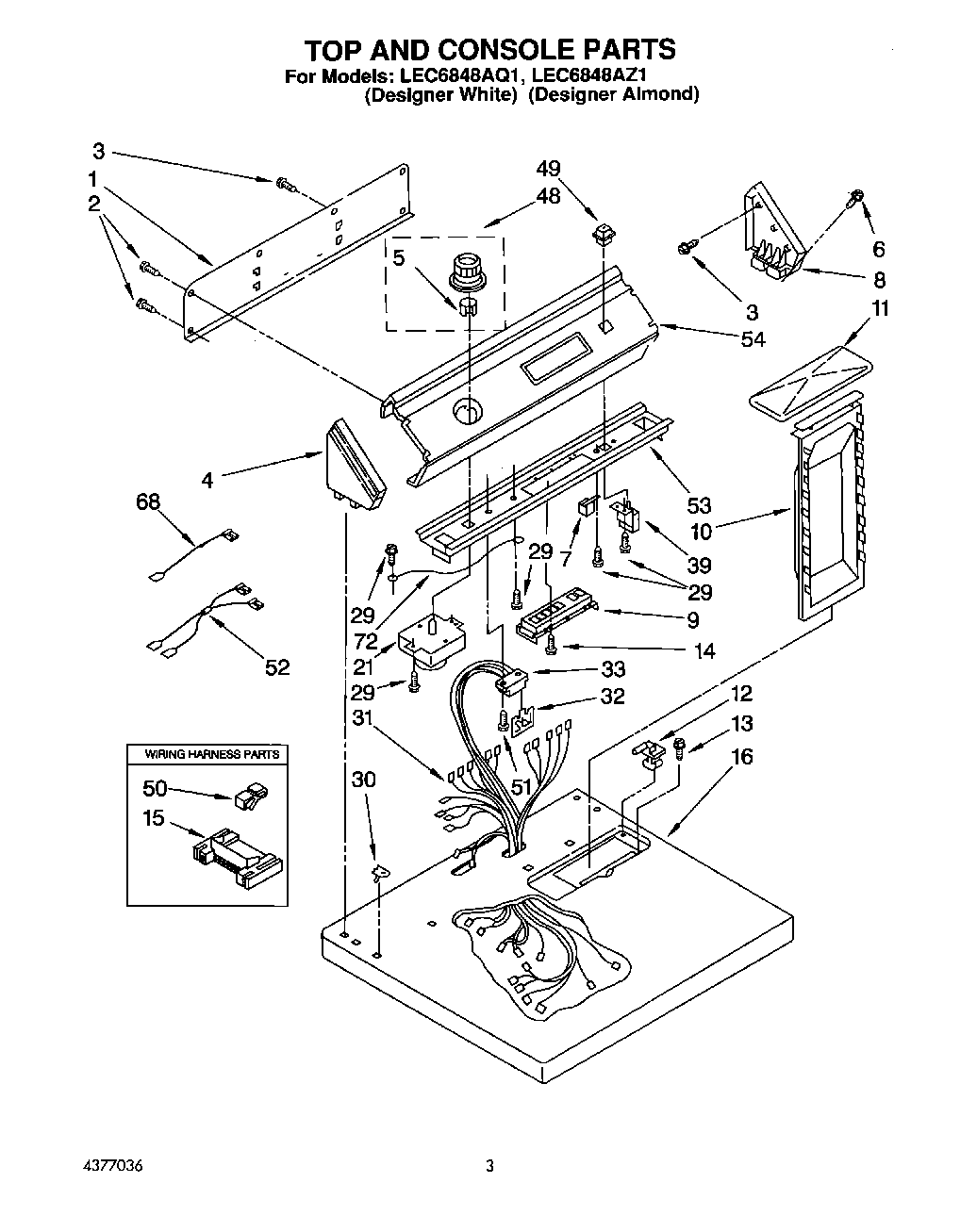

LEC6848AQ1 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Instructions, Installation
	Almond (Uncut)
	Guide, Use & Care
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3398692
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	Switch, Clean Touch (Almond)
9	Switch, Clean Touch (White)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 7/8
15	3395683 Whirlpool Connector
16	Top (White)
16	Top (Almond)
21	WP3397273 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
33	3391885 Whirlpool Connector
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
48	3957753 Whirlpool Knob
49	LGT8858AZ1
49	LGT8858AQ1
50	Clip, Retainer
51	SCREW
52	Wire Jumper Assembly
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
68	Wire, Jumper (Blue)
68	Wire, Jumper (Violet)
72	Wire, Ground
