LEC6848AZ1 02 – SECTION

Products

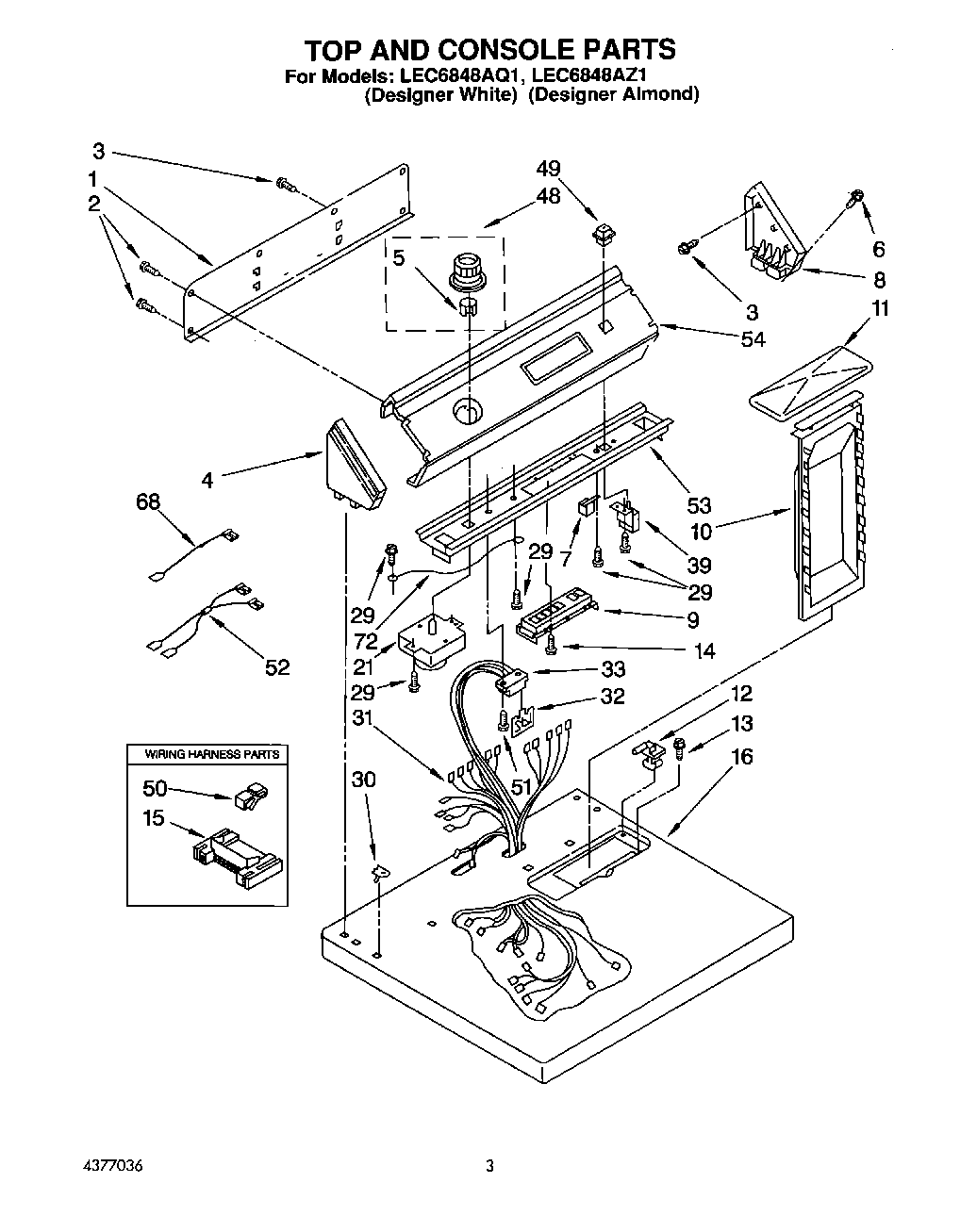

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Instructions, Installation
Almond (Uncut)
Guide, Use & Care
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3398692
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9Switch, Clean Touch (Almond)
9Switch, Clean Touch (White)
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 7/8
153395683 Whirlpool Connector
16Top (White)
16Top (Almond)
21WP3397273 Whirlpool Timer
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
333391885 Whirlpool Connector
39Relay, Push-To-Start
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
49LGT8858AZ1
49LGT8858AQ1
50Clip, Retainer
51SCREW
52Wire Jumper Assembly
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
68Wire, Jumper (Blue)
68Wire, Jumper (Violet)
72Wire, Ground
