LEC7646DQ1 01 – SECTION
Written by
in

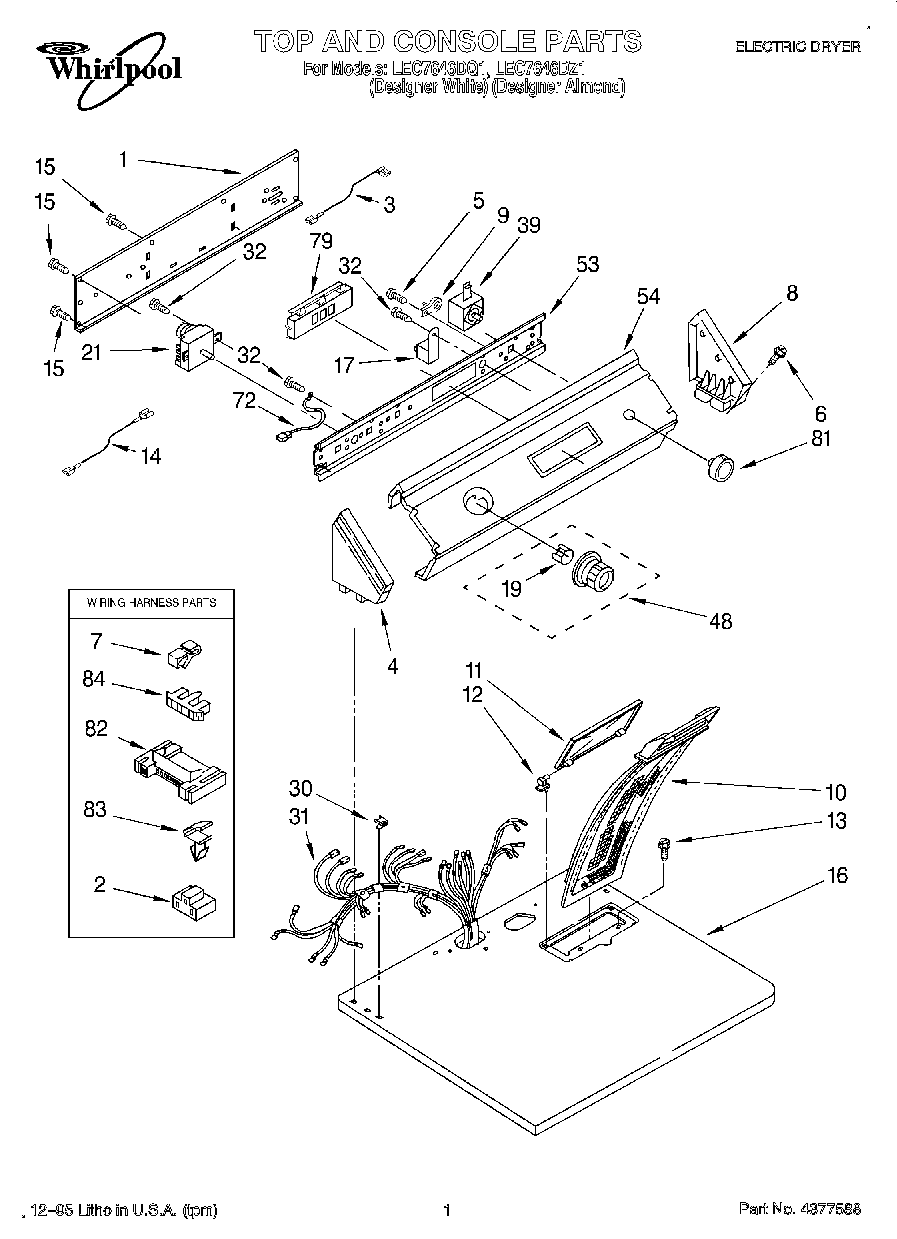

LEC7646DQ1 01 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Almond (Uncut)
Guide, Use & Care
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Dryer
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Label, Wiring Diagram
350938 Whirlpool Spray Gun
Instructions, Installation
1
Panel, Rear Console
2
3401144 Whirlpool Connector
3
Wire, Jumper (Blue)
3
Wire, Jumper (Violet)
4
Cap, End (L.H.) (Almond)
4
Cap, End (L.H.)
5
WP488729 Whirlpool Refrigerator Door Screw
6
WP388326 Whirlpool Screw
7
Clip, Retainer
8
Cap, End (R.H.) (Almond)
8
Cap, End (R.H.)
9
279872 Whirlpool Resistor
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (White)
11
Cover, Lint Screen (Almond)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Wire, Jumper (Black)
15
WP693995 Whirlpool Screw
16
Top (White)
16
Top (Almond)
17
WP694419 Whirlpool Buzzer Adjuster
19
WP688805 Whirlpool Spring Clip
21
WP3976574 Whirlpool Timer
30
WP357213 Whirlpool Hinge Stopper
31
Harness, Wiring (Includes 3397659 Terminal Block)
32
WPW10139210 Whirlpool Screw
39
WP3398095 Whirlpool Dryer Start Relay
48
3957753 Whirlpool Knob
48
WP3957752 Whirlpool Knob
53
Bracket, Control
54
Panel, Control (Almond)
54
Panel, Control (White)
72
Wire, Ground
79
Switch, Clean-Touch (Almond)
79
Switch, Clean-Touch (White)
81
WP3957796 Whirlpool Knob
81
3957797 Whirlpool Knob
82
3395683 Whirlpool Connector
83
WP3394427 Whirlpool Clip
84
Connector, Timer
←
