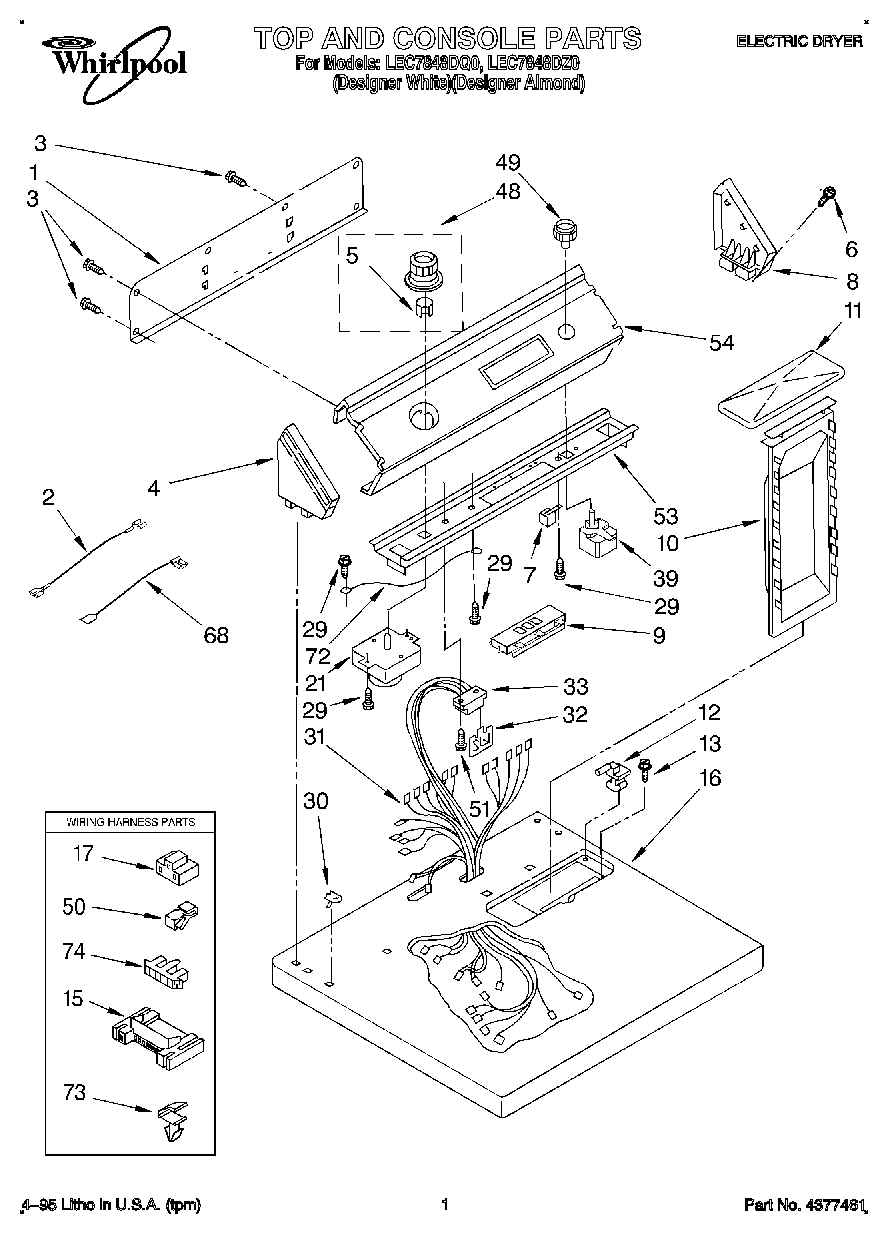

LEC7848DQ0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Guide, Use & Care
	Dryer
	WPL LIT3401725
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
8	Cap, End (R.H.) (Almond)
9	Switch, Clean-Touch (White)
9	Switch, Clean-Touch (Almond)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	3395683 Whirlpool Connector
16	Top (Almond)
16	Top (White)
17	3401144 Whirlpool Connector
21	WP3397273 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
33	3391885 Whirlpool Connector
39	WP3398095 Whirlpool Dryer Start Relay
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
49	3957797 Whirlpool Knob
49	WP3957796 Whirlpool Knob
50	Clip, Retainer
51	SCREW
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
68	Wire, Jumper (Violet)
68	Wire, Jumper (White)
68	Wire, Jumper (Blue)
72	Wire, Ground
73	WP3394427 Whirlpool Clip
74	Connector, Timer
