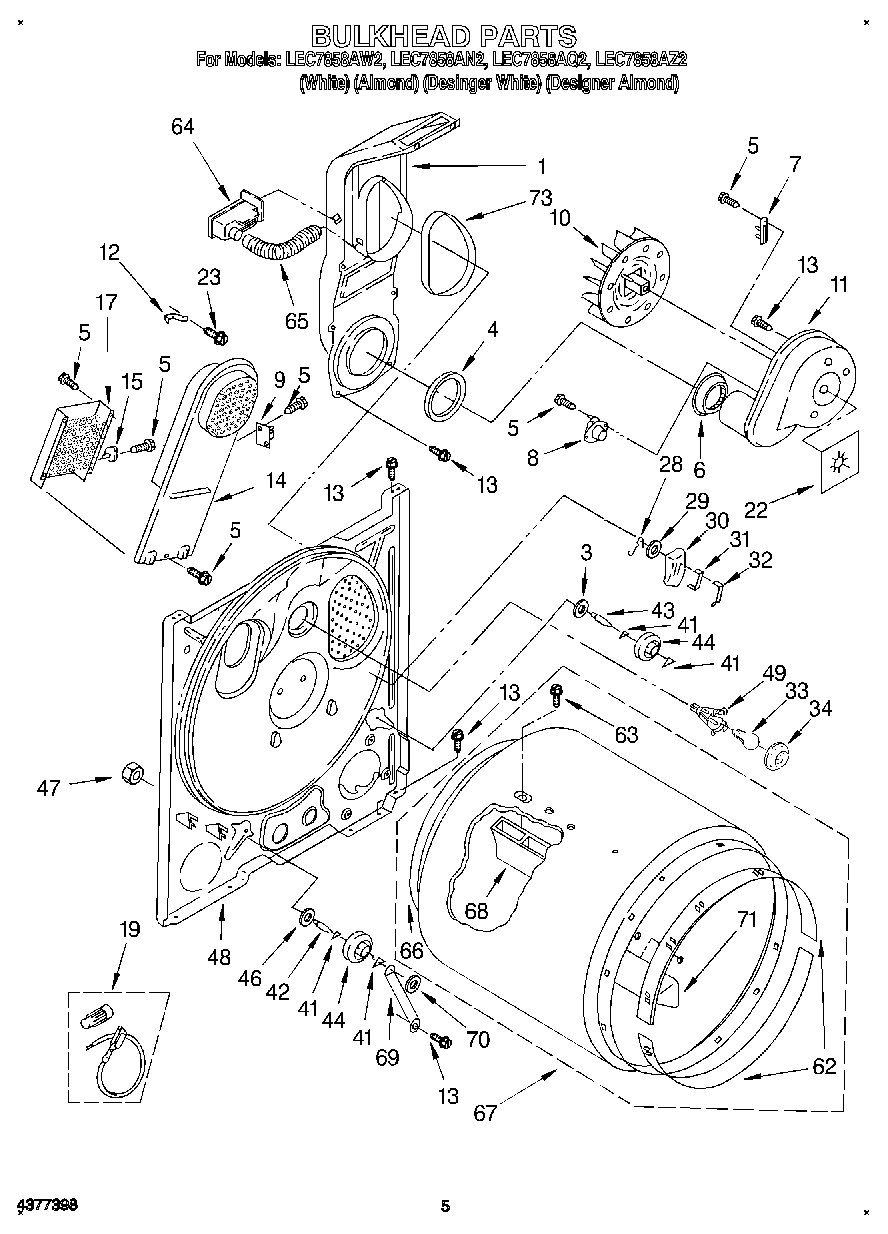

LEC7858AQ2 03 – SECTION

Products

Position	Product
1	Lint Chute Assembly
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3390291 Whirlpool High Limit Thermostat
17	279838 Whirlpool Dryer Heating Element 5400W
17	WP4391960 Whirlpool Dryer Heating Element
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
22	Seal, Blower
23	WP489463 Whirlpool Refrigerator Screw
28	WP342267 Whirlpool Clip
29	WP298877 Whirlpool Washer
30	SENSOR KIT
31	WP348859 Whirlpool Electrode Assembly
32	WP348860 Whirlpool Electrode
33	RANGE ONLY 40W 120V APPL BULB
34	Lens, Drum Light
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	Bulkhead
49	Socket Assembly
62	279441 Whirlpool Front Bearing Ring
63	WPW10109200 Whirlpool Screw
64	Alert, Lint
65	Hose, Differential
66	279408 Whirlpool Dryer Rear Drum Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	W11684613 Whirlpool Bracket
70	WP90296 Whirlpool Clip
71	WP3403636 Whirlpool Drum Baffle
73	SEAL
