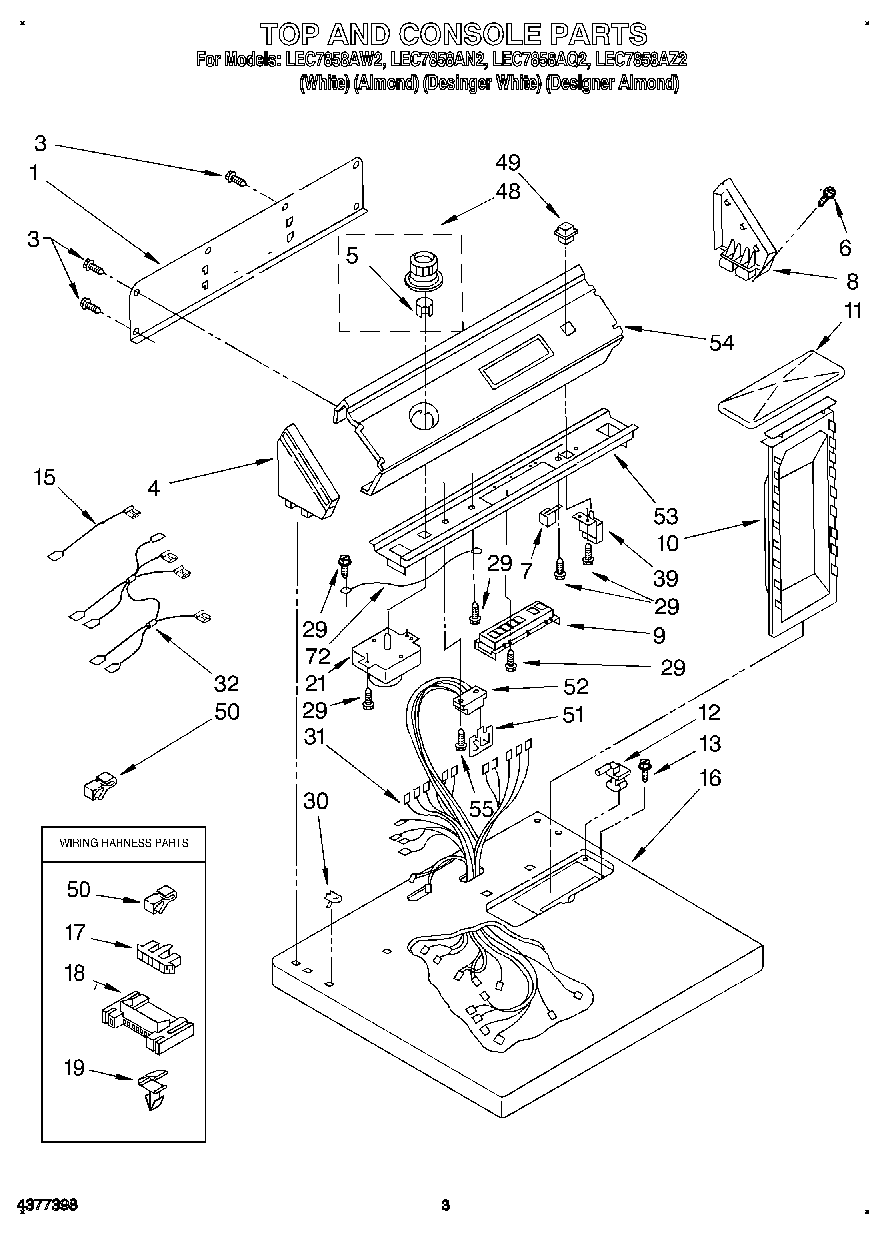

LEC7858AZ2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Guide, Use & Care
	Dryer
	Almond (Uncut)
	WPL LIT3401725
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	LGT8858AZ1
9	LGT8858AQ1
9	Switch, Clean-Touch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	Wire, Jumper (Blue)
15	Wire, Jumper (Violet)
16	Top (Almond)
16	Top (White)
17	Connector, Timer
18	3395683 Whirlpool Connector
19	WP3394427 Whirlpool Clip
21	WP3397273 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	Wire, Jumper (Signal Bypass)
39	Relay, Push-To-Start
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
49	LGT8858AZ1
49	LGT8858AQ1
49	Button, Push To Start
50	Clip, Retainer
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
54	WPL 3398521
54	WPL 3398522
55	SCREW
72	Wire, Ground
