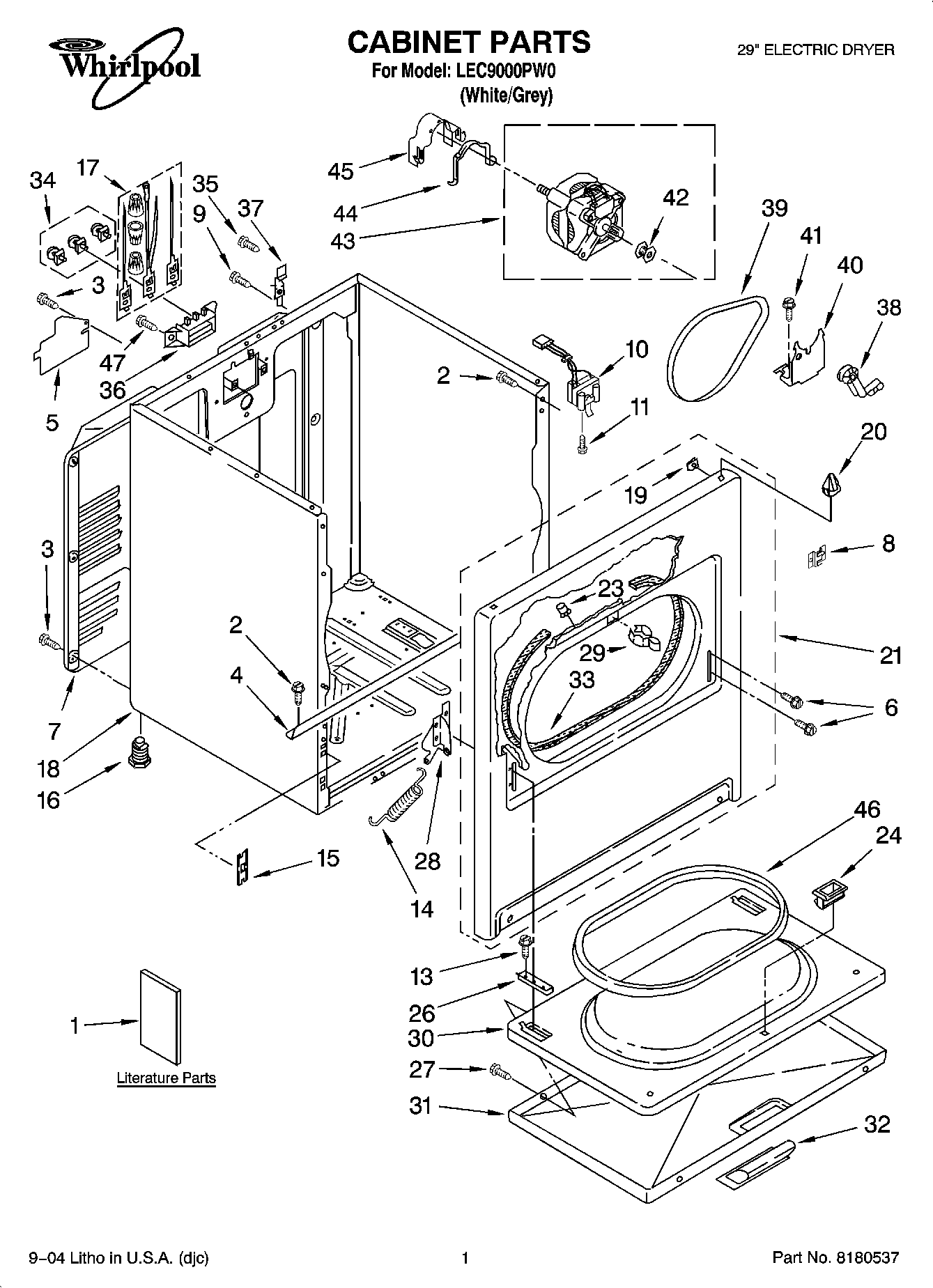

LEC9000PW0 01 – CABINET PARTS

LEC9000PW0 01 – CABINET PARTS

Written by

in

LEC9000PW0 01 – CABINET PARTS

Products

PositionProduct
1Use & Care Guide
1WPL 677818
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Sheet, Cycle Feature
1Installation Instructions
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
88546676 Whirlpool Clip
9W11693756 Whirlpool Screw Assembly
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
148541401 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279443 Whirlpool Primary Panel
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
29279570 Whirlpool Dryer Door Latch Kit
30WP695737 Whirlpool Door
31WP3393549 Whirlpool Door Assembly
32WP348721 Whirlpool Handle
33W11035878 Whirlpool Bearing and Seal
34279393 Whirlpool Terminal Block Screw and Nut Kit
35W10850756 Whirlpool Screw
36WP3397659 Whirlpool Terminal Block
37WP8066217 Whirlpool Hinge
38WP691366 Whirlpool Dryer Idler Pulley Assembly
39341241 Whirlpool Dryer Drum Belt
40WP348780 Whirlpool Base
413400500 Whirlpool Screw
42WP8066184 Whirlpool Dryer Motor Pulley
43279827 Whirlpool Dryer Drive Motor
44WP660658 Whirlpool Clamp
45WP3404162 Whirlpool Clamp
46W10906683 Whirlpool Door Seal
