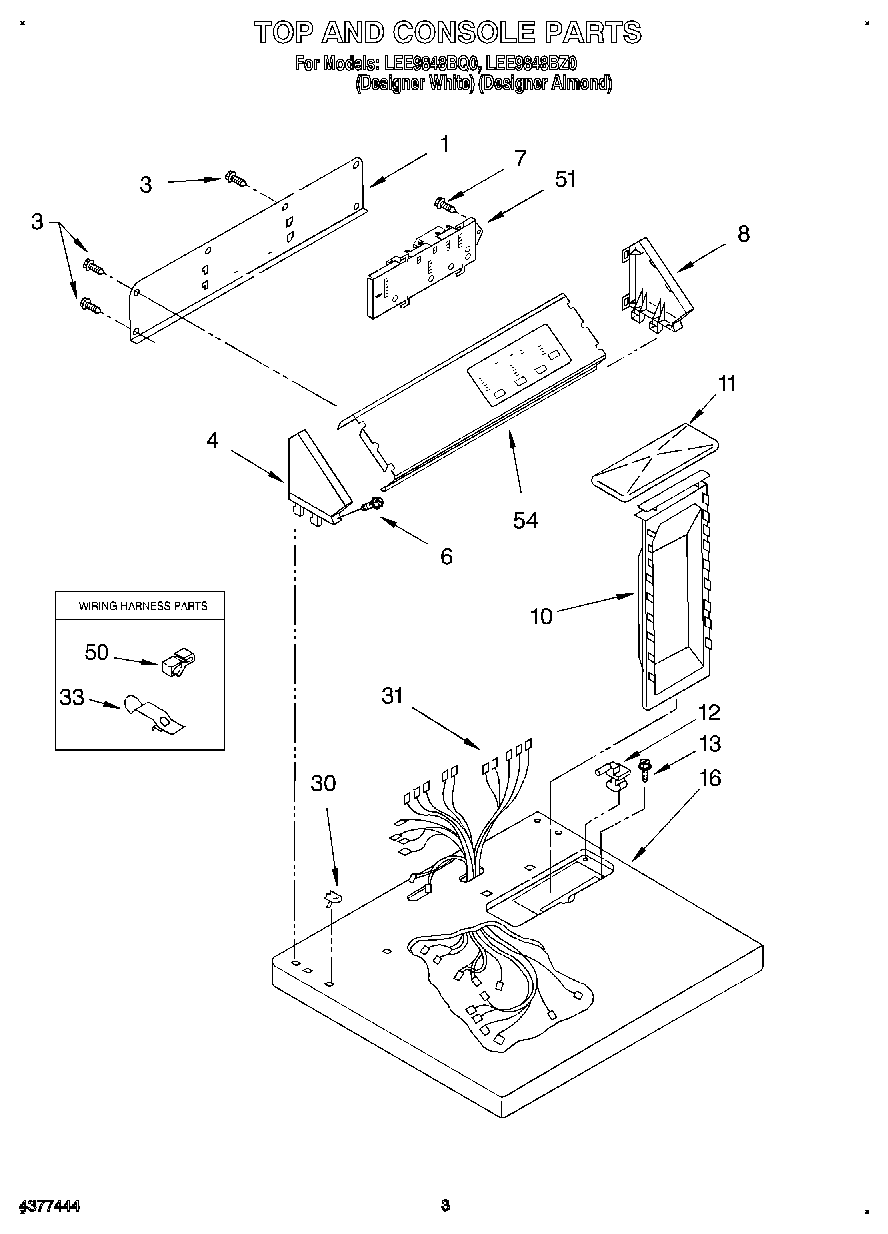

LEE9848BQ0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Wiring Diagram
	Instructions, Installation
	Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Guide, Use & Care
1	Panel, Rear Console
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
6	WP388326 Whirlpool Screw
7	WP90767 Whirlpool Screw
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
16	Top (Almond)
16	Top (White)
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring (Includes 690261 Terminal Block)
33	Clip, Wire (Tech Sheet/Top)
50	Clip, Retainer
51	Electronic Control Board
54	Control Panel & Bracket Assembly (White)
54	Control Panel & Bracket Assembly (Almond)
