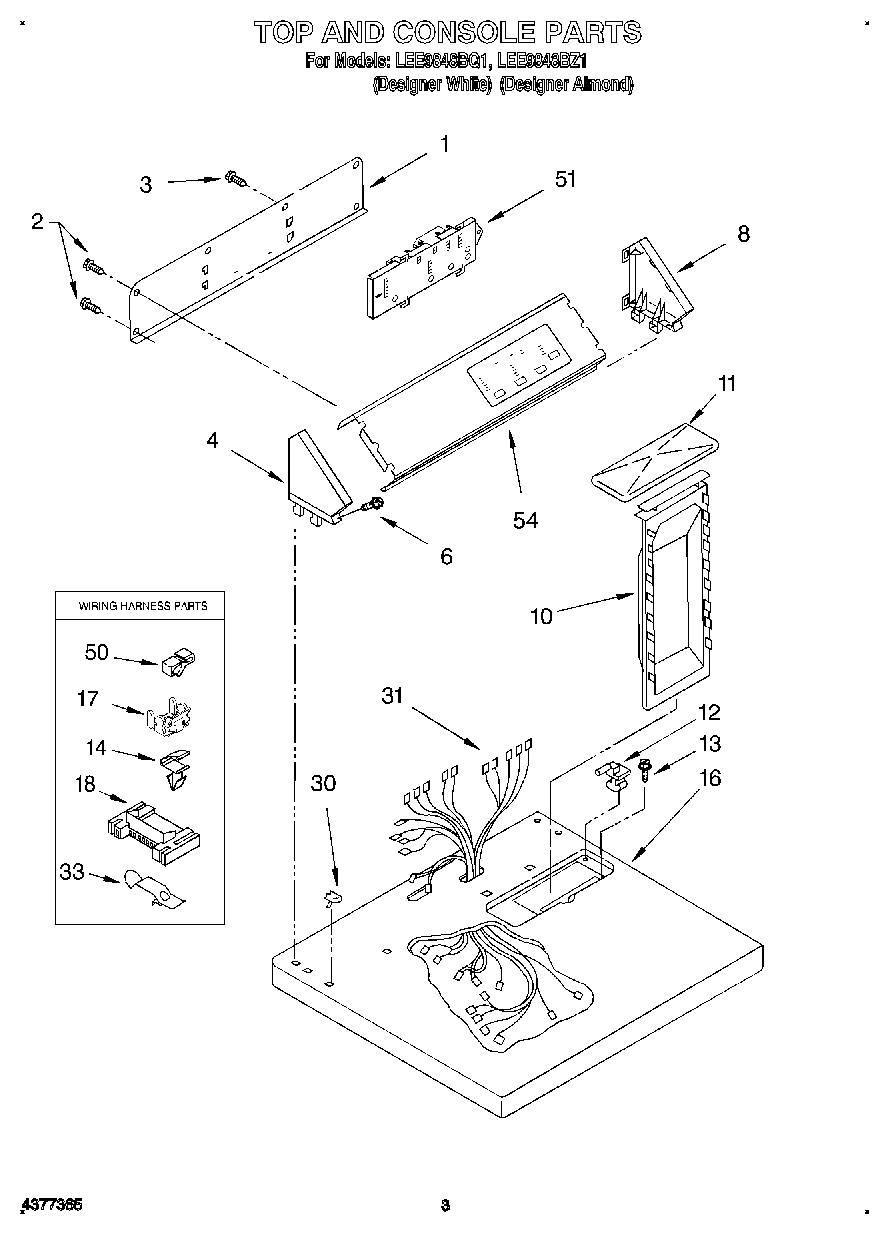

LEE9848BQ1 02 – SECTION

LEE9848BQ1 02 – SECTION

Written by

in

LEE9848BQ1 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Guide, Use & Care
Instructions, Installation
Dryer
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
6WP388326 Whirlpool Screw
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP3394427 Whirlpool Clip
16Top (Almond)
16Top (White)
17Clip, Ground
183395683 Whirlpool Connector
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring (Includes 690261 Terminal Block)
33Clip, Wire (Tech Sheet/Top)
50Clip, Retainer
51Electronic Control Board
54Control Panel & Bracket Assembly (White)
