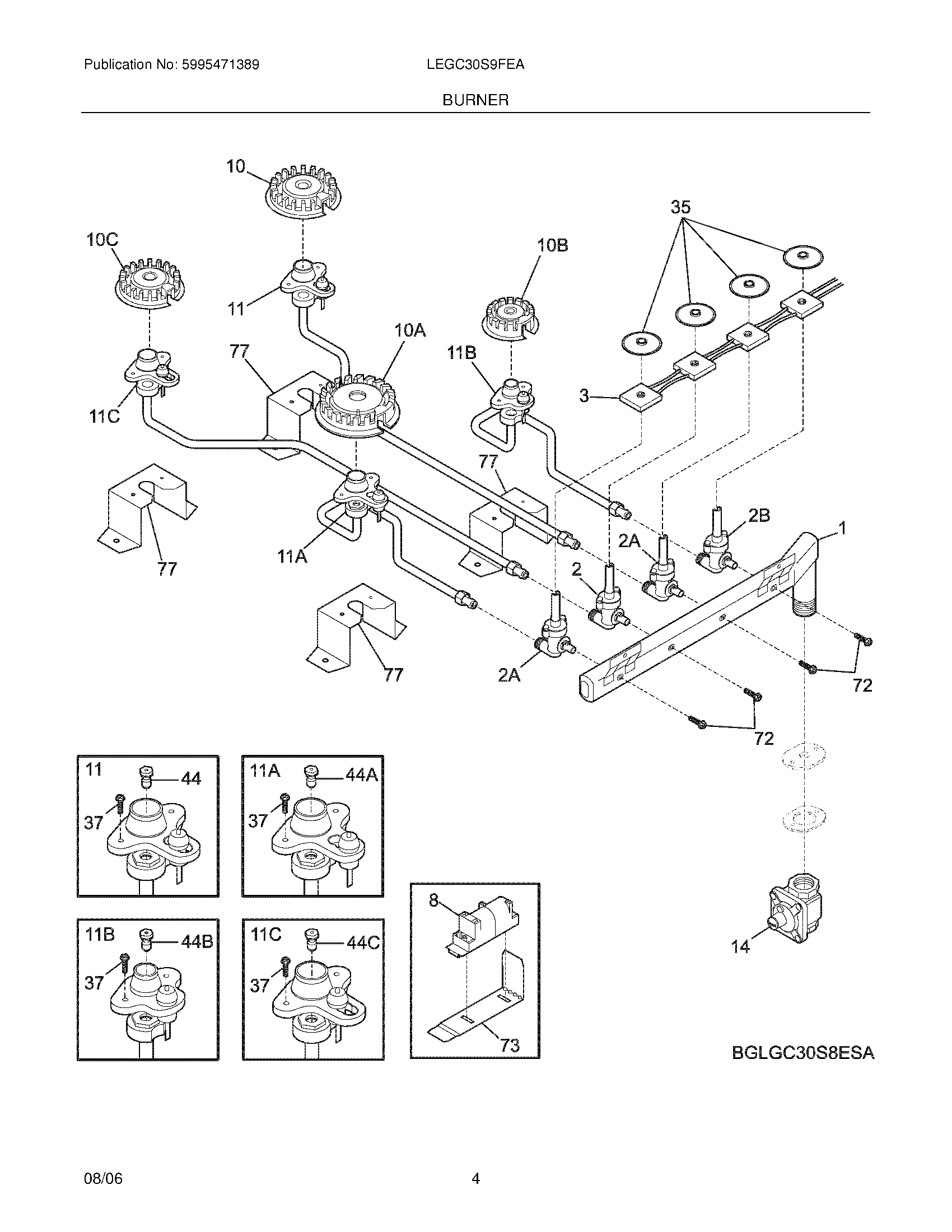

LEGC30S9FEA 05 – BURNER

Products

Position	Product
NI	5303311174 Frigidaire Oven Screw
NI	WCI 318199742
NI	WCI 318127425
NI	316524400 Frigidaire Oven Screw
1	WCI 318177005
2A	WCI 318087315
2B	WCI 318087313
2	WCI 318087314
3	318232604 Frigidaire Wiring Harness
8	5304505695 Frigidaire Oven Module
10C	316212400 Frigidaire Oven Primary Burner
10	WCI 316212300
10A	WCI 316223400
10B	WCI 316206400
11A	WCI 318221360
11	WCI 316224501
11B	WCI 316224400
11C	WCI 316224500
14	5308007974 Frigidaire Pressure Regulator
35	WCI 318146301
37	316240600 Frigidaire Igniter Mounting Screw
44A	316237900 Frigidaire Oven Orifice Assembly
44B	WCI 316237903
44C	316237902 Frigidaire Orifice Top Burner
44	WCI 316237908
72	316134300 Frigidaire Oven Screw
73	WCI 318024201
77	WCI 318192606
