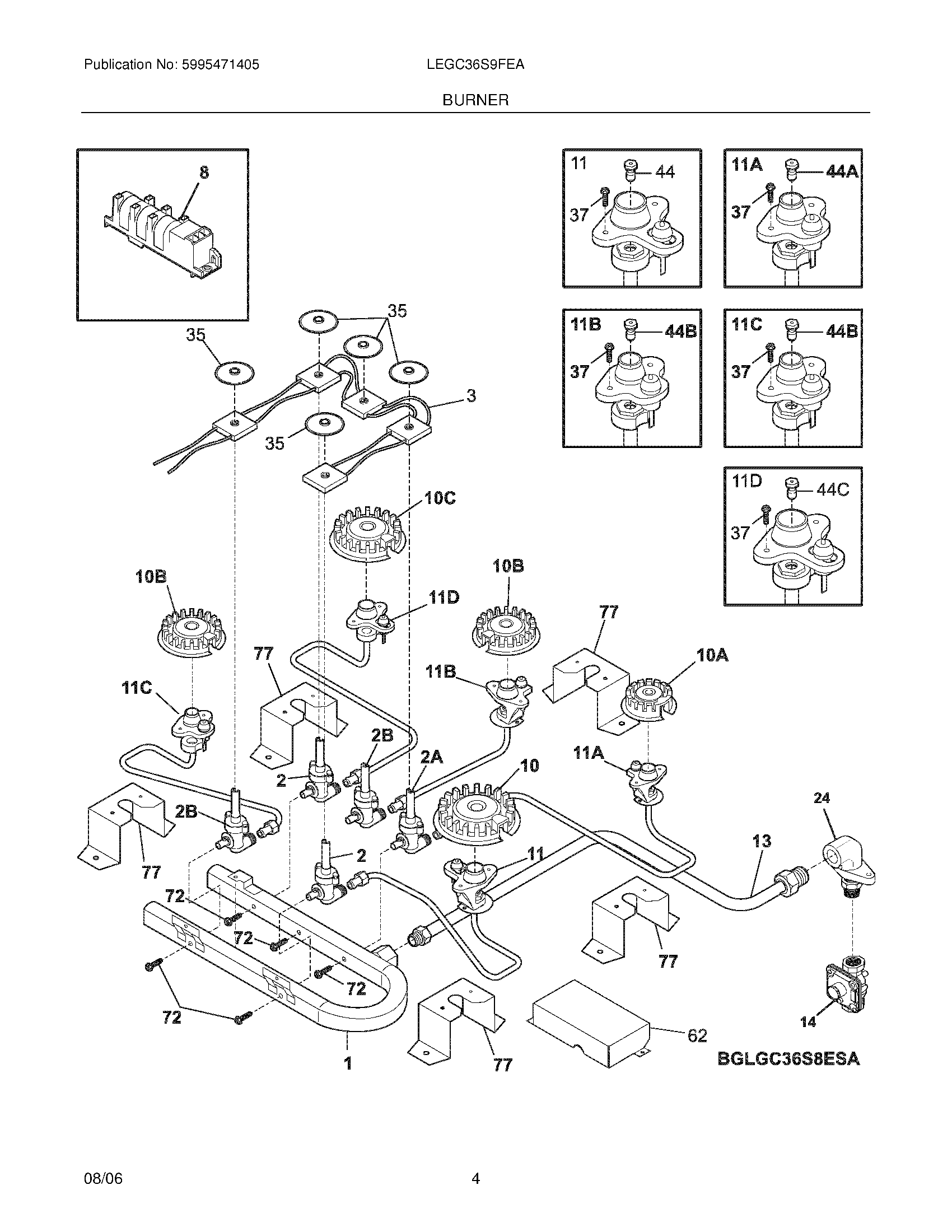

LEGC36S9FEA 05 – BURNER

Products

Position	Product
NI	WCI 318199733
NI	5304403558 Frigidaire Oven Screw
NI	5303311174 Frigidaire Oven Screw
NI	WCI 318127426
1	WCI 318177205
2B	WCI 318087314
2A	WCI 318087313
2	WCI 318087315
3	WCI 318232605
8	SPARK MODULE
10A	WCI 316206400
10B	316212400 Frigidaire Oven Primary Burner
10C	WCI 316212300
10	WCI 316223400
11B	WCI 318221359
11D	WCI 316224801
11C	WCI 316224700
11A	WCI 318221358
11	WCI 318221361
13	WCI 318054505
14	5308007974 Frigidaire Pressure Regulator
24	WCI 318054000
35	WCI 318146301
37	316240600 Frigidaire Igniter Mounting Screw
44	316237900 Frigidaire Oven Orifice Assembly
44A	WCI 316237903
44C	WCI 316237908
44B	316237902 Frigidaire Orifice Top Burner
62	WCI 318160203
72	316134300 Frigidaire Oven Screw
77	WCI 318192606
