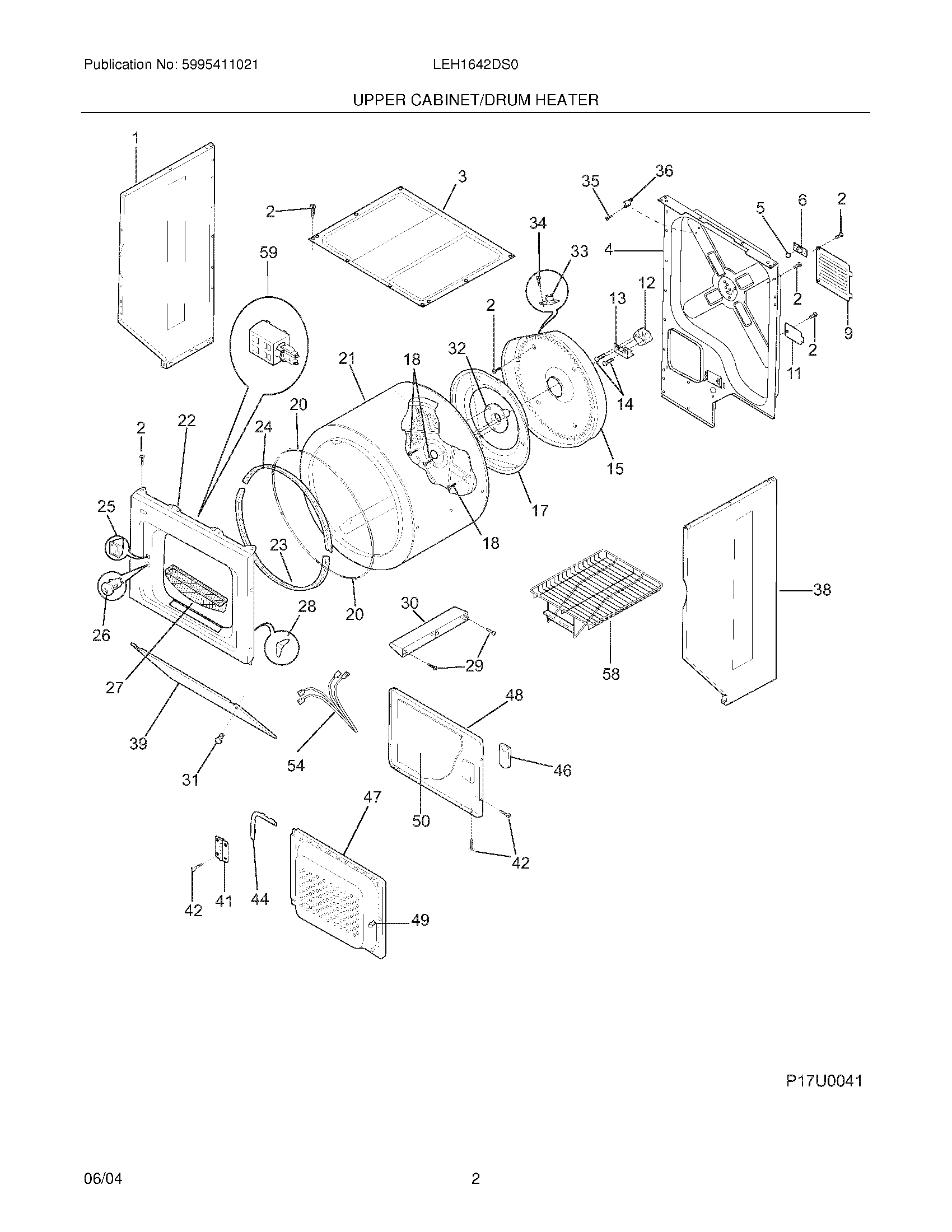

LEH1642DS0 03 – UPPER CABINET/DRUM HEATER

Products

PositionProduct
NICLIP
1WCI 131084710
3131883301 Frigidaire Panel
4WCI 131752302
55303281019 Frigidaire Ball Assembly
65303281020 Frigidaire Ball Clip
9PANEL-MOTOR ACCESS
11WCI 3204250
12131825900 Frigidaire Dryer Rear Drum Bearing Support Cup White
13131724301 Frigidaire Dryer Drum Bearing Bracket
14131205400 Frigidaire Screw
15HEATER ASSY W/HSNG
173204254 Frigidaire Baffle Assembly
18131168200 Frigidaire Dryer Screw
20137513300 Frigidaire Dryer Drum Glide
21WCI 134122552
22WCI 131636280
235303937183 Frigidaire Dryer Lower Front Felt Seal
245303937182 Frigidaire Dryer Drum Upper Felt Seal with Adhesive
25131658800 Frigidaire Dryer Door Catch Repair Kit
26134813601 Frigidaire Dryer Door Switch 3-Wire
27LINT FILTER
28CLIP GUIDE (4)
29131382300 Frigidaire Screw-VANE
30WCI 5304405283
31131202300 Frigidaire Screw
32131777700 Frigidaire Dryer Bearing Drum
33SAFETY THERMSTAT
34131243800 Frigidaire Screw
35131892100 Frigidaire Screw
36134120900 Frigidaire Dryer Limiter Thermal
38WCI 131084810
39137546910 Frigidaire Panel
41134222900 Frigidaire Dryer Door Hinge
42134156200 Frigidaire Screw
44137551901 Frigidaire Gasket
46131789400 Frigidaire Handle
47WCI 134406203
48DOOR-OUTER, WHITE
495303207102 Frigidaire Door Strike
50134535300 Frigidaire Insulator
54WCI 134403200
58WCI 134121600
59131843500 Frigidaire Washer Appliance Lamp Light Bulb Assembly
