LEL7646EQ0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3401735
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPL LIT3405520
	350938 Whirlpool Spray Gun
	WPL LIT3397621

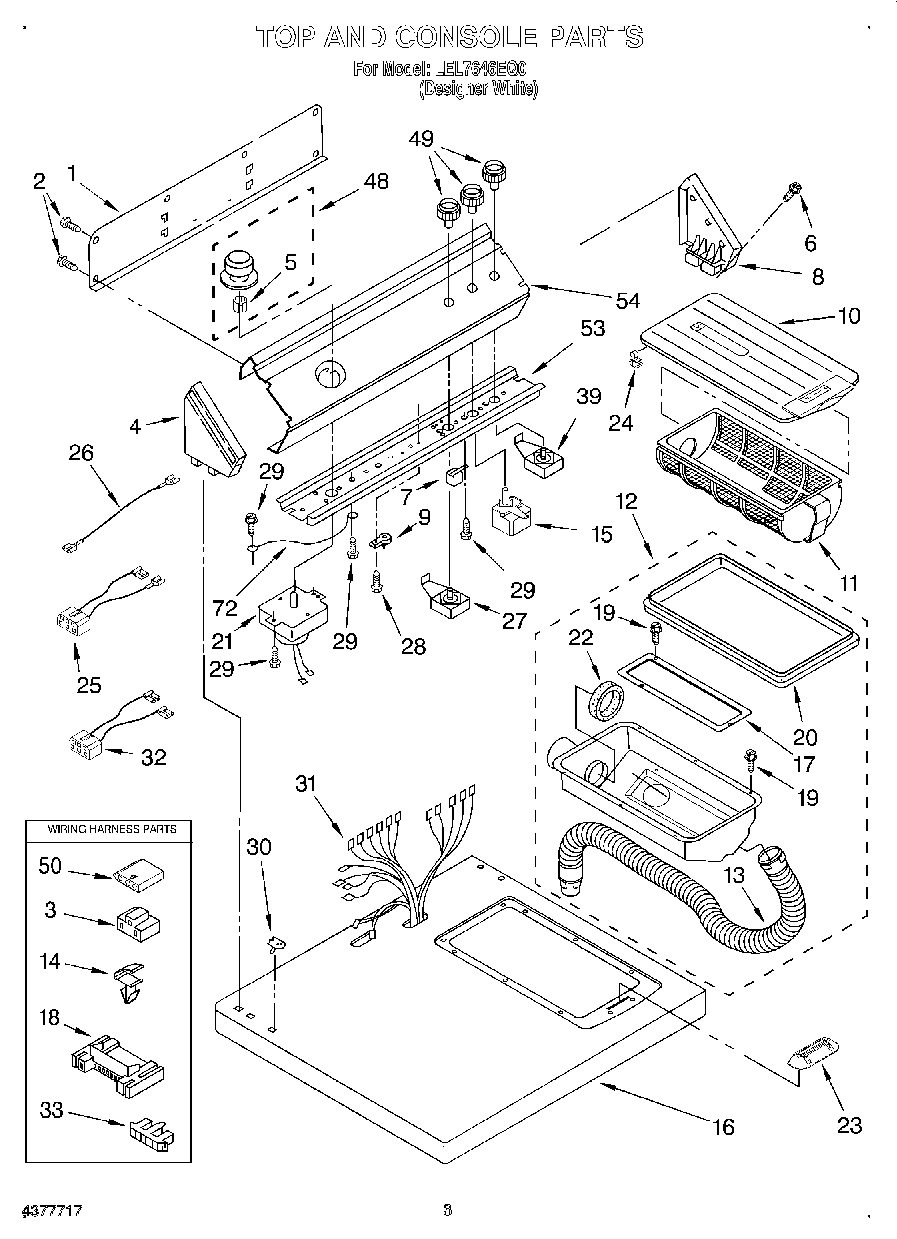

	Dryer
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	3401144 Whirlpool Connector
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
9	279872 Whirlpool Resistor
10	Lid Assembly (White)
11	Basket, Collector
12	Tray Assembly (Complete) (Also Includes Transport Tube)
13	Tube, Recirculation
14	WP3394427 Whirlpool Clip
15	WP3405156 Whirlpool Switch
16	Top (White)
17	Plate, Bottom Tray
18	3395683 Whirlpool Connector
19	Screw, 8-18 x 1/2
20	Seal, Lid
21	WP3976580 Whirlpool Timer
22	Seal (Tray To Basket)
23	Magnetic Latch Assembly (White)
24	Hinge, Lid (2)
25	3397695 Whirlpool Wire Harness
26	Wire, Jumper (Black)
27	WP3399639 Whirlpool Switch
28	WP488729 Whirlpool Refrigerator Door Screw
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring (Includes
31	WP3397659 Whirlpool Terminal Block
32	8539893 Whirlpool Wire Harness
33	Connector, Timer
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957752 Whirlpool Knob
49	WP3957796 Whirlpool Knob
50	Connector (Door Switch)
53	Bracket, Control
54	Panel, Control (White)
72	Wire, Ground

No products found
