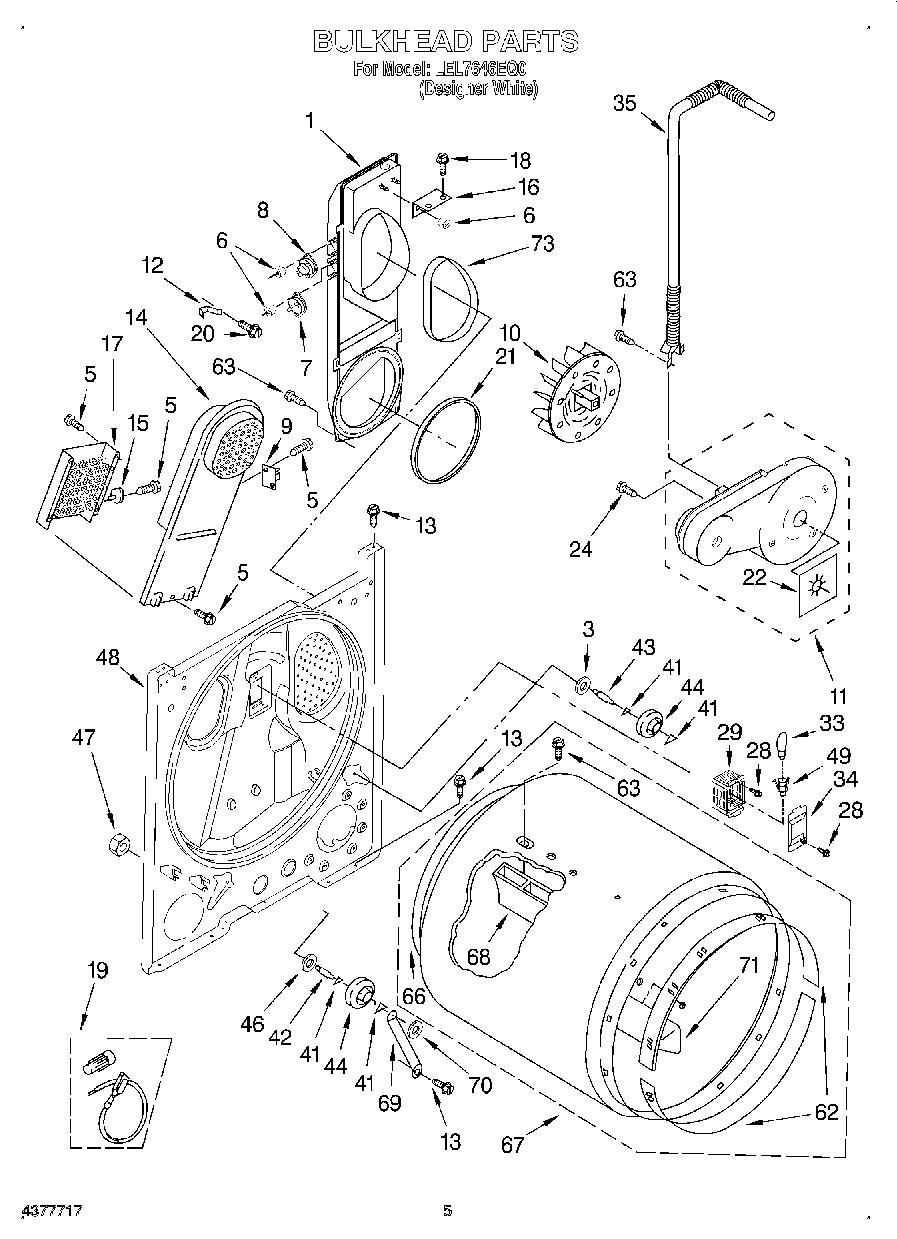

LEL7646EQ0 03 – SECTION

Products

PositionProduct
1Lint Chute Assembly (Includes Illus. Nos. 6, 16 & 21)
3WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6WP488130 Whirlpool Air Conditioner Nut
7Thermal Fuse
8THRMST-FIX
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
14WP8541818 Whirlpool Box
15WP3390291 Whirlpool High Limit Thermostat
16Bracket, Lint Chute
17279838 Whirlpool Dryer Heating Element 5400W
18WP693995 Whirlpool Screw
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
21W11415783 Whirlpool Seal
22Seal, Blower
24SCREW
28WP308685 Whirlpool Microwave Screw
293977373 Whirlpool Bracket
33WP22002263 Whirlpool Dryer 10W Light Bulb
34W11226088 Whirlpool Lens Assembly
35Transport Tube Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W10828911 Whirlpool Bulkhead Assembly
49W11700522 Whirlpool Socket
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
