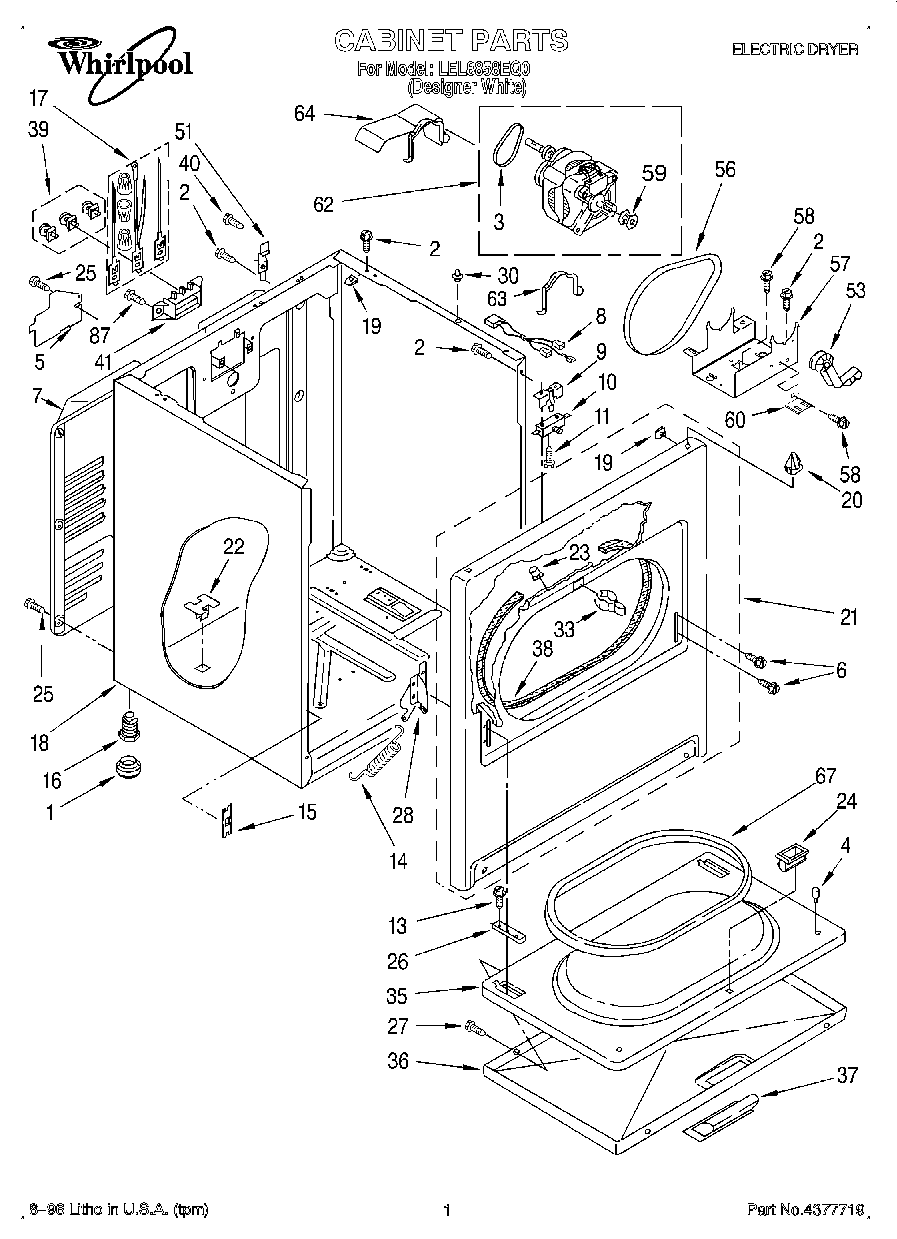

LEL8858EQ0 01 – SECTION

LEL8858EQ0 01 – SECTION

Written by

in

LEL8858EQ0 01 – SECTION

Products

PositionProduct
1WP3391943 Whirlpool Foot Boot
2SCREW
3WP3405160 Whirlpool Belt Assembly
4238614 Whirlpool Bumper Hinge
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
8WP3406107 Whirlpool Dryer Door Switch
9WP691581 Whirlpool Actuator
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
17279318 Whirlpool Terminal
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279443 Whirlpool Primary Panel
22Plug, Cabinet
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP693995 Whirlpool Screw
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066057 Whirlpool Door Hinge
28WP8066056 Whirlpool Door Hinge
30Locator, Top
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37WP348721 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39279393 Whirlpool Terminal Block Screw and Nut Kit
40W10850756 Whirlpool Screw
41WP3397659 Whirlpool Terminal Block
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57Base, Motor
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
603401805 Whirlpool Bracket
62WPW10396039 Whirlpool Drive Motor
63WP660658 Whirlpool Clamp
643401800 Whirlpool Shield
67W10906683 Whirlpool Door Seal
