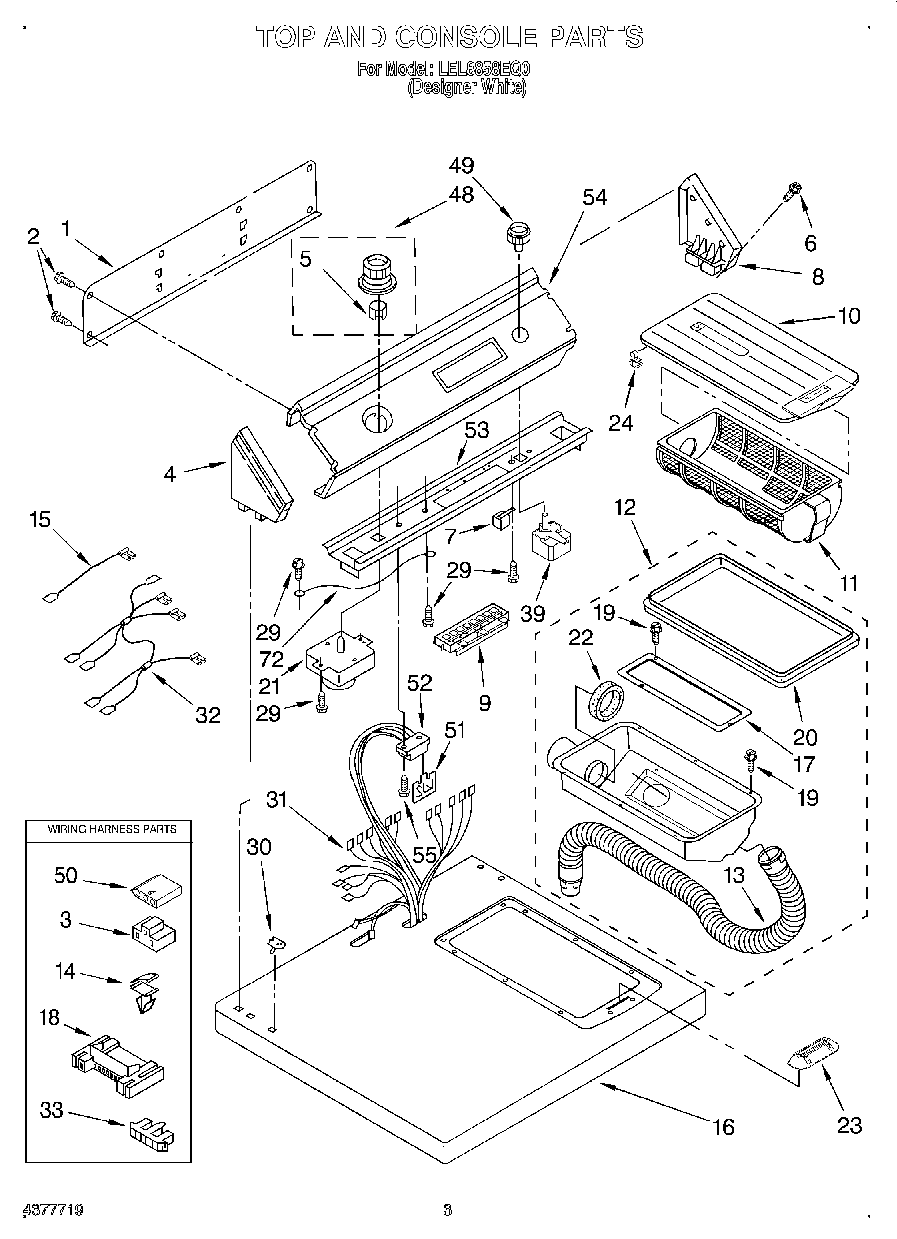

LEL8858EQ0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Dryer
	Almond (Uncut)
	WPL LIT3401725
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT3405520
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	WPL LIT3397621
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	3401144 Whirlpool Connector
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
9	Switch, Clean Touch (White)
10	Lid Assembly (White)
11	Basket, Collector
12	Tray Assembly (Complete) (Also Includes Transport Tube)
13	Tube, Recirculation
14	WP3394427 Whirlpool Clip
15	Wire, Jumper (Violet)
15	Wire, Jumper (Blue)
16	Top (White)
17	Plate, Bottom Tray
18	3395683 Whirlpool Connector
19	Screw, 8-18 x 1/2
20	Seal, Lid
21	WP3397273 Whirlpool Timer
22	Seal (Tray To Basket)
23	Magnetic Latch Assembly (White)
24	Hinge, Lid (2)
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	WP3397659 Whirlpool Terminal Block
31	Harness, Wiring (Includes
32	Wire, Jumper (Signal Bypass)
33	Connector, Timer
39	WP3398094 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
49	WP3957800 Whirlpool Knob
50	Connector (Door Switch)
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (Almond)
54	Panel, Control (White)
55	SCREW
72	Wire, Ground
