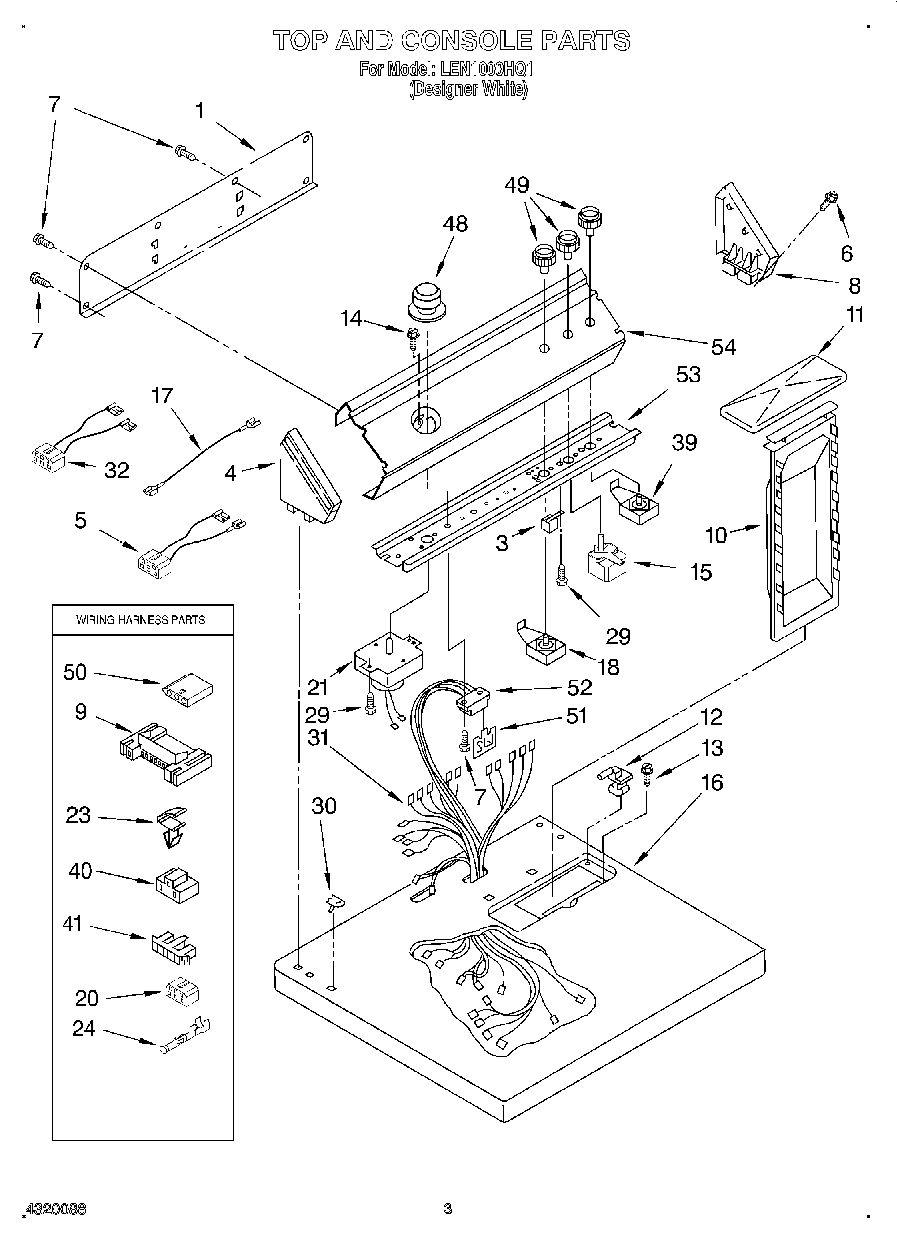

LEN1000HQ1 02 – SECTION

Products

Position	Product
	Dryer
1	Panel, Rear Console
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.)
5	3397695 Whirlpool Wire Harness
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	Cap, End (R.H.)
9	3395683 Whirlpool Connector
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	WP3405156 Whirlpool Switch
16	Top (White)
17	Wire, Jumper (Black)
18	WP3399639 Whirlpool Switch
20	Block, Disconnect
21	WP3976570 Whirlpool Timer
23	WP3394427 Whirlpool Clip
24	WP94614 Whirlpool Terminal
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	8539893 Whirlpool Wire Harness
39	WP3398095 Whirlpool Dryer Start Relay
40	3401144 Whirlpool Connector
41	Connector, Timer
48	WP3957752 Whirlpool Knob
49	WP3957796 Whirlpool Knob
50	3936144 Whirlpool Connector
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	799344 Whirlpool Refrigerator Paint
54	WP72107 Whirlpool Touchup
54	72017 Whirlpool Appliance Touch-Up Paint White
54	350956 Whirlpool Spray Assembly
54	350930 Whirlpool White Spray Paint
54	350938 Whirlpool Spray Gun
54	Almond (Uncut)
54	Panel, Control
