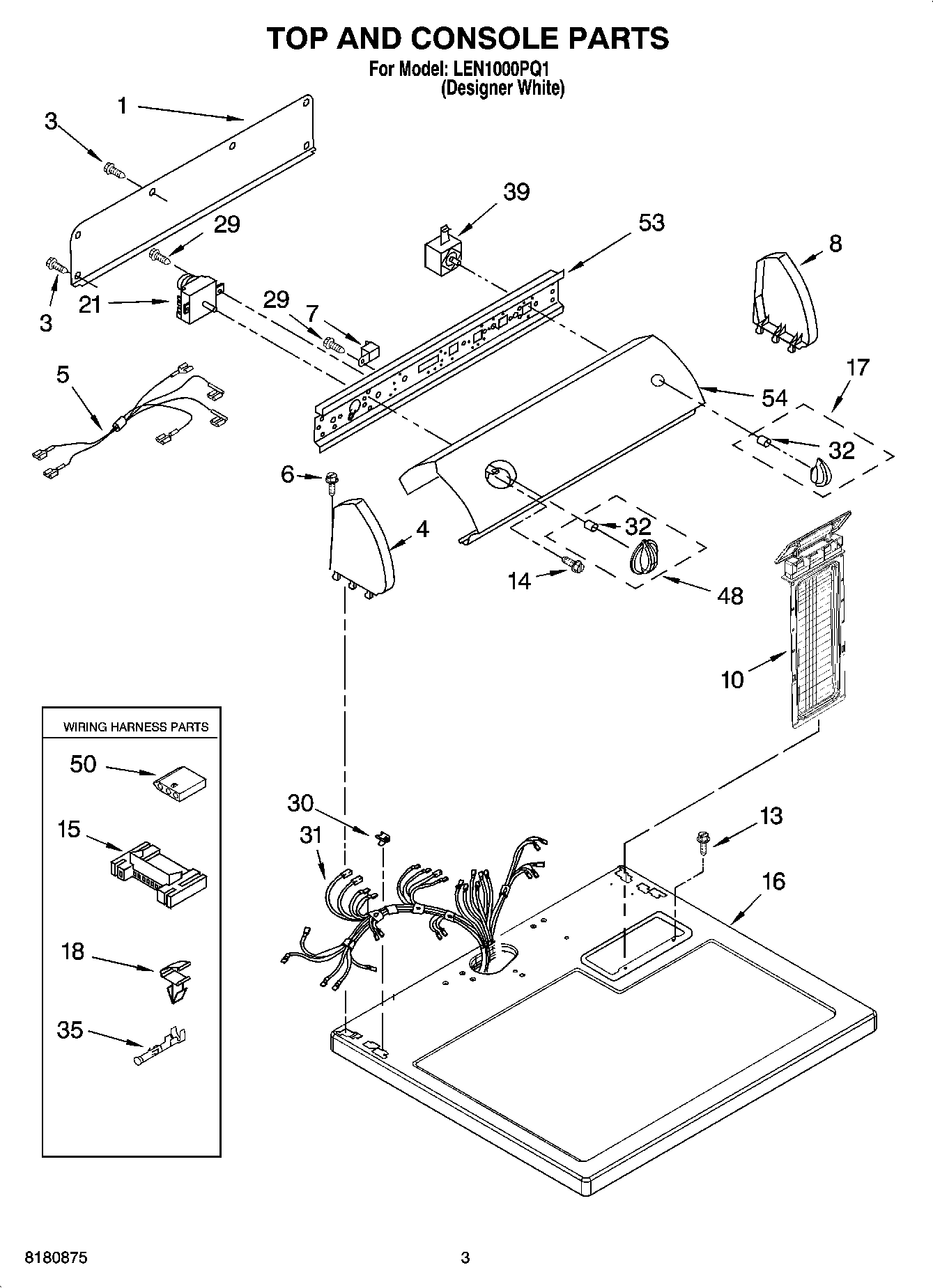

LEN1000PQ1 02 – TOP AND CONSOLE PARTS

LEN1000PQ1 02 – TOP AND CONSOLE PARTS

Written by

in

LEN1000PQ1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
3WP693995 Whirlpool Screw
5Wire, Jumper (PTS to Buzzer)
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
10WPW10717210 Whirlpool Dryer Lint Screen Filter
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17WPL 8544935
18WP3394427 Whirlpool Clip
21WP8299778 Whirlpool Timer
29WP90767 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WP8536939 Whirlpool Spring Clip
35WP94614 Whirlpool Terminal
39WP8543274 Whirlpool PTS Switch
48W10756270 Whirlpool Dryer Timer Knob
503936144 Whirlpool Connector
53Bracket, Control
54Panel, Control
