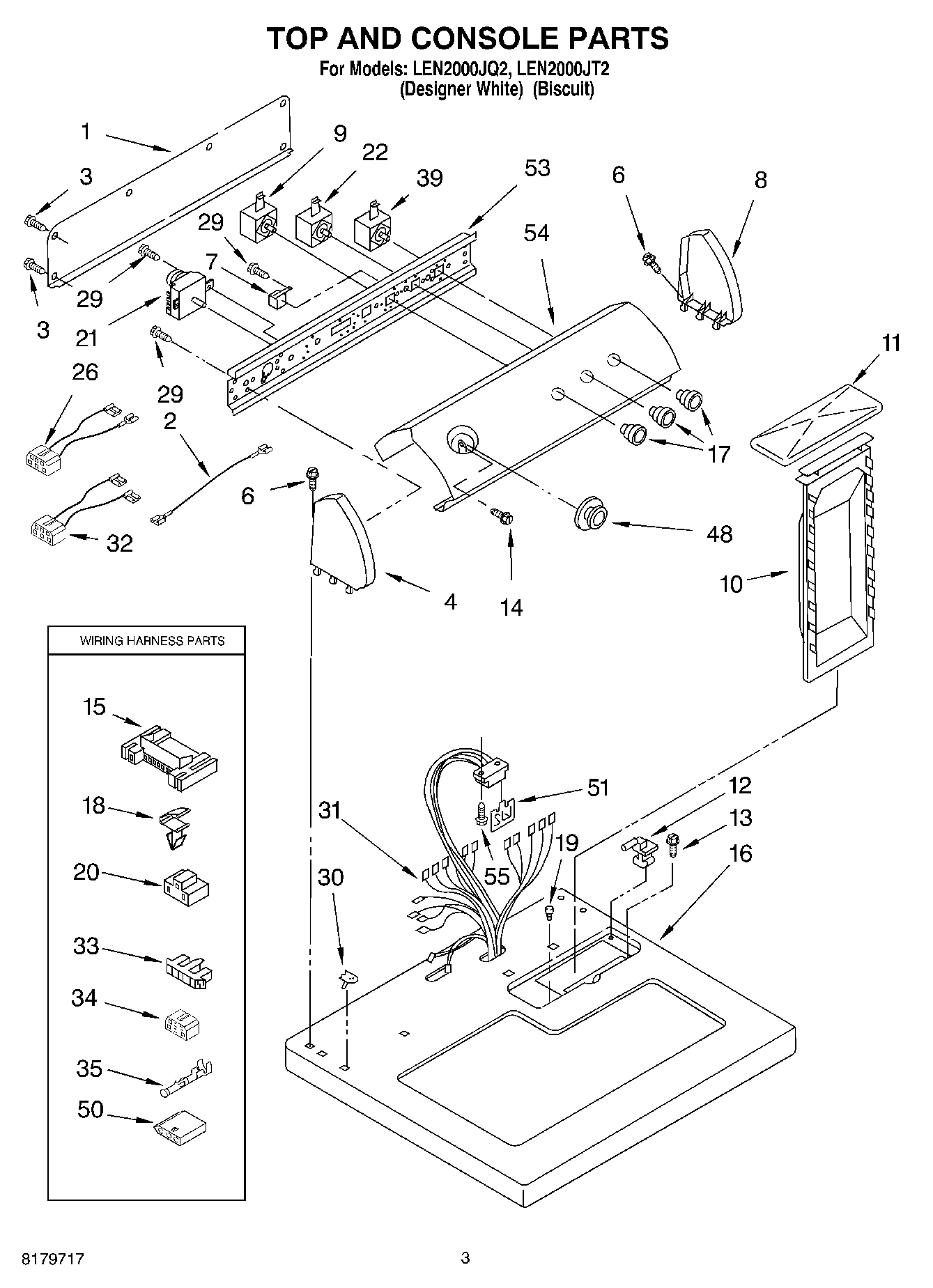

LEN2000JT2 02 – SECTION

LEN2000JT2 02 – SECTION

Written by

in

LEN2000JT2 02 – SECTION

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WPL 8271362
8W10820038 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top (Biscuit)
16Top
17WP3957799 Whirlpool Knob
173957797 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21Timer, 60 Hz.
22WP3405156 Whirlpool Switch
263397695 Whirlpool Wire Harness
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Wire, Jumper (Temperature)
33Connector, Timer
34Block, Disconnect
35WP94614 Whirlpool Terminal
39WP3398095 Whirlpool Dryer Start Relay
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
503936144 Whirlpool Connector
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
53Bracket, Control
54WPL 3977848
54Panel, Control
55SCREW
553406839 Whirlpool Drying Rack
55350938 Whirlpool Spray Gun
55799344 Whirlpool Refrigerator Paint
554392901 Whirlpool Biscuit Spray Paint
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
5572017 Whirlpool Appliance Touch-Up Paint White
554392899 Whirlpool Biscuit Touch-Up Paint
55350930 Whirlpool White Spray Paint
554392065 Whirlpool Dryer Maintenance Kit
