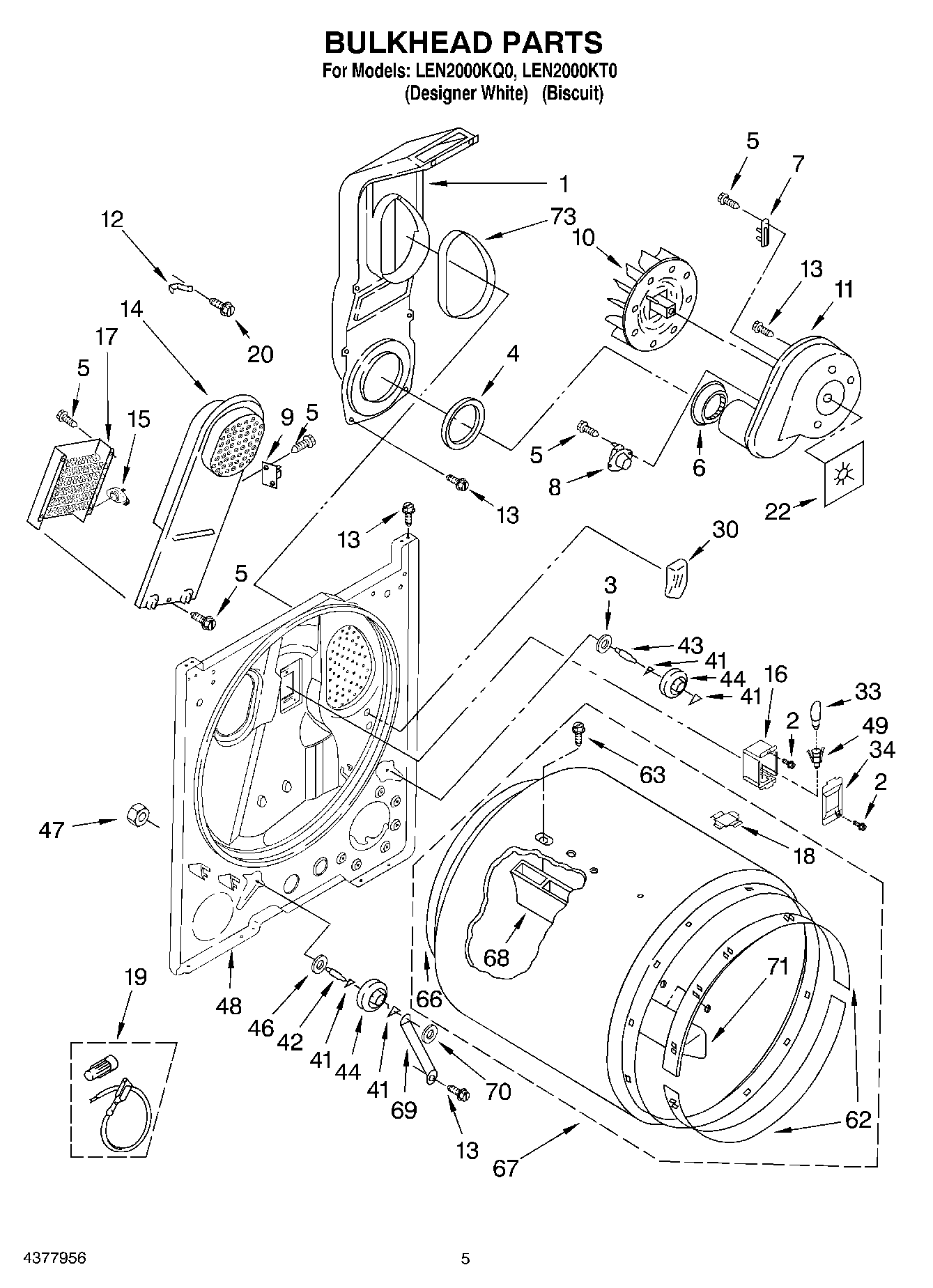

LEN2000KQ0 03 – SECTION

LEN2000KQ0 03 – SECTION

Written by

in

LEN2000KQ0 03 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
2WP488729 Whirlpool Refrigerator Door Screw
3WP3388703 Whirlpool Washer
4W11415783 Whirlpool Seal
5WP90767 Whirlpool Screw
6W11233063 Whirlpool Shield Assembly
7WP3392519 Whirlpool Dryer Thermal Fuse
8WP8318268 Whirlpool Thermostat
9279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10WP694089 Whirlpool Dryer Blower Wheel
11WP8577230 Whirlpool Housing
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3977767 Whirlpoo Dryer High Limit Thermostat
163977373 Whirlpool Bracket
17279838 Whirlpool Dryer Heating Element 5400W
188066086 Whirlpool Plug
19279457 Whirlpool Dryer Heating Element Wide Spade Connection
20WP489463 Whirlpool Refrigerator Screw
22Seal, Blower
30SENSOR KIT
33WP22002263 Whirlpool Dryer 10W Light Bulb
34W11226088 Whirlpool Lens Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W10828905 Whirlpool Bulkhead OS1
49W11700522 Whirlpool Socket
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
