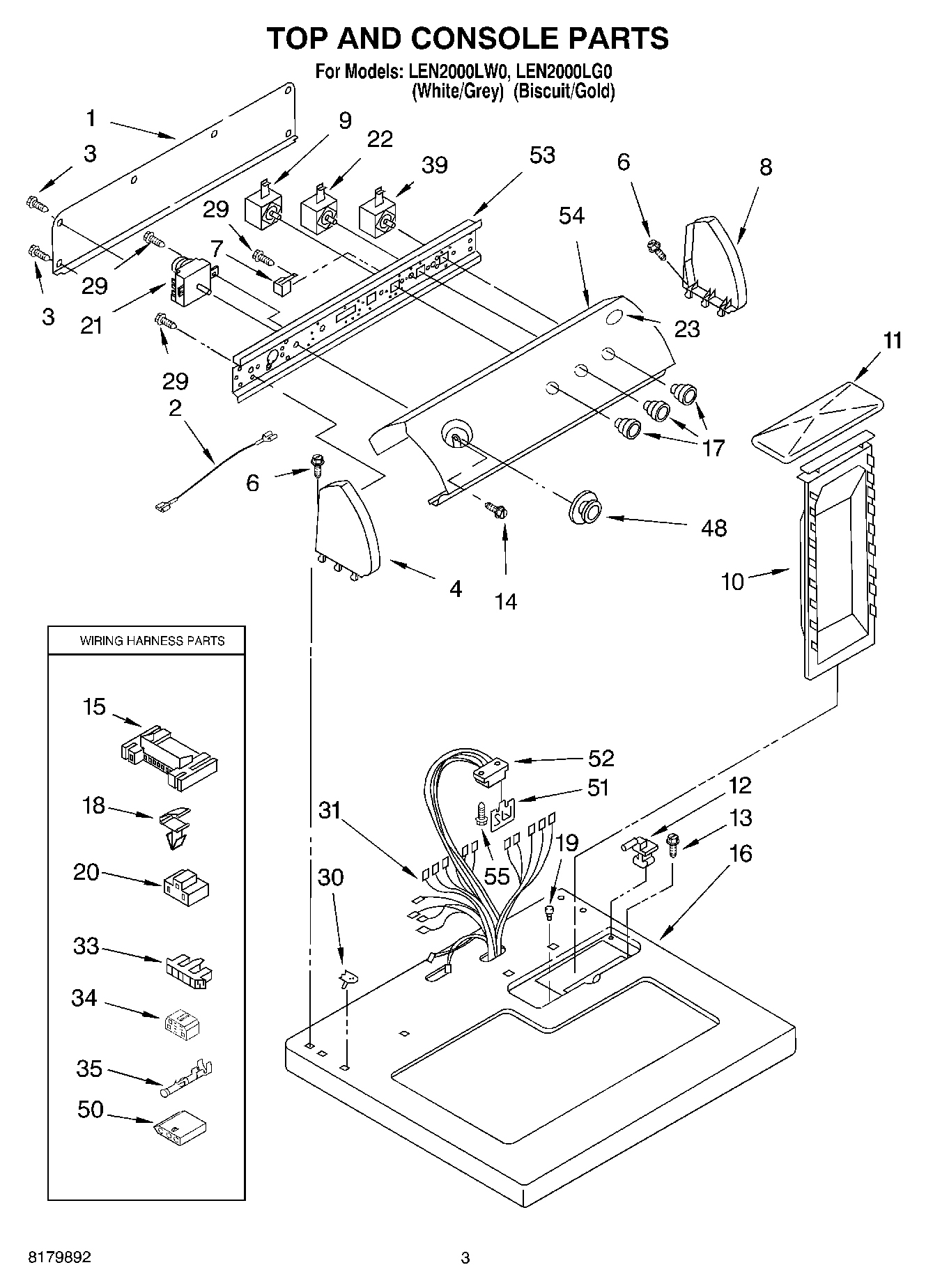

LEN2000LG0 02 – SECTION

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	Switch, Temperature
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
11	Cover, Lint Screen (Biscuit)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top (Biscuit)
17	WPL 8316545
17	KNOB
18	WP3394427 Whirlpool Clip
19	Bumper, Lint Lid
20	3401144 Whirlpool Connector
21	WP3406725 Whirlpool Timer
22	3405154 Whirlpool Primary Switch
23	Medallion
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8576506 Whirlpool Wire Harness
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398095 Whirlpool Dryer Start Relay
48	WP8557455 Whirlpool Knob Timer
48	WPL 8316549
50	3936144 Whirlpool Connector
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (Includes Illus. 23)
54	WPL 8532620
55	SCREW
