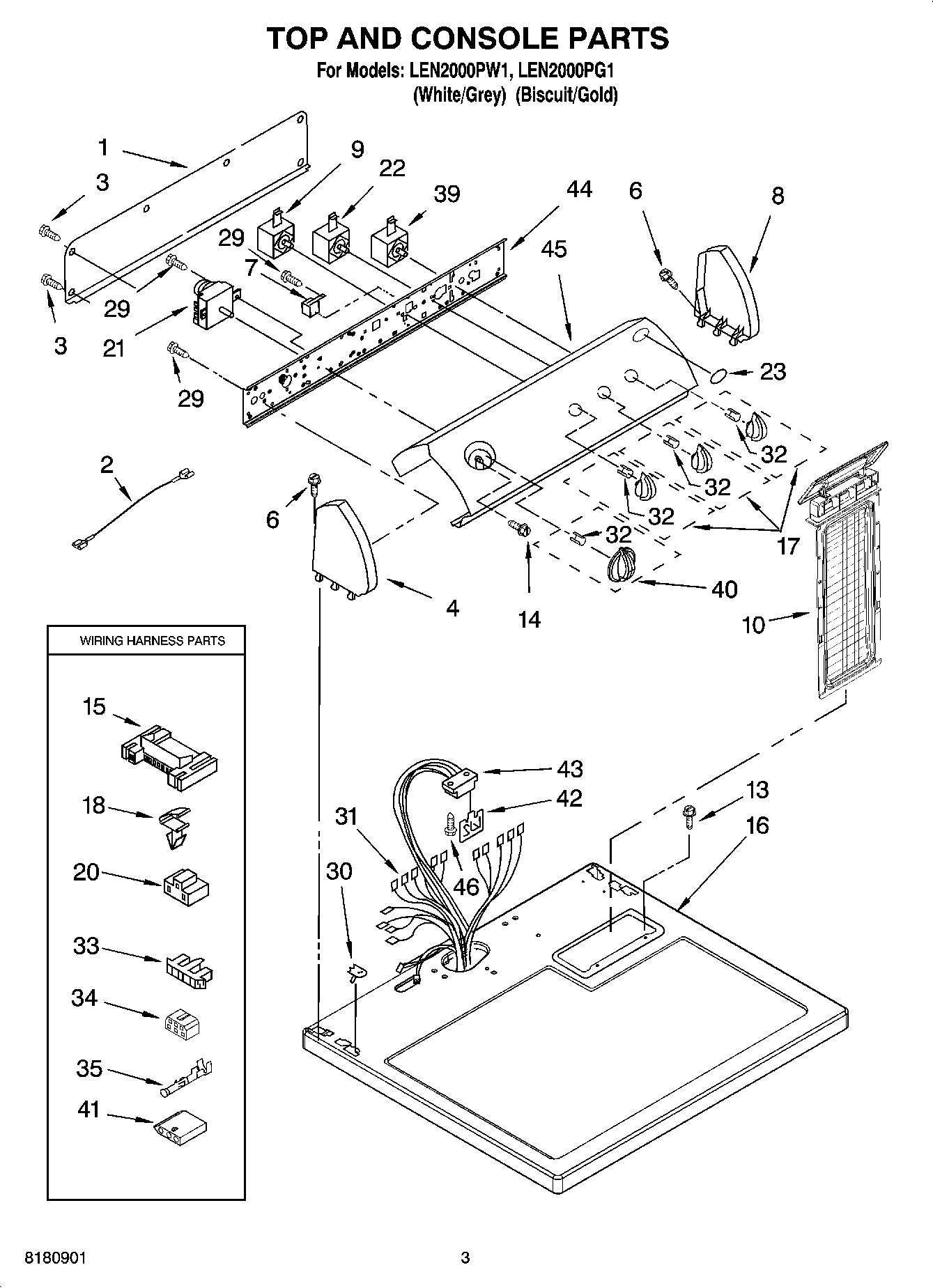

LEN2000PG1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (BIscuit)
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WPL 8271362
8	W10820038 Whirlpool Endcap
9	Switch, Temperature
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
10	Screen, Lint (Biscuit)
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
16	Top
17	WPL 8544937
17	WPL 8544938
18	WP3394427 Whirlpool Clip
20	3401144 Whirlpool Connector
21	WP3406725 Whirlpool Timer
22	3405154 Whirlpool Primary Switch
23	WPL 3400985
29	WP90767 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8576506 Whirlpool Wire Harness
32	WP8536939 Whirlpool Spring Clip
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398095 Whirlpool Dryer Start Relay
40	WPL 8544958
40	WPL 8544957
41	3936144 Whirlpool Connector
42	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
43	3391885 Whirlpool Connector
44	Bracket, Control
45	Panel, Control (Includes Illus. 23)
45	Pan
46	SCREW
