LEN3434AW0 01 – SECTION

LEN3434AW0 01 – SECTION

Written by

in

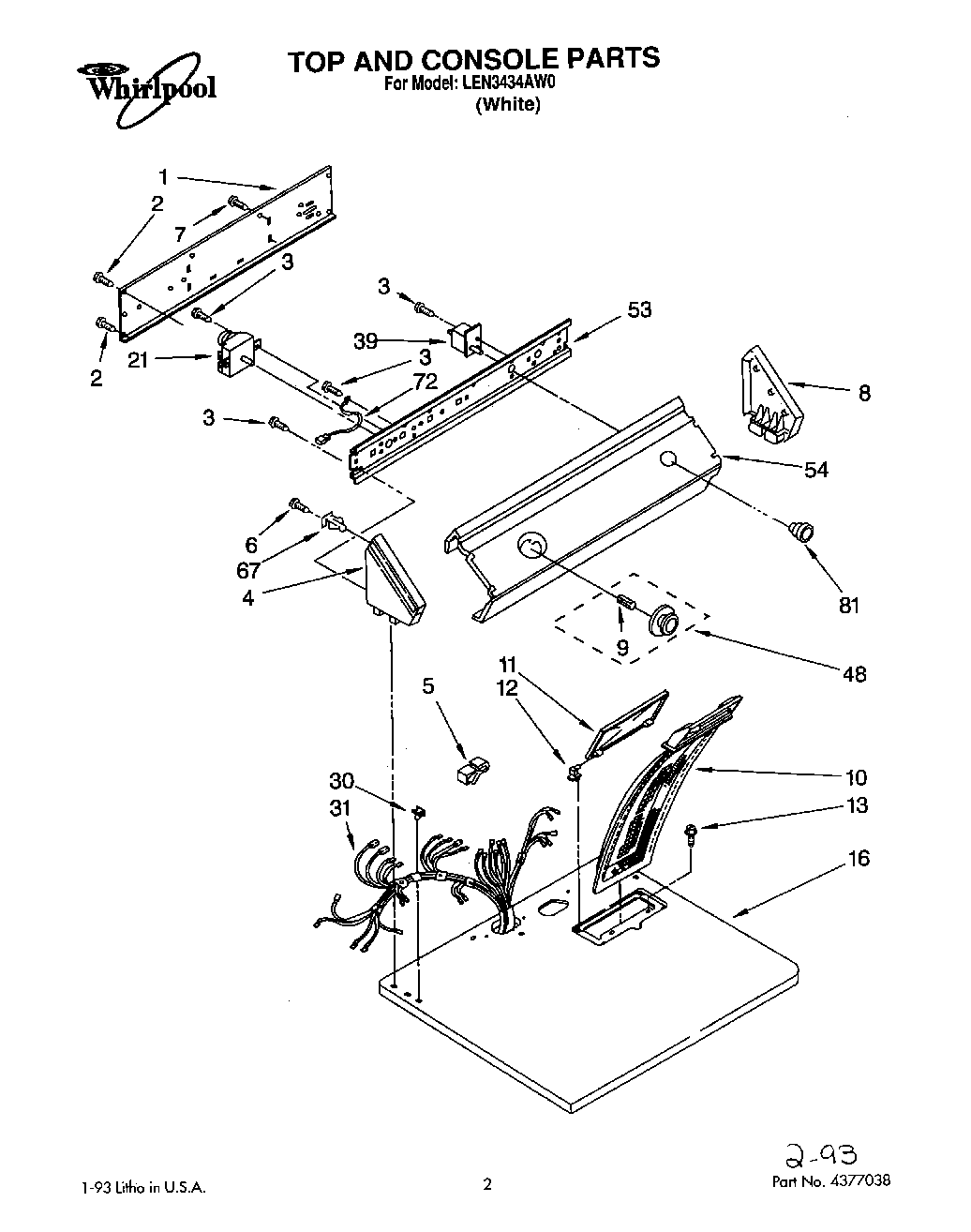

LEN3434AW0 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Use & Care Guide
Instructions, Installation
List, Service Parts
Dryer
Leveler (Thinner)
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (Black/Chrome)
5Clip, Retainer
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8WPL 3358518
9WP688805 Whirlpool Spring Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
16Top (White)
21Timer Assembly, 60 Hz.
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39Switch, Push-To-Start
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
67WP689559 Whirlpool Nut
72Wire, Ground
81Knob, Push To Start
