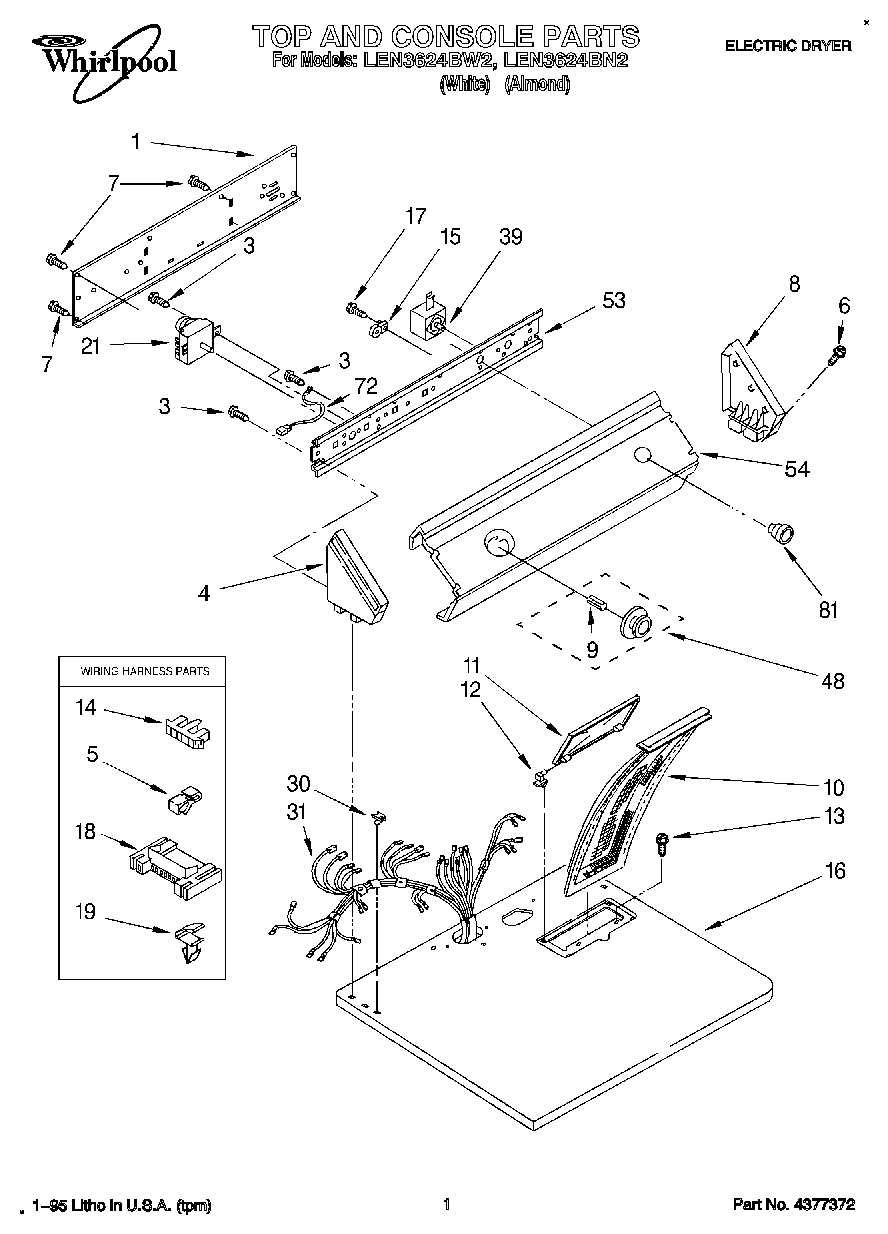

LEN3624BW2 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Wiring Diagram
Dryer
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
1Panel, Rear Console
3WPW10139210 Whirlpool Screw
4Cap, End (L.H.) (Black/Chrome)
5Clip, Retainer
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8WPL 3358518
9WP688805 Whirlpool Spring Clip
10339392V Whirlpool Dryer Lint Filter Screen
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Connector, Timer
15279872 Whirlpool Resistor
16Top (White)
16Top (Almond)
17WP488729 Whirlpool Refrigerator Door Screw
183395683 Whirlpool Connector
19WP3394427 Whirlpool Clip
21WP3976568 Whirlpool Timer
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
53Bracket, Control
54Panel, Control
72Wire, Ground
81Knob, Push To Start
