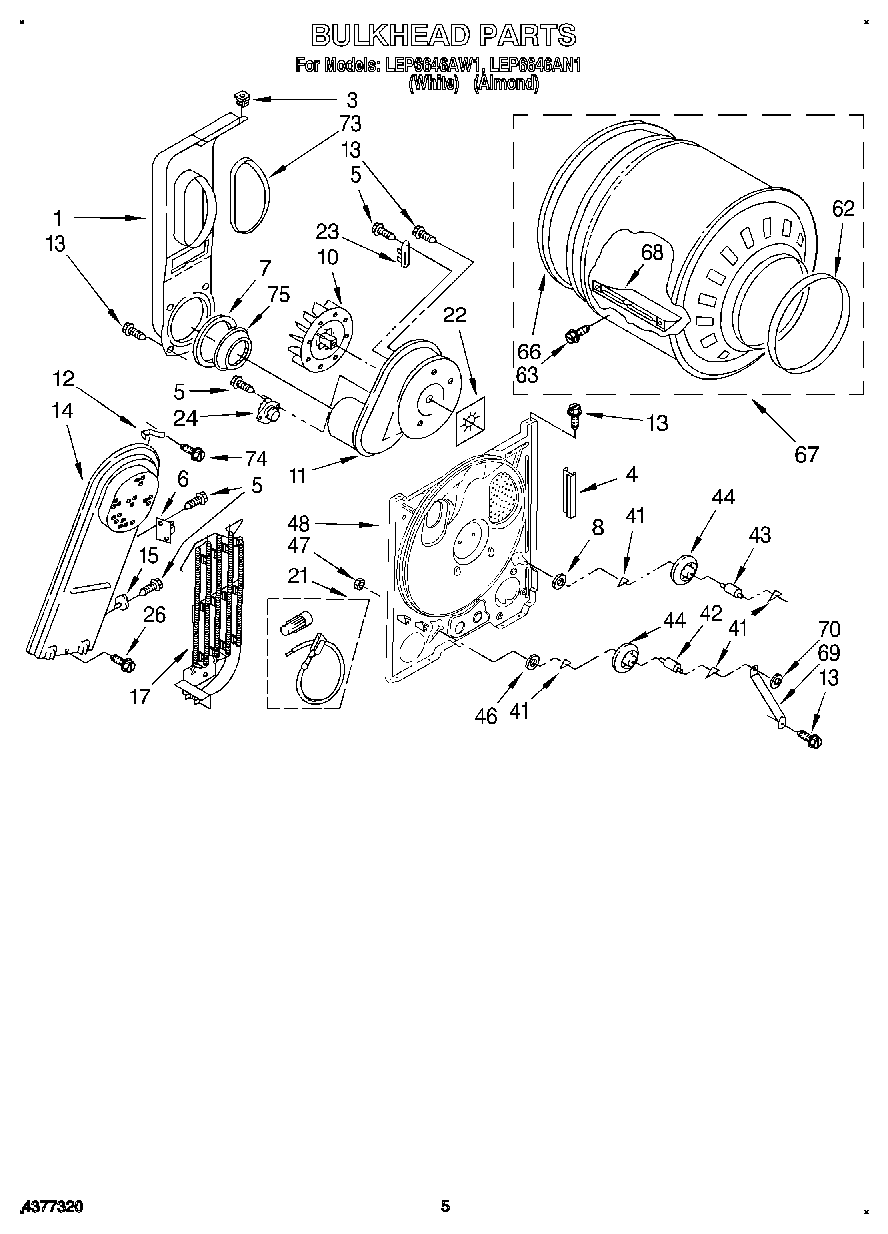

LEP6646AN1 03 – SECTION

LEP6646AN1 03 – SECTION

Written by

in

LEP6646AN1 03 – SECTION

Products

PositionProduct
1W11117429 Whirlpool Chute Assembly
398460 Whirlpool Nut
4686889 Whirlpool Pad
5WP90767 Whirlpool Screw
6279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
7W11415783 Whirlpool Seal
8WP3388703 Whirlpool Washer
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
14Box, Heater
15WP3390291 Whirlpool High Limit Thermostat
17WP4391960 Whirlpool Dryer Heating Element
21279457 Whirlpool Dryer Heating Element Wide Spade Connection
22Seal, Blower
23WP3392519 Whirlpool Dryer Thermal Fuse
24WP3387134 Whirlpool Dryer Cycling Thermostat
26SCREW
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66Seal, Rear Drum
67Drum Assembly
68WP342847 Whirlpool Drum Baffle
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
73Seal
74WP489463 Whirlpool Refrigerator Screw
75W11233063 Whirlpool Shield Assembly
