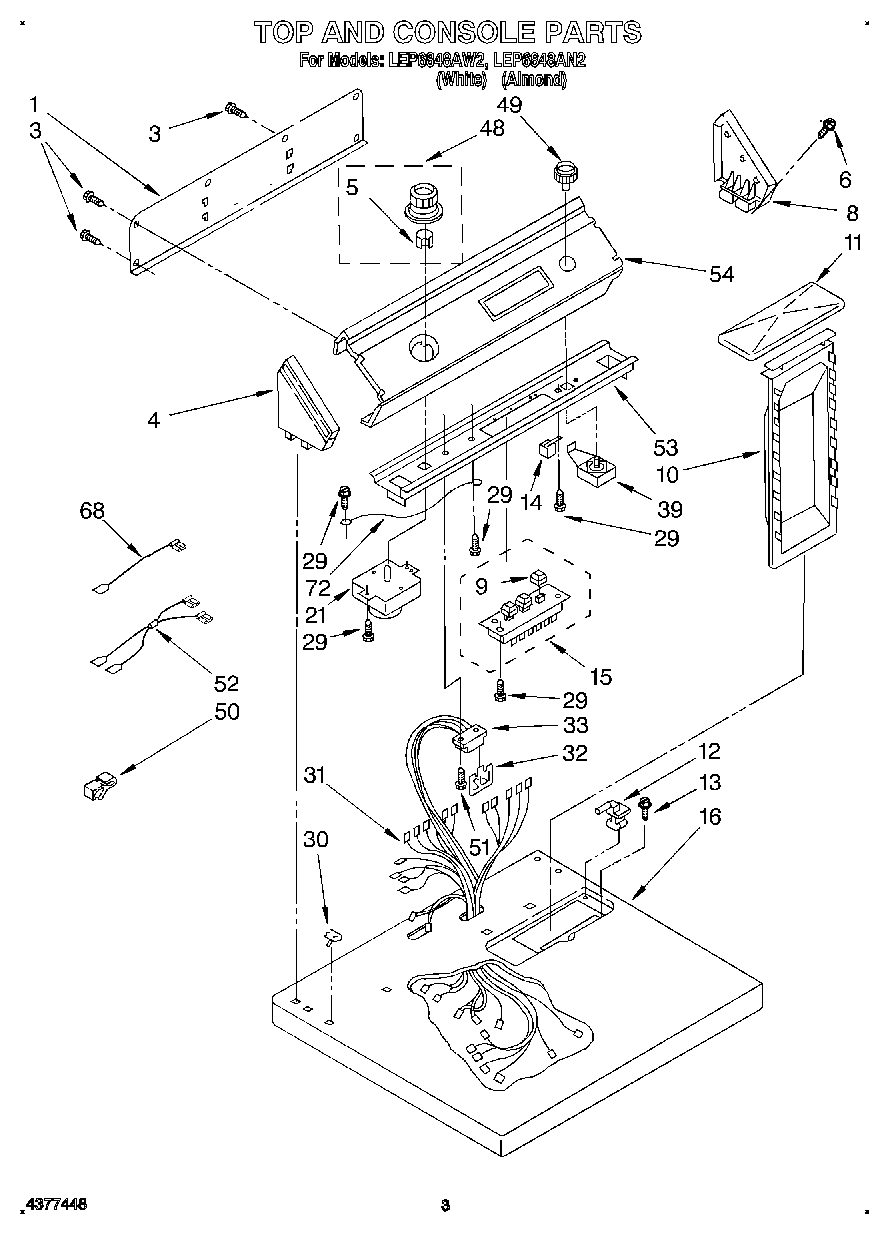

LEP6848AN2 02 – SECTION
Written by
in
LEP6848AN2 02 – SECTION
Products
Position
Product
350930 Whirlpool White Spray Paint
Instructions, Installation
Dryer
Guide, Use & Care
Almond (Uncut)
WPL LIT3401725
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
1
Panel, Rear Console
3
WP693995 Whirlpool Screw
4
Cap, End (L.H.) (White)
4
Cap, End (L.H.) (Almond)
5
WP688805 Whirlpool Spring Clip
6
WP388326 Whirlpool Screw
8
Cap, End (R.H.) (Almond)
8
Cap, End (R.H.) (White)
9
PushButton
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen (Almond)
11
Cover, Lint Screen (White)
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
WP694419 Whirlpool Buzzer Adjuster
15
Switch, 3-Position Temperature
16
Top (Almond)
16
Top (White)
21
WP3397273 Whirlpool Timer
29
WPW10139210 Whirlpool Screw
30
WP357213 Whirlpool Hinge Stopper
31
Harness, Electric
32
WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
33
3391885 Whirlpool Connector
39
WP3398094 Whirlpool Push To Start Switch
48
WP3957752 Whirlpool Knob
49
Knob, Push To Start
50
Clip, Retainer
51
SCREW
52
Wire Jumper Assembly
53
Bracket, Control
54
Panel, Control (White)
54
Panel, Control (Almond)
68
Wire, Jumper (Violet)
68
Wire, Jumper (Blue)
72
Wire, Ground
←
