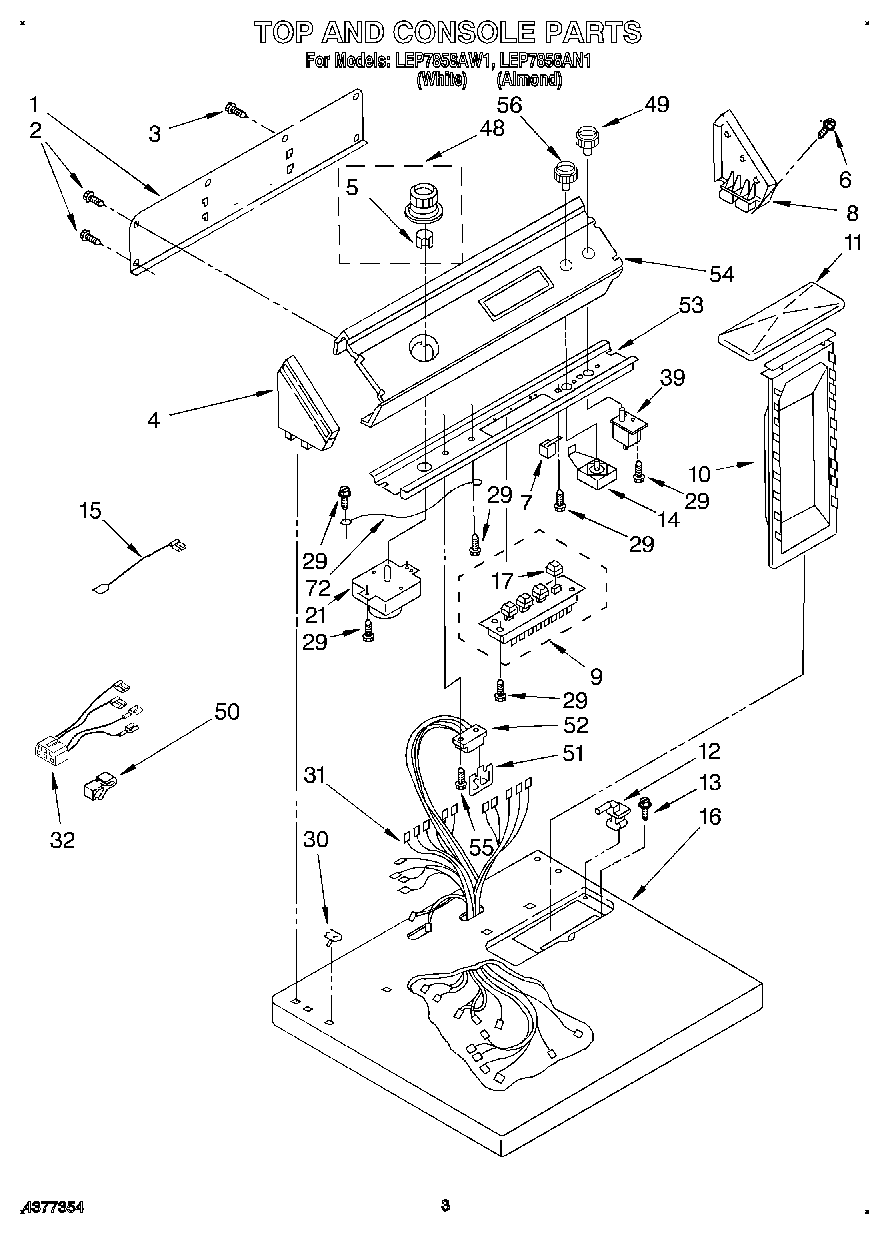

LEP7858AN1 02 – SECTION

Products

Position	Product
	Guide, Use & Care
	Instructions, Installation
	WPL LIT4377084
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	Switch, 4-Position Temperature
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Switch, Finish Guard
15	Wire, Jumper (Violet)
15	Wire, Jumper (Blue)
16	Top (White)
16	Top (Almond)
17	PushButton
21	WP3397273 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Electric
32	Wire, Jumper (Guard/Signal)
39	Relay, Push-To-Start
48	WP3957752 Whirlpool Knob
49	Knob, Push To Start
50	Clip, Retainer
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control FOR MODEL (LGP7858AW2)
54	Panel
55	SCREW
56	KNOB
72	Wire, Ground
