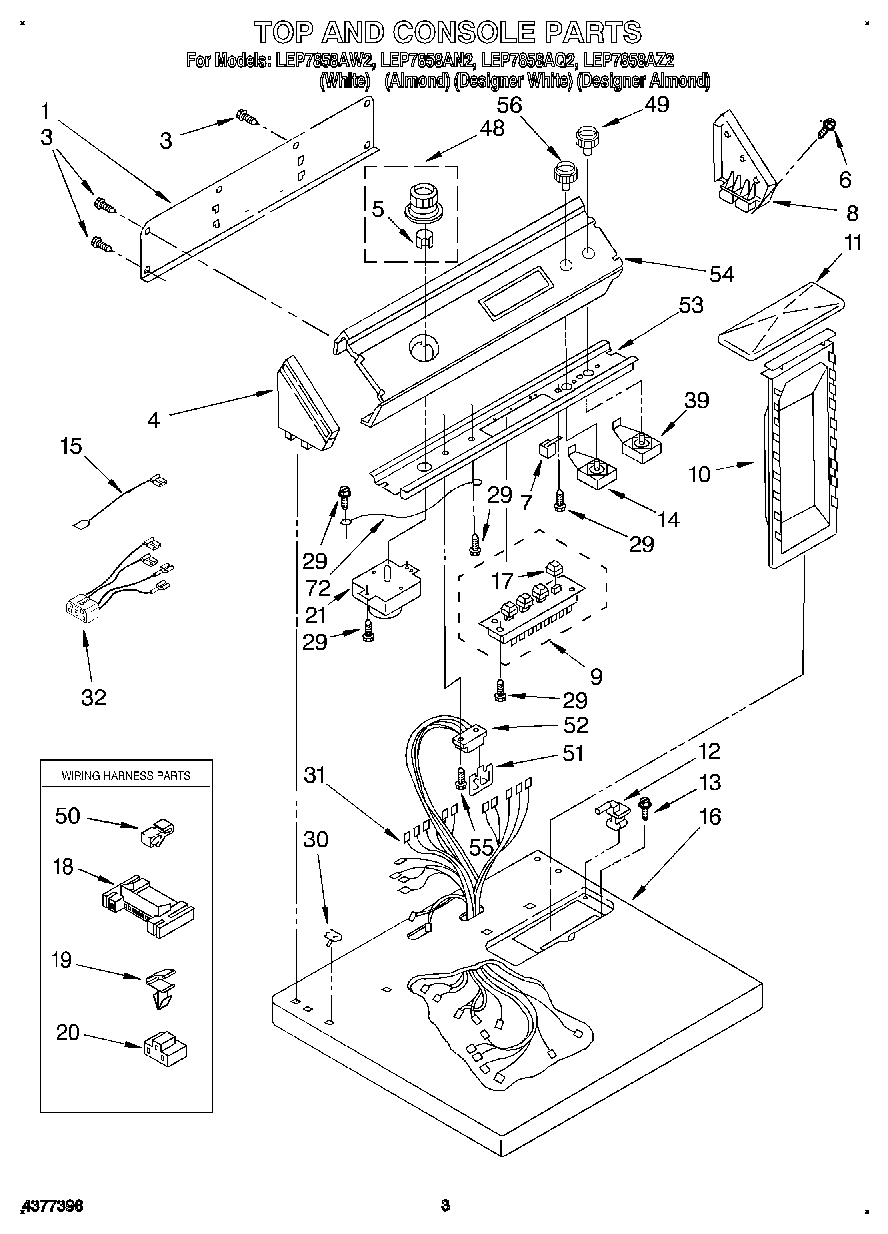

LEP7858AW2 02 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
WPL LIT3401725
Instructions, Installation
Dryer
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.) (White)
9Switch, 4-Position Temperature
9FOR MODEL LGP7858AQ2
9FOR MODEL LGP7858AZ2
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Switch, Finish Guard
15Wire, Jumper (Violet)
15Wire, Jumper (Blue)
16Top (Almond)
16Top (White)
17FOR MODEL LGP7858AQ2
17PushButton
17FOR MODEL LGP7858AZ2
183395683 Whirlpool Connector
19WP3394427 Whirlpool Clip
203401144 Whirlpool Connector
21WP3397273 Whirlpool Timer
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Electric
32Wire, Jumper (Guard/Signal)
39WP3398094 Whirlpool Push To Start Switch
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
49Knob, Push To Start
49WP3957800 Whirlpool Knob
50Clip, Retainer
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54WPL 3398526
54WPL 3398525
54Panel
54Panel, Control FOR MODEL (LGP7858AW2)
55SCREW
56KNOB
563957797 Whirlpool Knob
56WP3957796 Whirlpool Knob
72Wire, Ground
