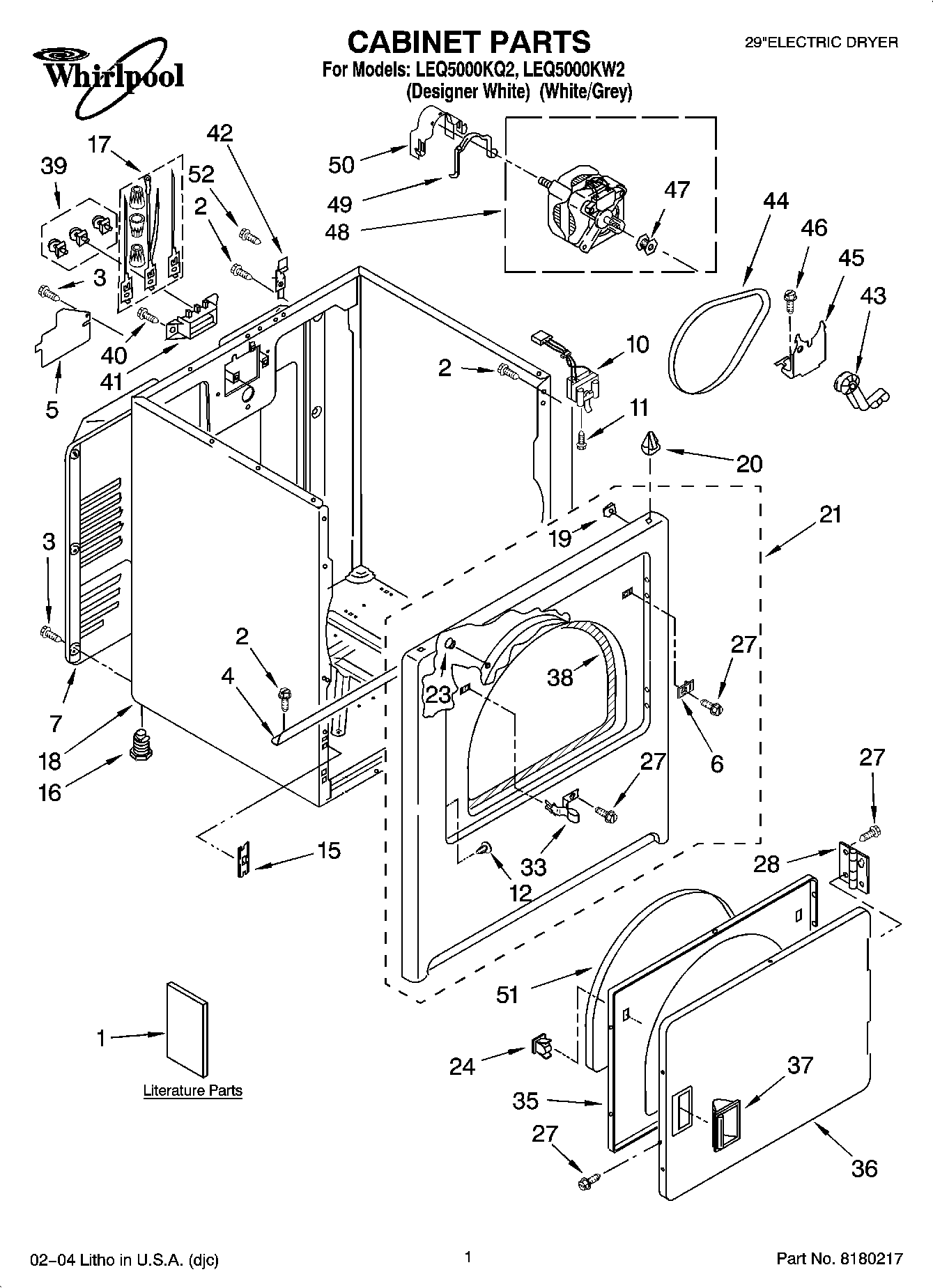

LEQ5000KQ2 01 – CABINET PARTS

Products

Position	Product
1	Dryer
1	Literature Parts (Label, Wiring Diagram)
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Sheet, Cycle Feature)
1	Literature Parts (Installation Instructions)
1	Following May Be Purchased
1	DO-IT-YOURSELF REPAIR MANUALS
1	Literature Parts (Use & Care Guide)
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
33	W11429589 Whirlpool Strike
35	WP3402341 Whirlpool Door
36	W10861227 Whirlpool Door Assembly
37	WP3405184 Whirlpool White Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	WP308685 Whirlpool Microwave Screw
41	WP3397659 Whirlpool Terminal Block
42	WP8066217 Whirlpool Hinge
43	WP691366 Whirlpool Dryer Idler Pulley Assembly
44	341241 Whirlpool Dryer Drum Belt
45	WP348780 Whirlpool Base
46	3400500 Whirlpool Screw
47	WP8066184 Whirlpool Dryer Motor Pulley
48	279827 Whirlpool Dryer Drive Motor
49	WP660658 Whirlpool Clamp
50	WP3404162 Whirlpool Clamp
51	SEAL-DOOR DRYER
52	W10850756 Whirlpool Screw
