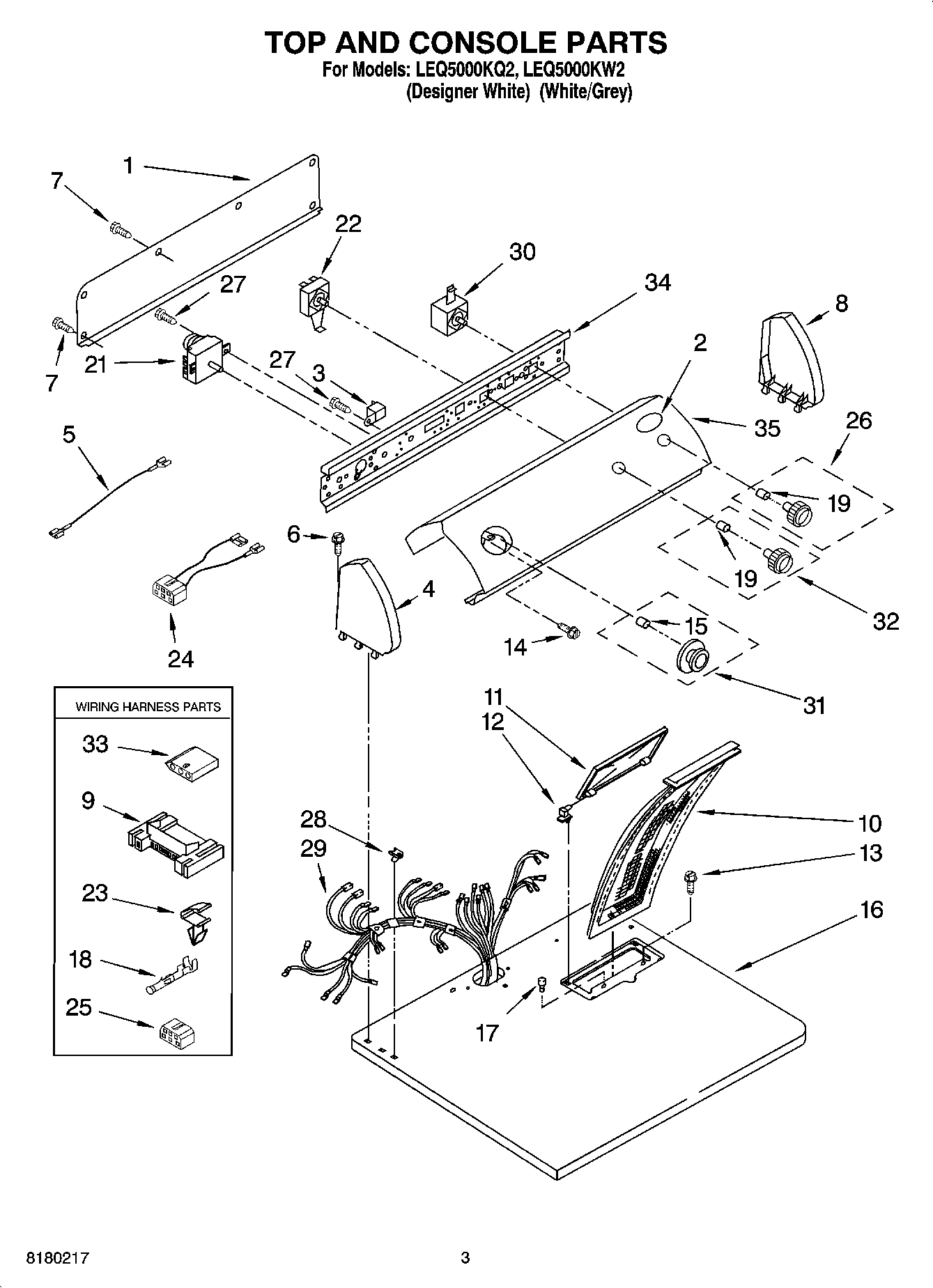

LEQ5000KW2 02 – TOP AND CONSOLE PARTS

LEQ5000KW2 02 – TOP AND CONSOLE PARTS

Written by

in

LEQ5000KW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1W10103406 Whirlpool Rear Panel
2Medallion
3WP694419 Whirlpool Buzzer Adjuster
5Wire, Jumper (Black)
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8W10820038 Whirlpool Endcap
93395683 Whirlpool Connector
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP688805 Whirlpool Spring Clip
16Top
17Bumper, Lint Lid
18WP94614 Whirlpool Terminal
19WP8536939 Whirlpool Spring Clip
21WP8299778 Whirlpool Timer
223405152 Whirlpool Switch Assembly
23WP3394427 Whirlpool Clip
24Wire, Jumper (Guard On/Off)
25Block, Disconnect
26Knob, Push-To-Start
263957804 Whirlpool Knob
27WPW10139210 Whirlpool Screw
28WP357213 Whirlpool Hinge Stopper
29Harness, Wiring
30WP3977456 Whirlpool Start Switch
31WP8557455 Whirlpool Knob Timer
31WP3957754 Whirlpool Knob Assembly
32WP3957799 Whirlpool Knob
32KNOB
333936144 Whirlpool Connector
34Bracket, Control
35350938 Whirlpool Spray Gun
35Panel, Control (White)
353404351 Whirlpool Dryer Rack
35799344 Whirlpool Refrigerator Paint
3572017 Whirlpool Appliance Touch-Up Paint White
35WPL 8532637
35W11224254 Whirlpool Test Kit
35350930 Whirlpool White Spray Paint
354392065 Whirlpool Dryer Maintenance Kit
35ACCESSORY PARTS
