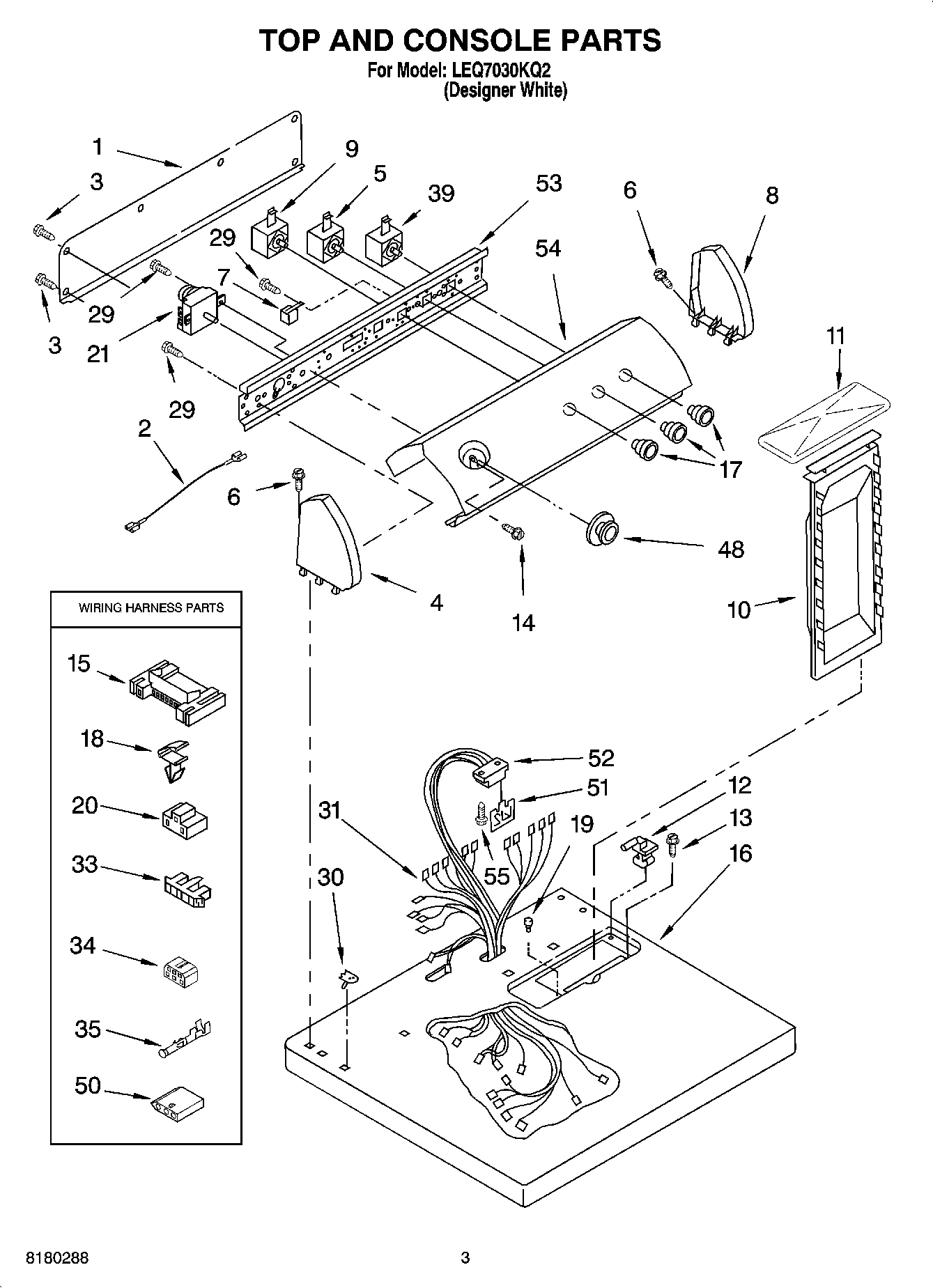

LEQ7030KQ2 02 – TOP AND CONSOLE PARTS OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
1	W10103406 Whirlpool Rear Panel
2	Wire, Jumper (Black)
3	WP693995 Whirlpool Screw
5	3405154 Whirlpool Primary Switch
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	W10820038 Whirlpool Endcap
9	8528330 Whirlpool Temperature Control Switch
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	3395683 Whirlpool Connector
16	Top
17	WP3957799 Whirlpool Knob
18	WP3394427 Whirlpool Clip
19	Bumper, Lint Lid
20	3401144 Whirlpool Connector
21	WP3406725 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	8576506 Whirlpool Wire Harness
33	Connector, Timer
34	Block, Disconnect
35	WP94614 Whirlpool Terminal
39	WP3398095 Whirlpool Dryer Start Relay
48	WP3957754 Whirlpool Knob Assembly
50	3936144 Whirlpool Connector
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Pa
55	SCREW
55	350938 Whirlpool Spray Gun
55	72017 Whirlpool Appliance Touch-Up Paint White
55	799344 Whirlpool Refrigerator Paint
55	350930 Whirlpool White Spray Paint
55	W11224254 Whirlpool Test Kit
55	4392065 Whirlpool Dryer Maintenance Kit
55	3406839 Whirlpool Drying Rack
