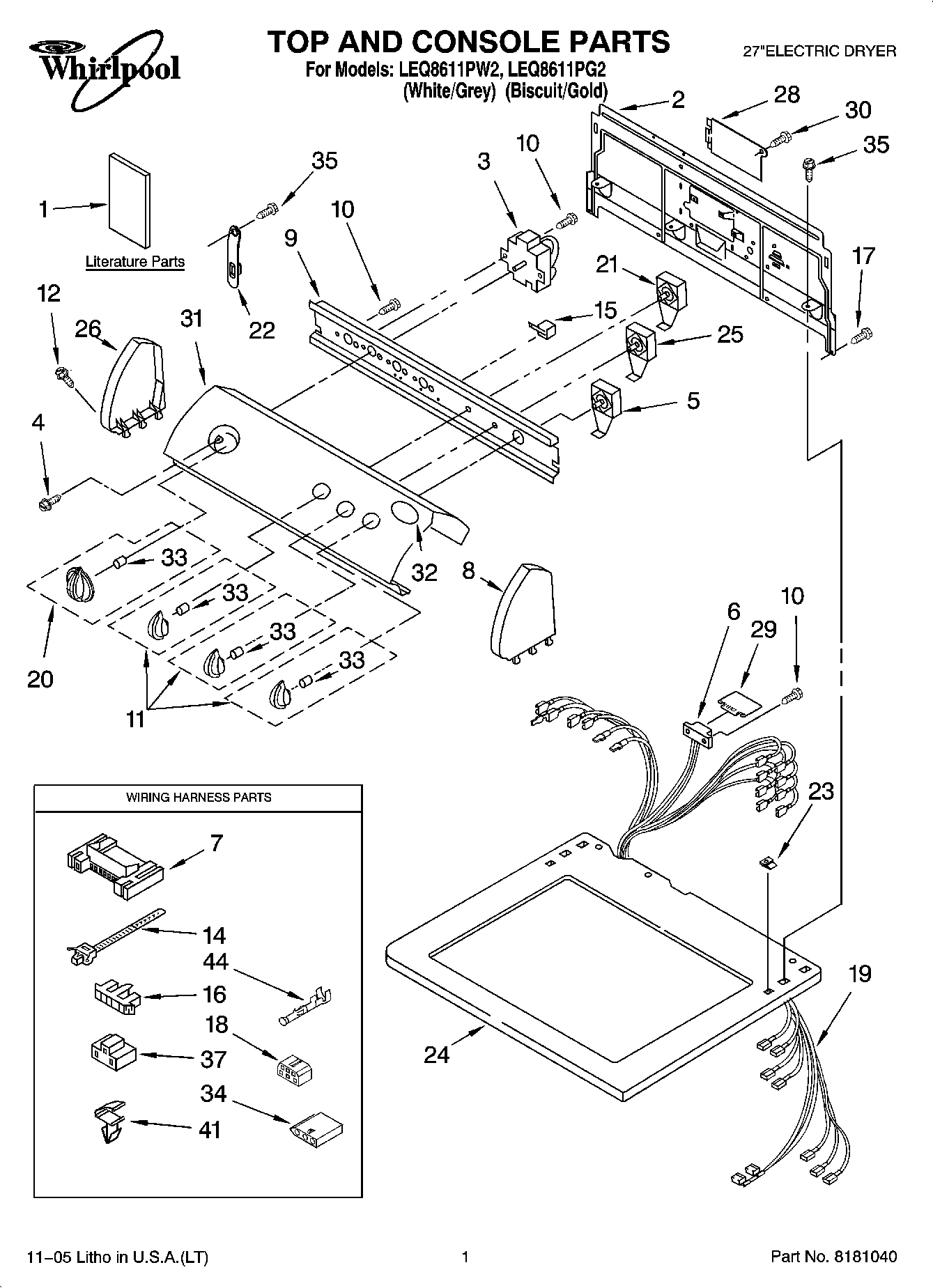

LEQ8611PG2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WPL 677818
1	Sheet, Cycle Feature
1	Wiring Diagram
1	Guide, Use & Care
1	Instructions Installation
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	285909 Whirlpool Rear Panel
3	TIMER
4	3400859 Whirlpool Screw
5	WP3398095 Whirlpool Dryer Start Relay
6	3391885 Whirlpool Connector
7	3395683 Whirlpool Connector
8	W10820038 Whirlpool Endcap
8	WPL 8271362
9	Bracket, Control
11	WPL 8544937
11	WPL 8544938
12	WP388326 Whirlpool Screw
14	WP3391018 Whirlpool Wire Tie
15	WP694419 Whirlpool Buzzer Adjuster
16	Connector, Timer
17	WP693995 Whirlpool Screw
18	Block, Disconnect
19	Harness, Electric
20	WPL 8544957
20	WPL 8544958
21	Switch, Temperature
22	WP8568314 Whirlpool Strap
23	WP357213 Whirlpool Hinge Stopper
24	Top (Biscuit)
24	Top
25	WP3405156 Whirlpool Switch
26	Cap, End (L.H.) (BIscuit)
28	WPW10119283 Whirlpool Terminal Cover
29	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30	WP90767 Whirlpool Screw
31	Panel, Control (Includes Illus. 42) (Grey)
31	Panel, Control (Includes Illus. 42) (Gold)
32	WPL 3400985
33	WP8536939 Whirlpool Spring Clip
34	3936144 Whirlpool Connector
37	3401144 Whirlpool Connector
41	WP3394427 Whirlpool Clip
44	WP94614 Whirlpool Terminal
