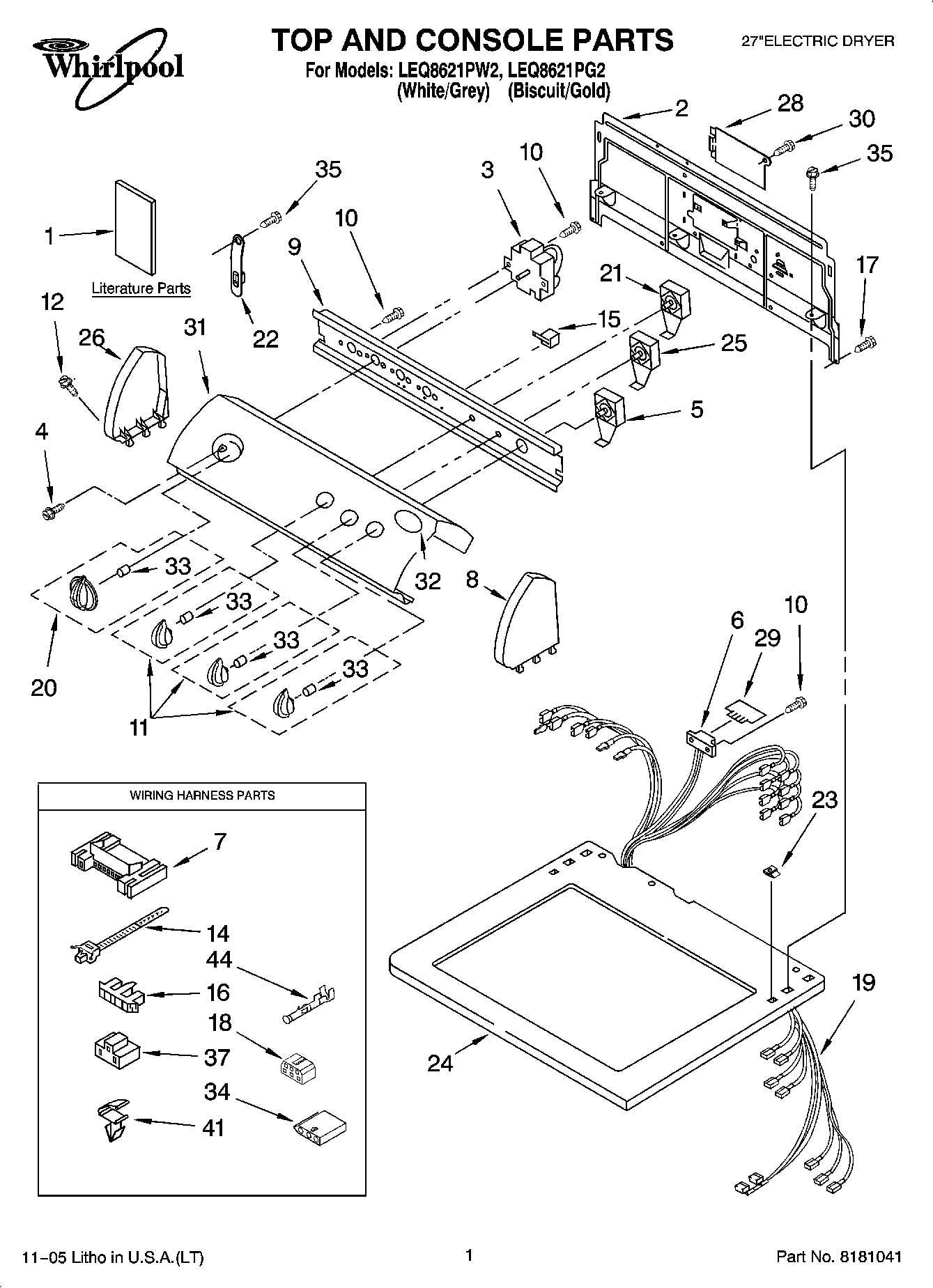

LEQ8621PG2 01 – TOP AND CONSOLE PARTS

LEQ8621PG2 01 – TOP AND CONSOLE PARTS

Written by

in

LEQ8621PG2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WPL 677818
1Instructions Installation
1Wiring Diagram
1Guide, Use & Care
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Sheet, Cycle Feature
2285909 Whirlpool Rear Panel
3TIMER
43400859 Whirlpool Screw
5WP3398095 Whirlpool Dryer Start Relay
63391885 Whirlpool Connector
73395683 Whirlpool Connector
8WPL 8271362
8W10820038 Whirlpool Endcap
9Bracket, Control
11WPL 8544938
11WPL 8544937
12WP388326 Whirlpool Screw
14WP3391018 Whirlpool Wire Tie
15WP694419 Whirlpool Buzzer Adjuster
16Connector, Timer
17WP693995 Whirlpool Screw
18Block, Disconnect
19Harness, Electric
20WPL 8544958
20WPL 8544957
21Switch, Temperature
22WP8568314 Whirlpool Strap
23WP357213 Whirlpool Hinge Stopper
24Top (Biscuit)
24Top
25WP3405156 Whirlpool Switch
26Cap, End (L.H.) (BIscuit)
28WPW10119283 Whirlpool Terminal Cover
29WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
30WP90767 Whirlpool Screw
31Panel, Control (Includes Illus. 42) (Gold)
31Panel, Control (Includes Illus. 42) (Grey)
32WPL 3400985
33WP8536939 Whirlpool Spring Clip
343936144 Whirlpool Connector
373401144 Whirlpool Connector
41WP3394427 Whirlpool Clip
44WP94614 Whirlpool Terminal
