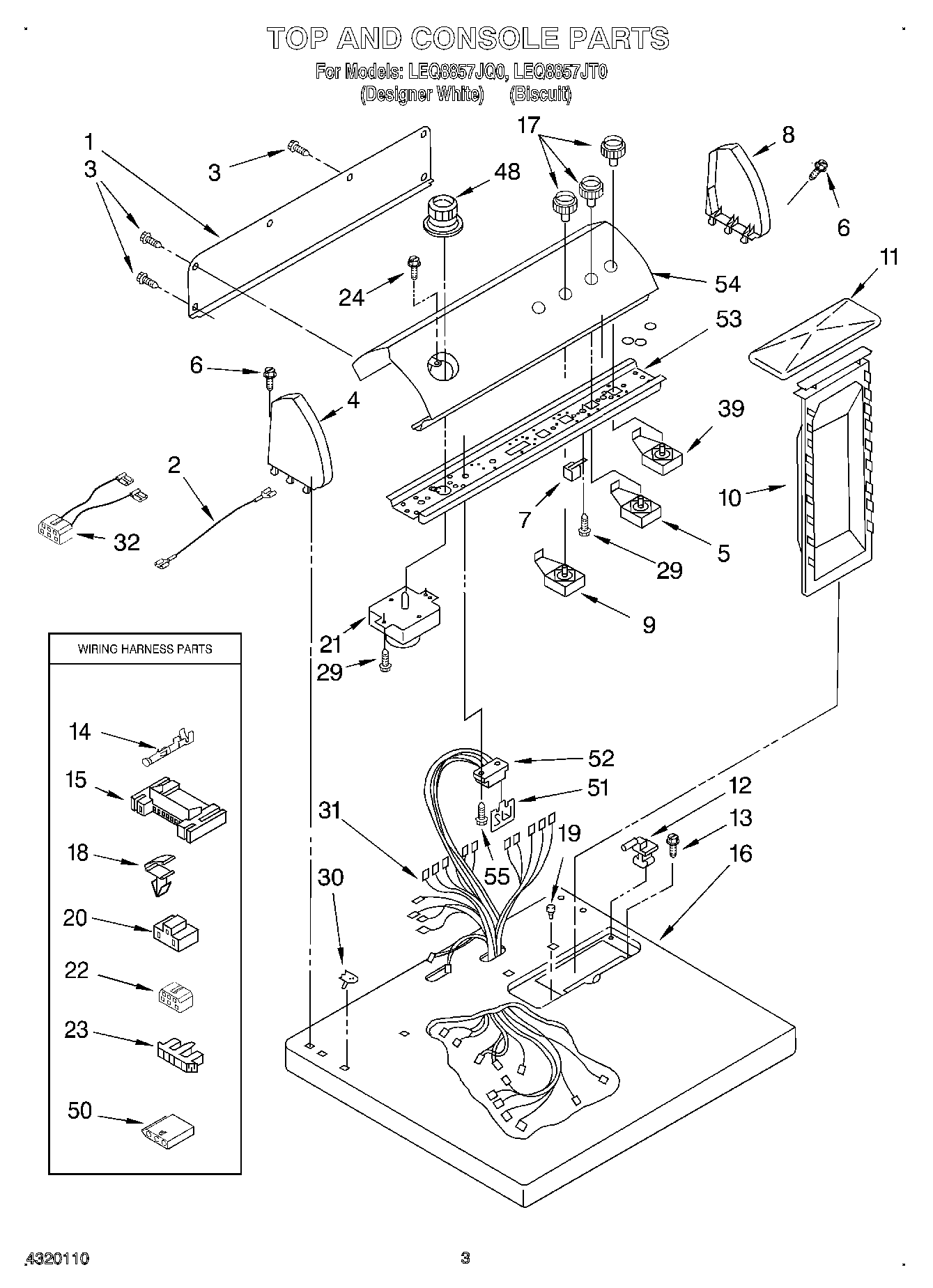

LEQ8857JQ0 02 – SECTION

LEQ8857JQ0 02 – SECTION

Written by

in

LEQ8857JQ0 02 – SECTION

Products

PositionProduct
Dryer
1W10103406 Whirlpool Rear Panel
2Wire, Jumper (Black)
3WP693995 Whirlpool Screw
4Cap, End (L.H.) (BIscuit)
53405154 Whirlpool Primary Switch
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8W10820038 Whirlpool Endcap
8WPL 8271362
9Switch, Temperature
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
16Top (Biscuit)
17WP3957799 Whirlpool Knob
173957797 Whirlpool Knob
18WP3394427 Whirlpool Clip
19Bumper, Lint Lid
203401144 Whirlpool Connector
21WP3406725 Whirlpool Timer
22Block, Disconnect
23Connector, Timer
243400859 Whirlpool Screw
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Wire-Jumper Assembly
39WP3398095 Whirlpool Dryer Start Relay
48WP3957755 Whirlpool Knob
48WP3957754 Whirlpool Knob Assembly
503936144 Whirlpool Connector
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54WPL 3977828
54Pa
5572017 Whirlpool Appliance Touch-Up Paint White
554392901 Whirlpool Biscuit Spray Paint
55350938 Whirlpool Spray Gun
554392899 Whirlpool Biscuit Touch-Up Paint
55799344 Whirlpool Refrigerator Paint
55PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
55SCREW
55350930 Whirlpool White Spray Paint
